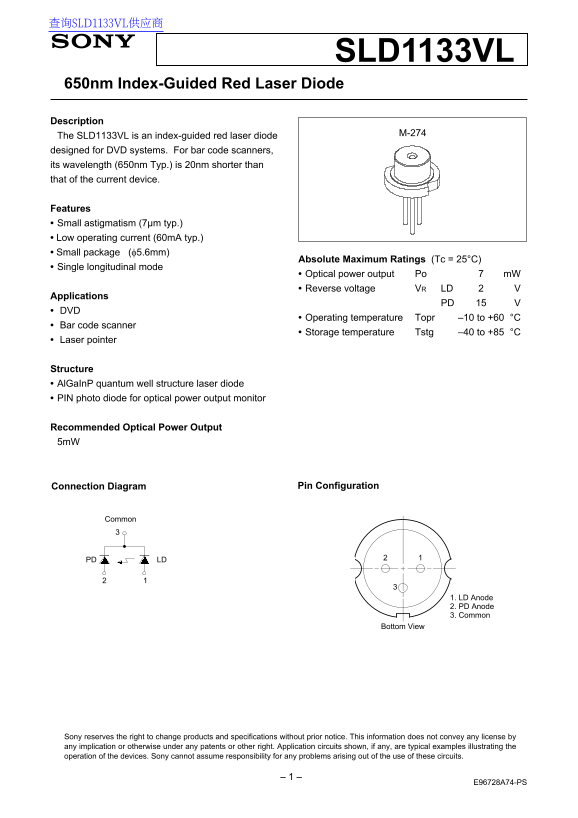

SLD1133VL
650nm Index-Guided Red Laser Diode
Description
The SLD1133VL is an index-guided red laser diode designed for DVD systems. For bar code scanners, its wavelength (650nm Typ.) is 20nm shorter than that of the current device.
Features Small astigmatism (7µm typ.) • Low operating current (60m A typ.) • Small package (φ5.6mm)
Absolute Maximum Ratings (Tc = 25°C)
Single longitudinal mode
Optical power output Po m W Reverse voltage VR LD
Applications
Operating temperature Topr –10 to +60 °C
Bar code scanner
Storage temperature Tstg –40 to +85 °C
Laser pointer
Structure Al Ga In P quantum well structure laser diode PIN photo diode for optical power output monitor
Recommended Optical Power Output 5m W
Connection Diagram Pin Configuration
Common
PD LD
1. LD Anode 2. PD Anode 3. Common
Bottom View
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
E96728A74-PS
