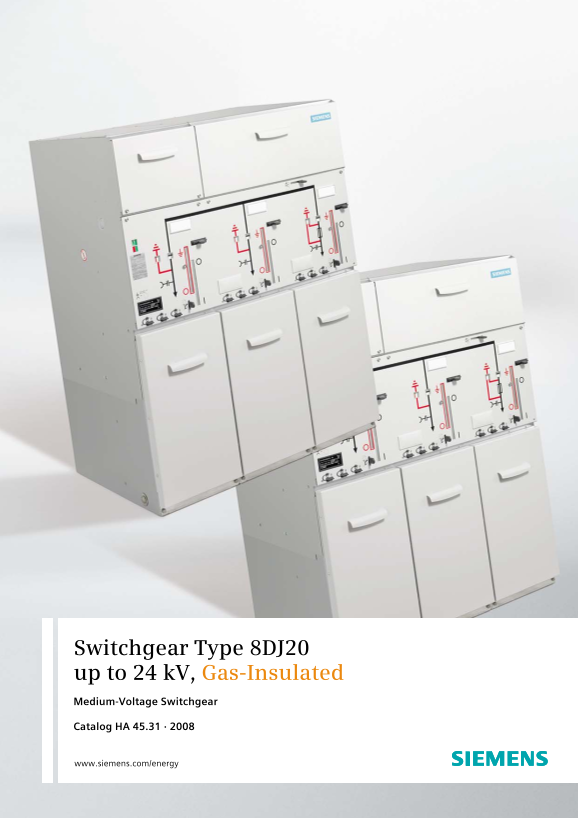

Siemens Switchgear Type 8DJ20 up to 24 kV, Gas-Insulated Owner's Manual
Summary
Discover reliable power distribution with the 8DJ20 Medium-Voltage Switchgear line. Designed for demanding industrial environments—including substations near pollution or extreme weather—this gas-insulated equipment offers safe, hermetically sealed operation up to 24 kV. This comprehensive catalog details the full product range, covering everything from basic unit requirements and connection schemes (ring-main/radial) to advanced technical data, maintenance procedures, and specialized designs for diverse installations. It is essential documentation for electrical engineers and system integrators designing robust and dependable power networks.
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 24 |
| File Size | 1.35 MB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What environments is 8DJ20 switchgear suitable for?
It can be used indoors or outdoors, functioning even under severe environmental conditions like damp, sandy, or dusty areas.
What maintenance features does this unit have?
The operation mechanism is designed to be climate-independent and maintenance-free, ensuring low life-cycle costs.
Can the switchgear handle complex installations?
Yes, it supports various setups including radial transformer panels, ring-main feeders (with 1 to 3 feeder capacity), and pact substations.
How are connections made for optimal performance?
Cable connection utilizes adaptable systems such as bolted contact (M16) and plug-in contact connection for varying load requirements.
