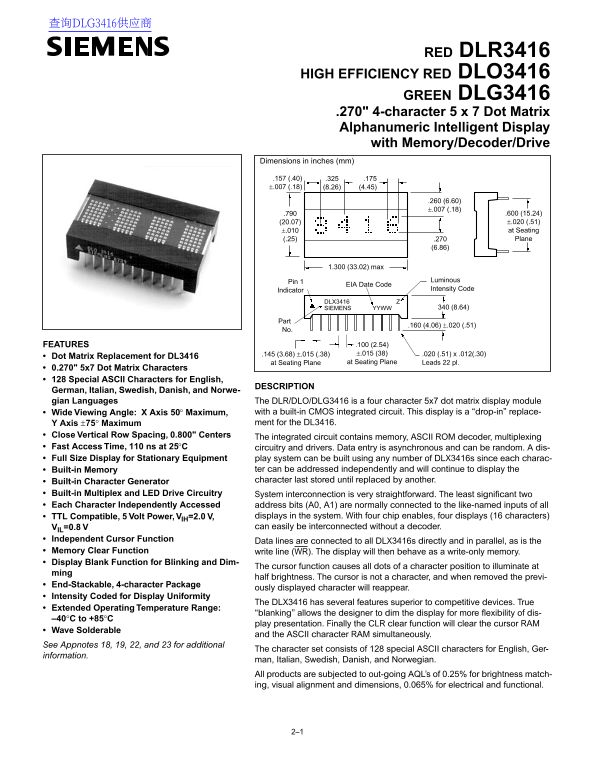

SIEMENS RED DLR3416 HIGH EFFICIENCY RED DLO3416 GREEN DLG3416 .270 4-character 5x7 Dot Matrix Alphanumeric Intelligent Display with Memory Decoder Drive

查询DLG3416供应商

RED DLR3416

HIGH EFFICIENCY RED DLO3416

GREEN DLG3416 .270" 4-character 5 x 7 Dot Matrix Alphanumeric Intelligent Display with Memory/Decoder/Drive

Dimensions in inches (mm)

.790 .600 (15.24) (20.07) ±.020 (.51) ±.010 at Seating (.25) .270 Plane

1.300 (33.02) max

Pin 1 Luminous

EIA Date Code

Indicator Intensity Code

DLX3416

SIEMENS YYWW 340 (8.64)

FEATURES .100 (2.54) .145 (3.68) ±.015 (.38) ±.015 (38) .020 (.51) x .012(.30)

Dot Matrix Replacement for DL3416

at Seating Plane at Seating Plane Leads 22 pl.

0.270" 5x7 Dot Matrix Characters 128 Special ASCII Characters for English,

DESCRIPTION

German, Italian, Swedish, Danish, and Norwe- gian Languages The DLR/DLO/DLG3416 is a four character 5x7 dot matrix display module

Wide Viewing Angle: X Axis 50 Maximum, with a built-in CMOS integrated circuit. This display is a “drop-in” replace- Y Axis Maximum ment for the DL3416.

Close Vertical Row Spacing, 0.800" Centers The integrated circuit contains memory, ASCII ROM decoder, multiplexing Fast Access Time, 110 ns at 25 circuitry and drivers. Data entry is asynchronous and can be random. A dis- Full Size Display for Stationary Equipment play system can be built using any number of DLX3416s since each charac-

Built-in Memory ter can be addressed independently and will continue to display the Built-in Character Generator character last stored until replaced by another.

Built-in Multiplex and LED Drive Circuitry System interconnection is very straightforward. The least significant two Each Character Independently Accessed address bits (A0, A1) are normally connected to the like-named inputs of all

TTL Compatible, 5 Volt Power, V =2.0 V, displays in the system. With four chip enables, four displays (16 characters)

=0.8 V can easily be interconnected without a decoder.

IL Independent Cursor Function Data lines are connected to all DLX3416s directly and in parallel, as is the Memory Clear Function write line (WR). The display will then behave as a write-only memory. Display Blank Function for Blinking and Dim-

The cursor function causes all dots of a character position to illuminate at

half brightness. The cursor is not a character, and when removed the previ-

End-Stackable, 4-character Package

ously displayed character will reappear.

Intensity Coded for Display Uniformity

The DLX3416 has several features superior to competitive devices. True

Extended Operating Temperature Range:

“blanking” allows the designer to dim the display for more flexibility of dis-

–40 C to +85

play presentation. Finally the CLR clear function will clear the cursor RAM

Wave Solderable

and the ASCII character RAM simultaneously.

See Appnotes 18, 19, 22, and 23 for additional

The character set consists of 128 special ASCII characters for English, Ger-

information.

man, Italian, Swedish, Danish, and Norwegian. All products are subjected to out-going AQL’s of 0.25% for brightness match- ing, visual alignment and dimensions, 0.065% for electrical and functional.
