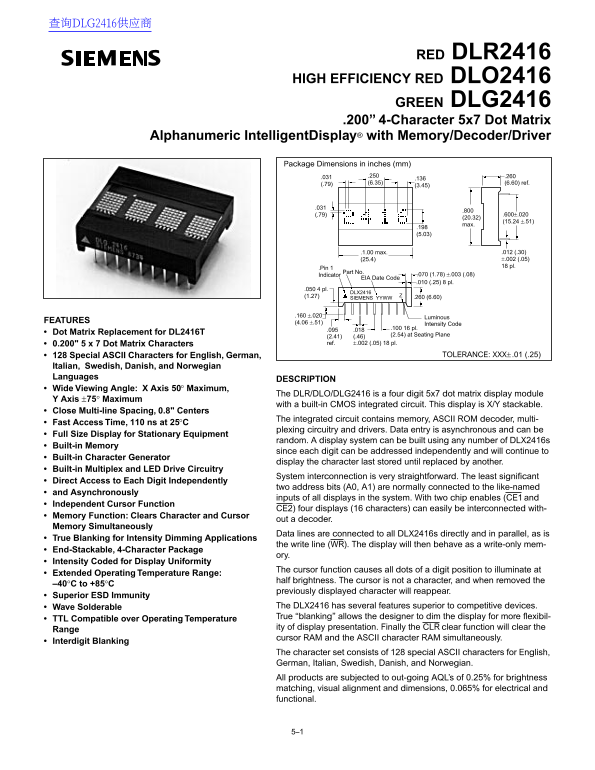

SIEMENS RED DLR2416 HIGH EFFICIENCY RED DLO2416 GREEN DLG2416 .200” 4-Character 5x7 Dot Matrix Alphanumeric IntelligentDisplay® with Memory Decoder Driver

查询DLG2416供应商

RED DLR2416

HIGH EFFICIENCY RED DLO2416

GREEN DLG2416 .200” 4-Character 5x7 Dot Matrix Alphanumeric Intelligent Display with Memory/Decoder/Driver

Package Dimensions in inches (mm)

(.79) (6.35) (6.60) ref.

.1.00 max. .012 (.30) (25.4) ±.002 (.05) 18 pl.

.Pin 1

Part No.

Indicator .070 (1.78) ±.003 (.08)

EIA Date Code

.010 (.25) 8 pl.

.050 4 pl.

DLX2416

(1.27) SIEMENS YYWW .260 (6.60)

.160 ±.020 Luminous

FEATURES (4.06 ±.51)

Intensity Code

.095 .018 .100 16 pl.

Dot Matrix Replacement for DL2416T (2.54) at Seating Plane

(2.41) (.46) 0.200" 5 x 7 Dot Matrix Characters ref. ±.002 (.05) 18 pl.

128 Special ASCII Characters for English, German, TOLERANCE: XXX± .01 (.25)

Italian, Swedish, Danish, and Norwegian Languages

DESCRIPTION

Wide Viewing Angle: X Axis 50 Maximum,

The DLR/DLO/DLG2416 is a four digit 5x7 dot matrix display module

Y Axis Maximum

with a built-in CMOS integrated circuit. This display is X/Y stackable.

Close Multi-line Spacing, 0.8" Centers

The integrated circuit contains memory, ASCII ROM decoder, multi-

Fast Access Time, 110 ns at 25

plexing circuitry and drivers. Data entry is asynchronous and can be

Full Size Display for Stationary Equipment

random. A display system can be built using any number of DLX2416s

Built-in Memory

since each digit can be addressed independently and will continue to

Built-in Character Generator

display the character last stored until replaced by another.

Built-in Multiplex and LED Drive Circuitry

System interconnection is very straightforward. The least significant

Direct Access to Each Digit Independently

two address bits (A0, A1) are normally connected to the like-named

and Asynchronously

inputs of all displays in the system. With two chip enables (CE1 and

Independent Cursor Function

CE2) four displays (16 characters) can easily be interconnected with-

Memory Function: Clears Character and Cursor

out a decoder.

Memory Simultaneously

Data lines are connected to all DLX2416s directly and in parallel, as is

True Blanking for Intensity Dimming Applications

the write line (WR). The display will then behave as a write-only mem-

End-Stackable, 4-Character Package

Intensity Coded for Display Uniformity

The cursor function causes all dots of a digit position to illuminate at

Extended Operating Temperature Range:

half brightness. The cursor is not a character, and when removed the

–40 C to +85

previously displayed character will reappear.

Superior ESD Immunity

Wave Solderable The DLX2416 has several features superior to competitive devices. True “blanking” allows the designer to dim the display for more flexibil-

TTL Compatible over Operating Temperature

ity of display presentation. Finally the CLR clear function will clear the

Range

cursor RAM and the ASCII character RAM simultaneously.

Interdigit Blanking

The character set consists of 128 special ASCII characters for English, German, Italian, Swedish, Danish, and Norwegian. All products are subjected to out-going AQL’s of 0.25% for brightness matching, visual alignment and dimensions, 0.065% for electrical and functional.
