SANYO LA4536M Data Sheet
Summary
The LA4536M is a high-performance, low noise stereo power amplifier IC engineered for portable audio applications like CD players. Offering built-in muting/power switching and excellent ripple rejection, it delivers superior sound quality with low distortion and current drain. This manual serves as a comprehensive technical resource for audio engineers and designers, detailing electrical specifications, operating parameters, and application circuit diagrams required for reliable product integration.

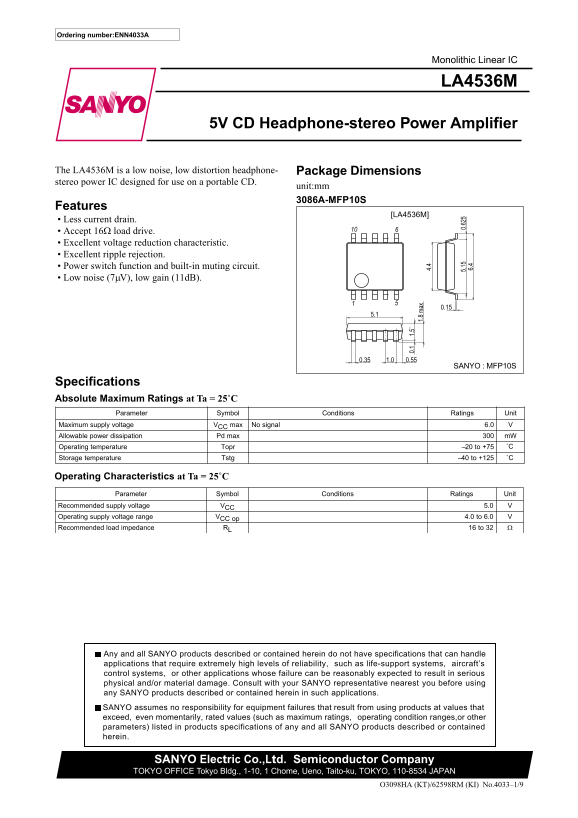

Page 1 Text Content
Ordering number:ENN4033A
Monolithic Linear IC
LA4536M
5V CD Headphone-stereo Power Amplifier
The LA4536M is a low noise, low distortion headphone- Package Dimensions stereo power IC designed for use on a portable CD.
unit:mm 3086A-MFP10S
Features
[LA4536M]
• Less current drain. Accept 16Ω load drive. • Excellent voltage reduction characteristic. Excellent ripple rejection. Power switch function and built-in muting circuit. Low noise (7µV), low gain (11d B).
SANYO : MFP10S
Specifications Absolute Maximum Ratings at Ta = 25˚C
retemara P lobmy S snoitidno C 0. sgnita R 1. 5˚ tin U
1. ax
egatlovylppusmumixa M xam langiso N 0.6
noitapissidrewopelbawoll A xamd P Wm
erutarepmetgnitarep O rpo T 57+ot02– ˚C erutarepmetegarot S gts T 521+ot04– ˚C
Operating Characteristics at Ta = 25˚C
retemara P lobmy S snoitidno C sgnita R tin U egatlovylppusdednemmoce R 0.5
egnaregatlovylppusgnitarep O 0.6ot0.4
po CC
ecnadepmidaoldednemmoce R RL 23ot61
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications. SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other parameters) listed in products specifications of any and all SANYO products described or contained herein.
SANYO Electric Co.,Ltd. Semiconductor Company TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
O3098HA (KT)/62598RM (KI) No.4033–1/9
Page Summary Contents For SANYO LA4536M Data Sheet
Manual Details
| Brand | Sanyo |
|---|---|
| Pages | 9 |
| File Size | 110.73 KB |
| Published | May 28, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operating voltage range for this amplifier?
The recommended supply voltage is 5V.0 CC, but the operational range is 4.0 V to 6.0 V.
How do I use the mute function on the LA4536M chip?
The muting function turns on when Pin 10 (MT/SW) is connected to GND and turns off by applying VCC to this pin.
What load impedance should be used with this amplifier?
It recommends a load impedance between 16 Ω and 32 Ω for proper operation.
Can this chip be used in life-support or aircraft control systems?
No. SANYO advises against using it in applications requiring extremely high reliability, such as life-support or aircraft's control systems.
