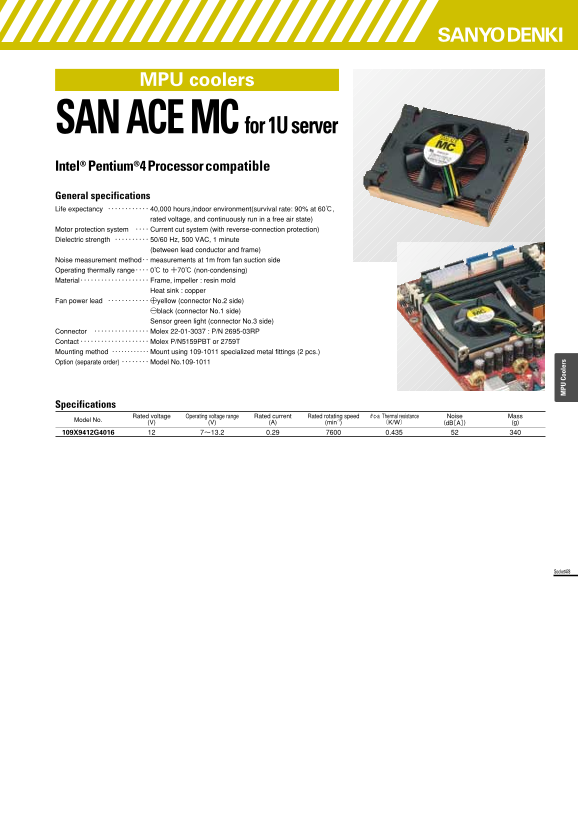

MPU coolers
SAN ACE MC for 1U server Intel® Pentium®4Processor compatible General specifications Life expectancy ‥‥‥‥‥‥40,000 hours,indoor environment(survival rate: 90% at 60℃,
rated voltage, and continuously run in a free air state)
Motor protection system ‥‥Current cut system (with reverse-connection protection) Dielectric strength ‥‥‥‥‥50/60 Hz, 500 VAC, 1 minute
(between lead conductor and frame)
Noise measurement method‥measurements at 1m from fan suction side Operating thermally range‥‥0℃ to ＋70℃ (non-condensing) Material‥‥‥‥‥‥‥‥‥‥Frame, impeller : resin mold
Heat sink : copper
Fan power lead ‥‥‥‥‥‥○＋yellow (connector No.2 side)
○－black (connector No.1 side) Sensor green light (connector No.3 side)
Connector ‥‥‥‥‥‥‥‥Molex 22-01-3037 : P/N 2695-03RP Contact‥‥‥‥‥‥‥‥‥‥Molex P/N5159PBT or 2759T Mounting method ‥‥‥‥‥‥Mount using 109-1011 specialized metal fittings (2 pcs.) Option (separate order) ‥‥‥‥Model No.109-1011
Specifications
Rated voltage Operating voltage range Rated current Rated rotating speed θc-a Thermal resistance Noise Mass
Model No.
(V) (V) (A) (min-1) （K/W） (d B［A］) (g)
PU oo le rs
Socket478
