Page 1

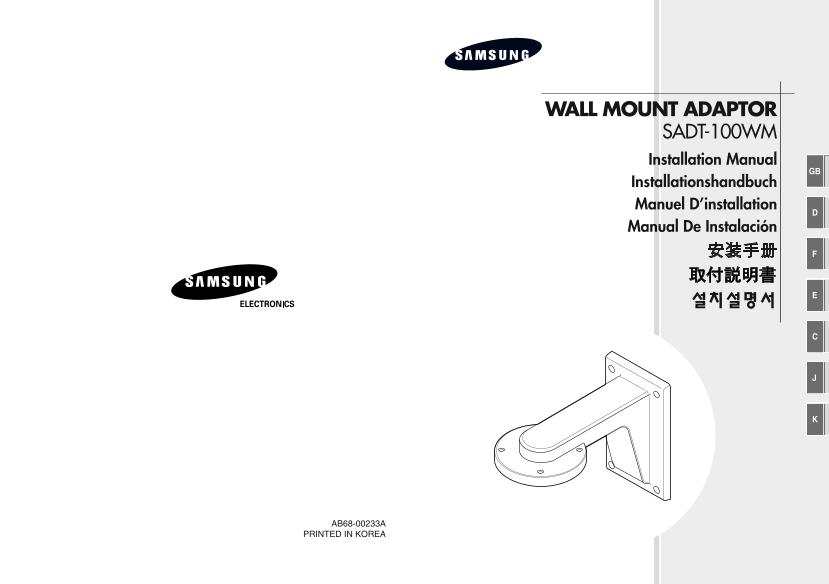

WALL MOUNT ADAPTOR SADT-100WM Installation Manual Installationshandbuch Manuel D’installation Manual De Instalación AB68-00233A PRINTED IN KOREA
Page 2
Summary Installation The Wall Mounted Adaptor (SADT-100WM) is used for the Select a location that will support four times the total weight of the installation of the Smartdome Camera (indoor or outdoo...
Page 3
Fix the Back Plate to the Wall Mounted Adaptor using six Separate the dummy plate from screws (M3 x L6). (Taking care that the gasket remains in the housing top by removing the Screw (BH M4 X L22) con...
Page 4
Product Specifications Location for use: Indoors or outdoors Location of installation: Wall or vertical structure External dimensions: See the diagram Weight: 800g Material: Aluminum Suitable Temperat...
Page 5
Zusammenfassung Installation Der Wandadapter (SADT-100WM) dient zur Installation der Wählen Sie eine Position, die das vierfache Gesamtgewicht (ca. 32 Smartdome Camera (Innenraum- oder Außengehäuse) a...
Page 6
Befestigen Sie die Rückplatte mit sechs Schrauben am Nehmen Sie die Abdeckplatte vom Wandadapter (M3x L6). (Achten Sie darauf, dass die Dichtung Gehäuseoberteil ab, indem Sie die in Kontakt mit dem Wa...
Page 7
Produktspezifikationen Verwendungsort: Innenräume oder im Freien Ort der Installation: Wand oder eine vertikale Struktur Äußere Abmessungen: Siehe Diagramm Gewicht: 800 g Material: Aluminium Geeignete...
Page 8
Résumé Installation L’Adaptateur de Montage Mural (SADT-100WM) s’utilise pour Choisissez un endroit capable de supporter quatre fois le poids installer la Caméra Smartdome (logement intérieur ou extér...
Page 9
Fixez la Bride de Fixation Murale sur l’Adaptateur de Montage Séparez la plaque d’assise de la Mural en utilisant six vis (M3 x L6) (En prenant soin de vérifier partie supérieure du logement en que le...
Page 10
Caractéristiques Du Produit A utiliser: A l’intérieur ou à l’extérieur A utiliser: Sur les murs ou les structures verticales Dimensions externes: Voir le schéma Poids: 800g Matériau: Aluminium Gamme d...
Page 11
Resumen Instalación El Adaptador de Montaje en Pared (SADT-100WM) se usa para la Seleccione un sitio que sea capaz de soportar cuatro veces el instalación de la Cámara Smartdome (con cubierta para int...
Page 12
Separe la placa de prueba de la Fije la Placa Trasera al Adaptador de Montaje en Pared usando tapa de la cubierta sacando los seis tornillos (M3 x L6). (Teniendo cuidado de que el empaque dos tornillo...
Page 13
Especificaciones Del Producto Ubicación para su uso: Interiores o exteriores Sitio para instalación: Pared o estructura vertical Dimensiones externas: Ver el diagrama Peso: 800g Material: Aluminio Ran...
Page 17
WALL MOUNT ADAPTOR(SADT-100WM) SMARTDOME CAMERA OUTDOOR HOUSING WALL MOUNT ADAPTOR BACK PLATE CORNER MOUNT ADAPTOR (SADT-110CM) POLE MOUNT ADAPTOR(SADT-100PM) WALL MOUNT ADAPTOR OUTDOOR HOUSING SMARTD...
Page 18
HOUSING DUMMY BACK PLATE WALL MOUNT ADAPTOR PLATE SCREW2 GASKET WALL MOUNT ADAPTOR GASKET (BH M4 x L22) GASKET HOUSING TAPPING HOLE WALL MOUNT ADAPTOR BOSS HOUSING SCREW(BH M4 HOUSING ADAPTOR WALL MOU...
Page 19
size 800g (FH M3 x L6) (BH M4 x L22)...................... (PG-13.5)....................2
Page 20
개요 설치 WALL MOUNT ADAPTOR(SADT-100WM) 는 벽에 설치할 제품의 중량의 4배(약 32Kg) 이상을 견딜 있는 SMARTDOME CAMERA 용 INDOOR HOUSING및 설치 장소를 선정합니다. OUTDOOR HOUSING을 설치할 사용되는 ADAPTOR 입니다. WALL MOUNT ADAPTOR를 벽에 설치할 경우 PLATE를 ...
Page 21
BACK PLATE 를 접시머리 나사(M3x L6) 6개를 이용하여 HOUSING 의 상단부에 있는 WALL MOUNT ADAPTOR에 조립합니다. DUMMY PLATE를 SCREW (이때 GASKET 부가 WALL MOUNT ADAPTOR와 접촉 2개를 풀어서 분리해 낸후, 하도록 방향에 유의하여 조립합니다.) 방수를 위하여 반드시 GASKET 안착 시킵...
Page 22
제품규격 사용 장소 실내 또는 실외 설치 장소 또는 수직 구조물 외형 size 그림 참조 800g 알루미늄 사용 온도 -40°C~50°C 사용 습도 0~100% 부속품 GASKET............................... BACK PLATE........................ SCREW(FH M3×L6).............. SCR...
