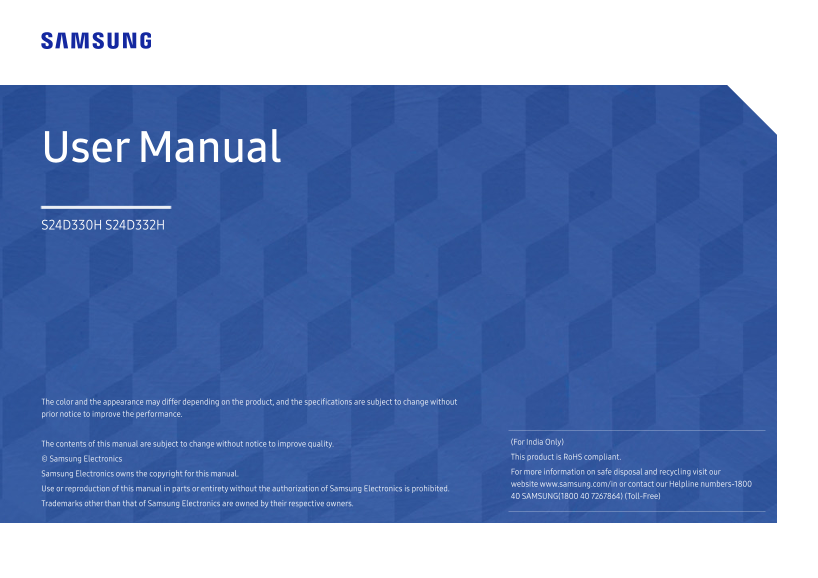

User Manual S24D330H S24D332H
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality. (For India Only) © Samsung Electronics This product is Ro HS compliant. Samsung Electronics owns the copyright for this manual. For more information on safe disposal and recycling visit our website www.samsung.com/in or contact our Helpline numbers-1800
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
40 SAMSUNG(1800 40 7267864) (Toll-Free)
Trademarks other than that of Samsung Electronics are owned by their respective owners.
Page Summary Contents For Samsung S24D332He LCD Monitor User Manual - Section 4 Product Description
Page 1
User Manual S24D330H S24D332H The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. The conten...
Page 2
Table of contents Before Using the Product Connecting and Using a Source Device Screen Setup Securing the Installation Space 4 Pre-connection Checkpoints 15 Brightness 18 Precautions for storage 4 Con...
Page 3
Table of contents Configuring Tint Setup and Reset Specifications Red 22 Reset All 25 General 31 Green 22 Eco Saving Plus 25 Standard Signal Mode Table 32 Blue 22 Off Timer 25 Color Tone 23 PC/AV Mode...
Page 4
Chapter 01 Before Using the Product Securing the Installation Space Safety Precautions Ensure some space around the product for ventilation. An internal temperature rise may cause fire and Warning A s...
Page 5
Cleaning Electricity and Safety Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Warning Take the following steps when cleaning. Do not use a damaged power ...
Page 6
Installation Warning Caution DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT Do not drop the product while moving. INSTALL THE PRODUCT NEAR HEAT SOURCES. Do not set...
Page 7
Operation Warning Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc). There ...
Page 8
Caution Leaving the screen fixed on a stationary image for an extended period of time may cause Do not touch the screen when the product has been turned on for an extended period of time as it afterim...
Page 9
Chapter 02 Preparations Icons Description Parts Open or close the onscreen display (OSD) menu, or return to the parent menu. OSD control lock: Maintain the current settings, or lock the OSD control to...
Page 10
Icons Description Reverse Side Press the button to automatically adjust the screen settings. The color and shape of parts may differ from what is shown. Specifications are subject to change without Ch...
Page 11
Changing Brightness and Contrast settings Adjusting the Product Tilt The color and shape of parts may differ from what is shown. Specifications are subject to change without Adjust the Brightness and ...
Page 12
Anti-theft Lock An anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provide...
Page 13
Installation RGB IN Attaching the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. The exterior may differ depending on ...
Page 14
Removing the Stand Before removing the stand from the monitor, place the monitor on a flat and stable surface with the screen facing down. The exterior may differ depending on the product. Place a sof...
Page 15
Chapter 03 Connecting and Using a Source Device Pre-connection Checkpoints Connecting and Using a PC Before connecting a source device, read the user manual provided with it. Select a connection metho...
Page 16
Connection Using the HDMI Cable Connecting the Power HDMI IN Power connection using integrated AC/DC adapter Connection Using an HDMI-DVI Cable DC 14V HDMI IN The input voltage is switched automatical...
Page 17
Correct posture to use the product Driver Installation You can set the optimum resolution and frequency for this product by installing the corresponding drivers. To install the latest version of the p...
Page 18
Chapter 04 Screen Setup Configure the screen settings such as brightness. A detailed description of each function is provided. Refer to your product for details. The functions available may vary depen...
Page 19
Game Mode SAMSUNG MAGIC Bright Configure the product screen settings for game mode. This menu provides an optimum picture quality suitable for the environment where the product will be used. Use this ...
Page 20
SAMSUNG MAGIC Angle SAMSUNG MAGIC Upscale SAMSUNG SAMSUNG MAGICAngle allows you to configure the settings to obtain the optimum picture quality according to MAGICUpscale function can enhance the layer...
Page 21
HDMI Black Level Coarse If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/ Adjust the screen frequency. color degradation, black level, etc.) may...
Page 22
Chapter 05 Configuring Tint A detailed description of each function is provided. Refer to your product for details. Adjust the tint of the screen. This menu is not available when SAMSUNGMAGICBright is...
Page 23
Color Tone Adjust the general color tone of the picture. This menu is not available when SAMSUNGMAGICAngle is enabled. This menu is not available when SAMSUNGMAGICBright is in Cinema or Dynamic Contra...
Page 24
Chapter 06 Resizing or Relocating the Screen A detailed description of each function is provided. Refer to your product for details. The functions available may vary depending on the product model. Re...
Page 25
Chapter 07 Setup and Reset A detailed description of each function is provided. Refer to your product for details. The functions available may vary depending on the product model. Refer to the actual ...
Page 26
PC/AV Mode INFORMATION Set PC/AV Mode to AV. The picture size will be enlarged. View the current input source, frequency and resolution. This option is useful when you view a movie. Set to PC when con...
Page 27
Chapter 08 Installing the Software System Requirements Easy Setting Box OS Hardware Windows XP 32Bit/64Bit At least 32MB of memory Windows Vista 32Bit/64Bit At least 60MB of free space on the hard dis...
Page 28
Chapter 09 Troubleshooting Guide Requirements Before Contacting Samsung Check the following. Customer Service Center Installation issue (PC mode) Before calling Samsung Customer Service Center, test y...
Page 29
Not Optimum Mode is displayed. Video playback is choppy. This message appears when the signal from the graphics card exceeds the maximum resolution or Playback of high-definition large video files can...
Page 30
Q & A Refer to the user manual for your PC or graphics card for further instructions on adjustment. How can I change the frequency? Set the frequency on your graphics card. Windows XP: Go to Contr...
Page 31
Chapter 10 Specifications General Plug-and-Play Model Name S24D330H S24D332H This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data Size 60.9 cm exchange betwee...
Page 32
Standard Signal Mode Table Model Name S24D330H Synchronization Horizontal Frequency 30 – 81 k Hz Vertical Frequency 56 – 75 Hz Resolution Optimum Resolution 1920 x 1080 @ 60 Hz Maximum Resolution 1920...
Page 33
Resolution Horizontal Frequency (k Hz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) VESA, 1152 x 864 67.500 75.000 108.000 +/+ VESA, 1280 x 720 45.000 60.000 74.250 +/+ VESA, 1280 x 8...
Page 34
Model Name S24D332H Synchronization Horizontal Frequency 30 – 81 k Hz Vertical Frequency 56 – 75 Hz Resolution Optimum Resolution 1920 x 1080 @ 60 Hz (D-SUB) 1920 x 1080 @ 75 Hz (HDMI) Maximum Resolut...
Page 35
Resolution Horizontal Frequency (k Hz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) VESA, 1024 x 768 60.023 75.029 78.750 +/+ VESA, 1152 x 864 67.500 75.000 108.000 +/+ VESA, 1280 x 7...
Page 36
Resolution Horizontal Frequency (k Hz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) VESA, 800 x 600 46.875 75.000 49.500 +/+ VESA, 1024 x 768 48.363 60.004 65.000 -/- VESA, 1024 x 768...
Page 37
Chapter 11 Appendix Responsibility for the Pay Service A Product damage caused by customer's fault (Cost to Customers) Product damage caused by customer's mishandling or wrong repair If a product dama...
