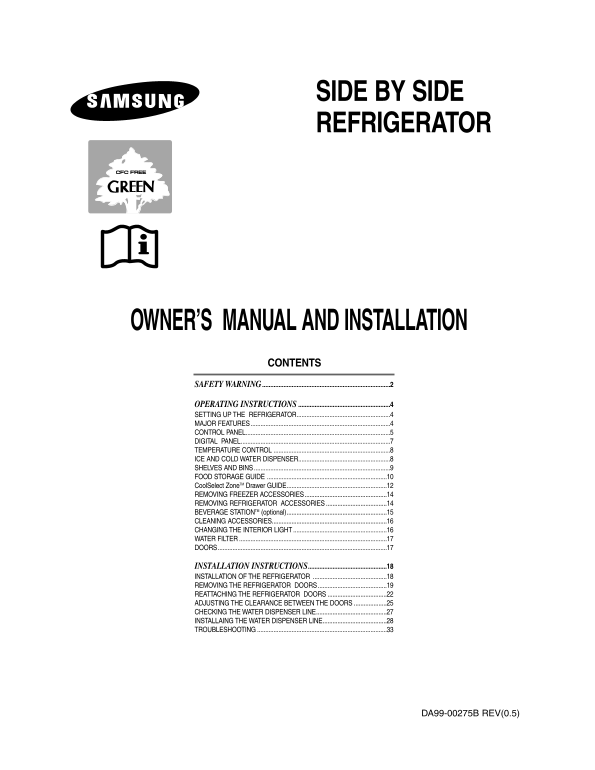

SIDE BY SIDE REFRIGERATOR

OWNER’S MANUAL AND INSTALLATION

CONTENTS

SAFETY WARNING ..............................................................................2

OPERATING INSTRUCTIONS ........................................................4 SETTING UP THE REFRIGERATOR.........................................................4 MAJOR FEATURES.....................................................................................4 CONTROL PANEL........................................................................................5 DIGITAL PANEL...........................................................................................7 TEMPERATURE CONTROL .......................................................................8 ICE AND COLD WATER DISPENSER........................................................8 SHELVES AND BINS...................................................................................9 FOOD STORAGE GUIDE .........................................................................10 Cool Select Zone TM Drawer GUIDE.............................................................12 REMOVING FREEZER ACCESSORIES..................................................14 REMOVING REFRIGERATOR ACCESSORIES .....................................14 BEVERAGE STATIONTM (optional).............................................................15 CLEANING ACCESSORIES......................................................................16 CHANGING THE INTERIOR LIGHT .........................................................16 WATER FILTER ..........................................................................................17 DOORS.......................................................................................................17

INSTALLATION INSTRUCTIONS................................................18 INSTALLATION OF THE REFRIGERATOR .............................................18 REMOVING THE REFRIGERATOR DOORS..........................................19 REATTACHING THE REFRIGERATOR DOORS ....................................22 ADJUSTING THE CLEARANCE BETWEEN THE DOORS ....................25 CHECKING THE WATER DISPENSER LINE...........................................27 INSTALLAING THE WATER DISPENSER LINE.......................................28 TROUBLESHOOTING ...............................................................................33

DA99-00275B REV(0.5)

Page Summary Contents For Samsung RS24KLAT1 XSC User's Manual

Page 1 SIDE BY SIDE REFRIGERATOR OWNER’S MANUAL AND INSTALLATION CONTENTS SAFETY WARNING ..............................................................................2 OPERATING INSTRUCTIONS ..................
Page 2 SAFETY WARNING Before operating the appliance, please read this manual thoroughly and retain it for your reference. Because these following operating instructions cover various models, the characteris...
Page 3 SAFETY WARNING CAUTIONS Do not overfill the refrigerator with food. • When you open the door, an item may fall out and cause personal injury or material damage. Do not put bottles or glass containers ...
Page 4 SETTING UP THE REFRIGERATOR Once you have performed the following steps, your refrigerator should be fully operational. If not, check the power supply and electricity source. If you have any questions...
Page 5 CONTROL PANEL Basic Model Dispenser Model (Child Lock) Dispenser Model (Moisture Control) FREEZER TEMP. BUTTON FRIDGE TEMP. BUTTON To set the freezer temperature, To set the fridge temperature, press ...
Page 6 CONTROL PANEL Opitonal Basic Model (With Cool Select Zone TM) Dispenser Model (With Cool Select Zone TM) Dispenser Model (With Cool Select Zone TM)
Page 7 DIGITAL PANEL Freezer Temp. indicates the current freezer temperature. Fridge Temp. indicates the current refrigerator temperature. Quick Cool,Thaw, and Select show the status of the Cool Select Zone ...
Page 8 TEMPERATURE CONTROL Freezer Refrigerator The refrigerator temperature can be set between The freezer temperature can be set between 7°C and 1°C. -14°C and -25°C. Press the Fridge Temp. button repeated...
Page 9 SHELVES AND BINS Freezer Light Xtra Space TM Door Bin Light Ice Chute Light Switch Ice Maker Glass Shelf Pockets Plastic Drawers Front Leg Cover Basic Model Dispenser Model Refrigerator Dairy Compartm...
Page 10 FOOD STORAGE GUIDE Basic Model Dispenser Model FROZEN FOOD STORAGE IN FREEZER Xtra Space TM Can be used for frozen foods such as pizza, pasta, burri tos, and fajitas. In order to prevent odor penetrat...
Page 11 FOOD STORAGE GUIDE CHILLED FOOD STORAGE IN REFRIGERATOR Tempered Spill Proof Glass Shelf Can be used to store all types of chilled food. • Safe and hard to break resistant. Circular marks on the glass...
Page 12 Cool Select Zone TM Drawer GUIDE “Select” button (Optional) Soft Freeze When “Soft Freeze” is chosen, the temperature on the digtal panel displays -5o C regardless of the set tempera- ture of the refr...
Page 13 Cool Select Zone TM Drawer GUIDE “Quick Cool” button You can use the Quick Cool feature with the Cool Select Zone TM. “Quick Cool” allows 1~3 canned beverages to cool within 60 min. To cancel this opt...
Page 14 REMOVING THE FREEZER ACCESSORIES Ice maker bucket (optional) Glass shelf Remove the bucket by lifting up and pulling out. Pull the shelf out as far as it goes. Then lift it up and remove it. Front leg...
Page 15 BEVERAGE STATIONTM (optional) To open the Beverage Station TM, hold the Beverage Station TM door handle and pull it downward. The Beverage Station TM is convenient It is recommended that you use the a...
Page 16 CLEANING THE ACCESSORIES Deodorizer Remove the cover with a flat blade screw driver as shown. Take out the cartridge from the cover and soak it in clean, warm water at least than 4 hrs. Completely dry...
Page 17 CHANGING THE INTERIOR LIGHT INTERIOR LIGHT IN THE FREEZER (Dispenser Model) Use a screwdriver to remove Change the bulb with a new Reattach the light cover the light cover (➀). one (➁) To replace free...
Page 18 INSTALLATION OF THE REFRIGERATOR Checking the Dimensions of your Entrance Door • Check the dimensions of your entrance door to determine whether the refrigerator can pass through it. NOTE • When refri...
Page 19 REMOVING THE REFRIGERATOR DOORS Removing the Front Leg Cover (Optional) Open the freezer and refrigerator doors, and then take off the front leg cover assembly by turn- ing the three screws counter-cl...
Page 20 REMOVING THE REFRIGERATOR DOORS Lift the door straight up. NOTE Be careful not to pinch the water tubing and wire harness on the door. Place doors on a protected surface. Removing the Freezer Door 1) ...
Page 21 REMOVING THE REFRIGERATOR DOORS Removing the Refrigerator Door 1) With the door closed, remove the upper hinge cover (➀) using a screwdriver, and then discon- nect the wires (➁). 2) Remove hinge screw...
Page 22 REATTACHING THE REFRIGERATOR DOORS Reattaching the Freezer Door 1) Insert the lower hinge (➀) in the bracket 2) Reattach the freezer door by inserting the lower hinge (➁). hose (➂) in the lower side o...
Page 23 REATTACHING THE REFRIGERATOR DOORS Reattaching the Refrigerator Door 1) Insert the lower hinge (➀) in the bracket 2) Place the hole in the refrigerator door (➂) lower hinge (➁). over the lower hinge (...
Page 24 REATTACHING THE REFRIGERATOR DOORS Reattaching the Water Tube (Optional) 1) While pressing the front face of coupler (➁), insert the water line (➀) in the coupler. 2) Tighten the screw on the clamp ( ...
Page 25 ADJUSTING THE CLEARANCE BETWEEN THE DOORS Please level the refrigerator first. The doors will be uneven if the refrigerator is not level. IF FE EI IF FE EI Case 1) Freezer door is lower than Insert a ...
Page 26 ADJUST THE CLEARANCE BETWEEN THE DOORS Making small adjustments between doors. If the door of the freezer is lower than that of If the door of freezer is higher than that of the the refrigerator. refr...
Page 27 CHECKING THE WATER DISPENSER LINE (Optional) 1) In order to operate the ice maker properly, water pressure of 1.4 ~ 10 kgf/cm2 is required. In this range a 100 cc paper cup can be filled in 10 seconds...
Page 28 INSTALLING OF THE WATER DISPENSER LINE For Interior Model (Case 1) Connecting to water supply line 1. Cold Water line 2. Pipe Clamp. - Shut off the main water supply line and turn the Ice maker to the...
Page 29 INSTALLING THE WATER DISPENSER LINE Connect the water line to the refrigerator. CONNECTION NUT WATER LINE - Remove the compressor cover of the refrigerator. - Connect the water line to the valve, as s...
Page 30 INSTALLING THE WATER DISPENSER LINE For Exterior model Connect to the water supply line CAUTION Connect the water pipe with coupler and tap. The water line must be connect- - Close the main water tap....
Page 31 INSTALLING THE WATER DISPENSER LINE Attach the purifier lock stations. TWO PURIFIER LOCK STATION - Hold the purifier lock stations in the appropriate position (under the sink for example) and fix it t...
Page 32 INSTALLING THE WATER DISPENSER LINE Remove any residual matter inside the water supply line 1) Turn on the main water supply & shut-off valve of the water supply line. 2) Run water through the dis...
Page 33 TROUBLESHOOTING The refrigerator does not work at all or it does not Ice is not dispensed chill sufficiently Did you stop the ice making function? Check that the power plug is properly connected. Is t...
Page 36 Ambient Room Temperature Limits This appliance is designed to operate at the ambient temperatures specified by its temperature class marked on the rating plate. Temperature Ambient Temperature Symbol ...
