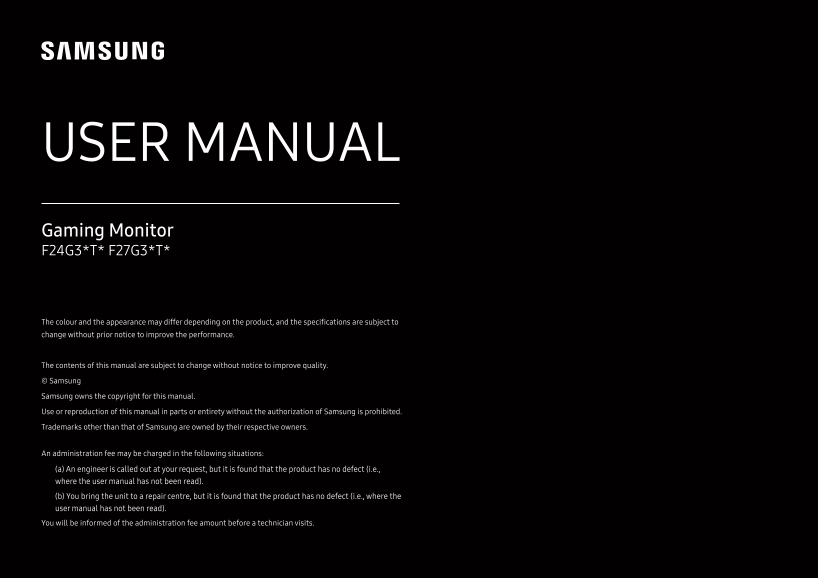

USER MANUAL Gaming Monitor F24G3*T* F27G3*T* The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the perform...
Page 2
Table of contents Before Using the Product Connecting and Using a Source Device Installing the Software Safety Precautions 4 Read below before connecting the product. Easy Setting Box Electricity and ...
Page 3
Table of contents Specifications General Standard Signal Mode Table 32 Appendix Responsibility for the Pay Service (Cost to Customers) Not a product defect 34 A Product damage caused by customer's fau...
Page 4
Chapter 01 Before Using the Product Safety Precautions Electricity and Safety Warning Warning A serious or fatal injury may result if instructions are not followed. Do not use a damaged power cord or ...
Page 5
Installation Warning Caution DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT Do not drop the product while moving. INSTALL THE PRODUCT NEAR HEAT SOURCES. Do not set...
Page 6
Operation Warning Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc). There ...
Page 7
Caution Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage Do not hold the product upside-down or move it by holding the stand. burn-in or defective pix...
Page 8
Cleaning Correct posture to use the product High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby. Contact your nearest Samsung Customer Service Ce...
Page 9
Chapter 02 Preparations Installation Attaching the Stand (F27G3*T*) Place the stand neck on the display, as shown in the The mounting completes.Take out the base and lock it on the Place the protectiv...
Page 10
Removing the Stand Precautions for moving the product Before removing the stand from the product, place the product on a flat and stable surface with the screen facing down. Hold the lower corners or ...
Page 11
Checking the space around the product HAS The height of the monitor can be adjusted. Make sure to have enough space for ventilation when placing the product. An internal temperature rise - Up/down adj...
Page 12
Anti-theft Lock Wall Mount Kit Specifications (VESA) An anti-theft lock allows you to use the product securely even in public places. Install your wall mount on a solid wall perpendicular to the floor...
Page 13
Parts Description Control Panel This LED is power status indicator and works as The colour and shape of parts may differ from what is shown. Specifications are subject to change without Power On (Powe...
Page 14
Chapter 03 Connecting and Using a Source Device Read below before connecting the product. Ports 1 Before connecting the product, check the shapes of both ports of the supplied signal cables and the Th...
Page 15
Connecting and Using a PC Connection Using an DP Cable Select a connection method suitable for your PC. Connection Using the HDMI Cable A DP cable shorter under 1.5 m in length is recommended. Using a...
Page 16
Connecting the Power Earphone Holder DP IN HDMI IN DP IN D-SUB IN DC 14V Connect the power cable to the AC/DC adapter. Then, connect the AC/DC adapter to the DC 14V port 1 Pull out the headphone holde...
Page 17
Setting Optimum Resolution An information message about setting optimum resolution will appear if you power on the product for the first time after purchase. Select a language on information message a...
Page 18
Chapter 04 Menu ― The functions available may vary depending on the product model. The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to i...
Page 19
Language 2nd 3rd Description Language Set the menu language. A change to the language setting will only be applied to the onscreen menu display. It will not be applied to other functions on your PC.
Page 20
Game mode 2nd 3rd Description OD Activate OD function Inactivate OD function Crosshair Select the preferred aim point style. Free Sync Premium Free Sync technology is solution that eliminates screen t...
Page 21
2nd 3rd Description Standard This menu provides an optimum picture quality suitable for the environment where the product will be used. Standard : Select this mode when the surroundings are bright. Ci...
Page 22
Color 2nd 3rd Description Adjust the tint of the screen. Cool When the external input is connected through HDMI/DP and PC/AV Mode is set to AV (720P @ 60Hz and 1080P @ 60Hz). Color Tone: Select a colo...
Page 23
Aspect 2nd 3rd Description Aspect Select the best screen size and ratio. This menu is not available when Free Sync is enabled. In PC mode Auto: Display the picture according to the aspect ratio of the...
Page 24
Input 2nd 3rd Description Input VGA (Analog) signal input. HDMI (Digital) signal input. Display port (Digital) signal input.
Page 25
Other 2nd 3rd Description Off Timer Activate the function of timed switch-off. Inactivate the function of timed switch-off. 4 hours automatic shutdown. Gamma Adjust the middle level of luminance. Gamm...
Page 26
Reset 2nd 3rd Description Reset Return all the settings for the product to the default factory settings. 2nd 3rd Description Exit from the whole menu.
Page 27
Chapter 05 Installing the Software Easy Setting Box Driver Installation To install the latest version of the product driver, download it from the Samsung website (http://www. samsung.com). You can set...
Page 28
Chapter 06 Troubleshooting Guide Requirements Before Contacting Samsung Check the following. Customer Service Centre Installation issue (PC mode) Before calling Samsung Customer Service Centre, test y...
Page 29
The message Check the cable connection and the settings of the source device. appears. Text is blurry. Check that the cable is properly connected to the product. If using a Windows OS (e.g. Windows 7,...
Page 30
Q & A Refer to the user manual for your PC or graphics card for further instructions on adjustment. The path to the settings depends on the installed OS. How can I change the frequency? Set the fr...
Page 31
Chapter 07 Specifications General Model Name F24G3*T* F27G3*T* Size 24 Class (23.8 Inches / 60.4 cm) 27 Class (27 Inches / 68.6 cm) Display area 527.04 mm (H) x 296.46 mm (V) 597.888 mm (H) x 336.312 ...
Page 32
Standard Signal Mode Table Model Name F24G3*T* F27G3*T* Synchronization (PANEL Spec) Vertical Frequency 48 - 144 Hz 48 - 144 Hz Resolution Optimum resolution 1920 x 1080 @ 144 Hz 1920 x 1080 @ 144 Hz ...
Page 33
Horizontal Frequency Vertical Frequency Pixel Clock Sync Polarity Port Resolution (k Hz) (Hz) (MHz) (H/V) HDMI DPD-SUB VESA, 1280 x 1024 63.981 60.020 108.000 VESA, 1280 x 1024 79.976 75.025 135.000 V...
Page 34
Chapter 08 Appendix Responsibility for the Pay Service (Cost to A Product damage caused by customer's fault Customers) Product damage caused by customer's mishandling or wrong repair If a product dama...
Page 35
If you encounter any issues when using the function, contact the Samsung Service Centre. Free Sync (for AMD graphics card) If you change the screen resolution while the function is On, the screen may ...
