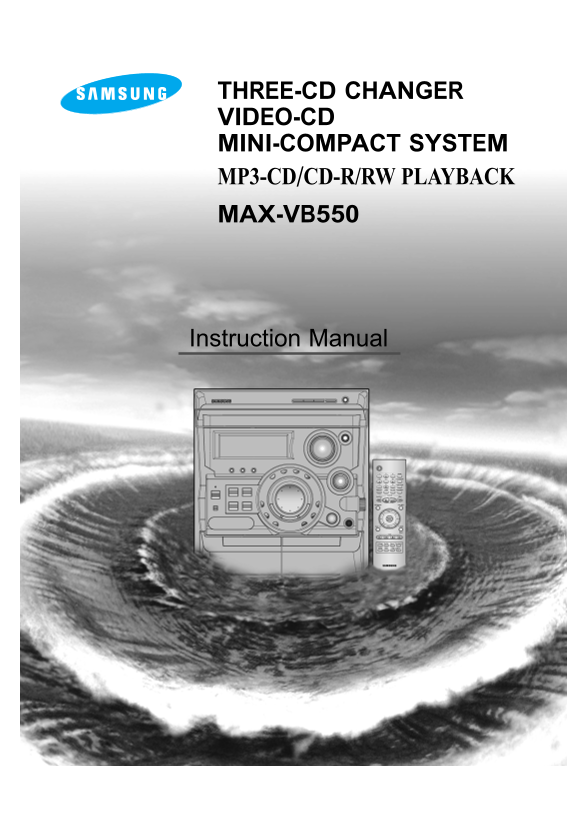

THREE-CD CHANGER VIDEO-CD MINI-COMPACT SYSTEM MP3-CD/CD-R/RW PLAYBACK MAX-VB550
Instruction Manual
Page Summary Contents For Samsung Galaxy MAX- B550 User Guide
Page 1
THREE-CD CHANGER VIDEO-CD MINI-COMPACT SYSTEM MP3-CD/CD-R/RW PLAYBACK MAX-VB550 Instruction Manual
Page 2
Safety Warnings GB CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT This Compact Disc player is classified as a CLASS 1 LUOKAN 1 LASER LAITE LASER product. KLASS 1 LASER APPARAT PROD...
Page 3
Thank you for buying this SAMSUNG mini-compact system. Contents Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage GB of its feat...
Page 4
Front Panel View GB 1. Display Window 18. Program 2. AI Sleep 19. CD Repeat 3. Timer On/Off 20. Cassette Deck 2 4. Timer/Clock 21. Headphone Jack Connector 5. Function Selection buttons 22. Enter(Retu...
Page 5
Remote Control 1. Standby/On 18. Key Control 2. Digit Buttons/Direction Buttons 19. Return 3. FM Mono/Stereo/ VCD Zoom 20. Time Search (Last Memory) 4. +10/0 21. TAPE Stop 5. Track Previous 22. TAPE P...
Page 6
Rear Panel View GB 1. FM Aerial Connector Terminal 2. SW Aerial Connector Terminal (OPTION) 3. AM Aerial Connector Terminal 4. Loudspeaker Connector Terminals 5. AUDIO Output Connectors 6. VIDEO Outpu...
Page 7
Where to Install Your Connecting your System to the Mini-Compact System Power Supply The main lead must be plugged into an appropriate socket. To take full advantage of your new mini-compact system, f...
Page 8
Inserting Remote Control Batteries Connecting the Loudspeakers Insert or replace remote control batteries when you: The loudspeaker connector terminals are located on the rear Purchase the mini-compac...
Page 9
Connecting to an External Source Connecting to the Equipment The auxiliary input can be used to take advantage of the Using the Audio Cord, Connect the Audio Output Terminals (Left, sound quality of y...
Page 10
Connecting the AM (MW)/LW Aerial GB The AM aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) AM ANT. The AM aerial connector term...
Page 11
Demo/Dimmer function Setting the Clock All functions available on the system can be viewed on the Your system is equipped with a clock which allows you to display and the display's brightness can be s...
Page 12
Loading and Changing Compact To replay the CD/MP3-CD Discs GB The CD disc changer can contain up to three 12 cm or 8 cm This is a player that enables the playback of audio CD, CD-R, compact discs with...
Page 13
Selecting a CD in the Disc changer MP3-CD Playback HOW TO PLAYBACK MP3-CD directly The CD function is automatically selected when Disc Skip is After inserting MP3-CD in the Set, Press button or pushed...
Page 14
Searching for a Specific Music Shuffle Play Function Passage on a CD GB When listening to a compact disc, you can quickly search for You can listen to the tracks on a compact disc in a different a spe...
Page 15
Checking or Changing Programmed Programming the Order of Playback Tracks You can decide: You can check or change your selection of tracks at any time. The order of the track desired to listen The trac...
Page 16
Video CD Player Playback Search Functions In order to playback video VIDEO-CD(‘S), make sure that your You can find a certain passage faster during playback. unit is connected to your TV set. This fun...
Page 17
When adjusting play speed Sound Select Function Turn on the TV and set video mode. With this function, you can playback video CD’s that provide 2-channel tone(bilingual) in the original language. Simi...
Page 18
VCD VIEW function ZOOM Function This function can be used conveniently to search a desired track in a VCD. Press Zoom button during playback. This function is possible in CD or VCD Ver 1.1 or Ver 2.0m...
Page 19
Searching for and Storing the Radio Stations You can store up to: 15 FM stations OPTION 15 AM stations 15 FM stations 8 AM(MW) stations OPTION 7 LW stations 15 FM stations 5 MW stations OPTION 5 SW1 s...
Page 20
Selecting a Stored Station Improving Radio Reception You can improve the quality of radio reception by: You can listen to a stored radio station as follows: Rotating the FM or AM(MW) aerial Testing th...
Page 21
Listening to a Cassette CD Synchro Record Feature You can record a compact disc on a cassette in two different ways: Always treat your cassettes with care; refer, if necessary, to the section entitled...
Page 22
Recording a Radio Program GB You can record a radio program of your choice. You can only record on cassettes in Deck 2. You do not need to adjust the volume, as it has no effect on the recording. Swit...
Page 23
Timer Function The timer enables you to switch the system on or off at If the timer switch on and off times are identical, the word ERROR is specific times. displayed. Example: You wish to wake up to ...
Page 24
Mute Function Power Surround Function GB You can turn the sound off temporarily on your system. Your mini-compact system is equipped with the function Example: You wish to answer a telephone call. of ...
Page 25
Setting the System to Switch off Microphone Function Automatically While listening to a compact disc or a cassette, you can The microphone enables the user to mix in his or her set the system to switc...
Page 26
Cleaning Your Mini-Compact Safety Precautions System The following diagrams illustrate the precautions to be taken To obtain the best possible results from your mini-compact when using or moving your ...
Page 27
Precautions When Using Compact Before Contacting the After-Sales Discs Service Handle your compact discs with care. Always hold them by the It always takes a little time to become familiar with a new ...
Page 28
Technical Specifications GB SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO LW(option)...
Page 29
