Samsung Commercial Air Conditioning System User Manual - AVMKH026EA0SKD

Summary

Master your home climate with this comprehensive owner's manual for our multi-functional heat pump air conditioning system. This guide is essential reading for new owners, offering detailed instructions on safe setup, optimal operation (heating and cooling), and maintenance. Learn how to use all remote controls, perform necessary cleaning, and troubleshoot common issues to ensure year-round, efficient performance.

📄 Preview ‹ PAGE OF 16 ›

‹

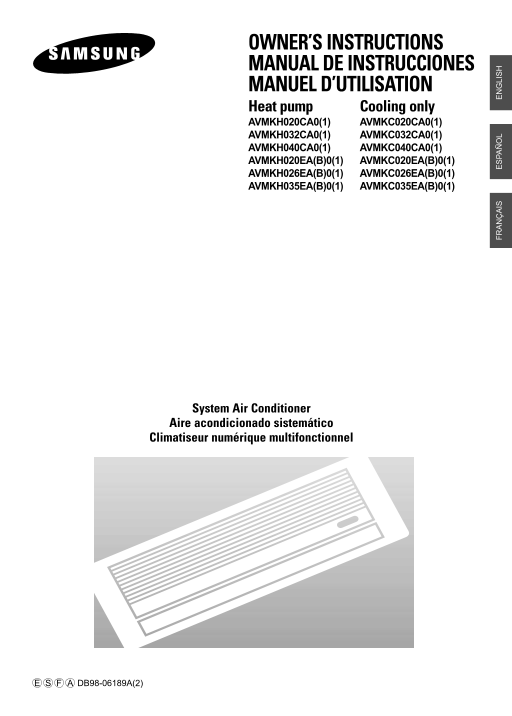

Samsung Commercial Air Conditioning System User Manual - AVMKH026EA0SKD - Page 1

›

Page 1 Text Content

OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION Heat pump Cooling only AVMKH020CA0(1) AVMKC020CA0(1) AVMKH032CA0(1) AVMKC032CA0(1) AVMKH040CA0(1) AVMKC040CA0(1) AVMKH020EA(B)0(1) AVMKC020EA(B)0(1) AVMKH026EA(B)0(1) AVMKC026EA(B)0(1) AVMKH035EA(B)0(1) AVMKC035EA(B)0(1)

System Air Conditioner Aire acondicionado sistemático Climatiseur numérique multifonctionnel

IS LI

DB98-06189A(2)

Page Summary Contents For Samsung Commercial Air Conditioning System User Manual - AVMKH026EA0SKD

Page 1 OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION Heat pump Cooling only AVMKH020CA0(1) AVMKC020CA0(1) AVMKH032CA0(1) AVMKC032CA0(1) AVMKH040CA0(1) AVMKC040CA0(1) AVMKH020EA(B)0(1) AVM...

Page 2 Safety Precautions ◆If the power supply cord of this air conditioner is damaged, WARNING it must be replaced by the manufacturer or its authorized service personnel only in order to avoid a safety haz...

Page 3 Contents PREPARING YOUR AIR CONDITIONER ■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . ...

Page 4 View of the Unit The figures are shown in this instruction may differ from yours depending on the model. Indoor Unit Air flow blade Air inlet Timer indicator Remote control sensor Fan indicator - Heat...

Page 5 TYPE AOutdoor Unit Air outlet Connection valve TYPE BOutdoor Unit Air outlet Connection valve TYPE COutdoor Unit Air outlet Connection valve TYPE DOutdoor Unit Air outlet Connection valve Air outlet T...

Page 6 Wireless Remote Controller-Buttons and Display The wireless remote controller is an optional accessory. To use the wireless remote controller, refer to an appropriate manual. Mode selection button Ope...

Page 7 Wired Remote Controller-Buttons and Display The wired remote controller is an optional accessory and it is installed on the wall. To use the wired remote controller, refer to an appropriate manual. Op...

Page 8 Centralized Controller The centralized controller is an optional accessory and it is installed on the wall. To use the centralized controller, refer to an appropriate manual. Operating lamp All On but...

Page 9 Operating Recommendations Here are a few recommendations that you should follow when operating your air conditioner. Topic Recommendation Heating The heat pump function of the air conditioner absorbs ...

Page 10 Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges, within which the air conditioner can be used. If the air conditioner is used at... Then... High tempe...

Page 11 Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. IMPORTANT Before cleaning you...

Page 12 Bio-Pure Filter Installation (Optional) The air conditioner can be fitted with a Bio-Pure or deodorizing filter to remove minute dust particles or odours. The service life of the filter is approximate...

Page 13 Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save your time and expense of an unnecessary call. Problem Explanation/Solution The air...

Page 14 Technical Specifications Power Supply Model AVMKH020CA0(1) AVMKH032CA0(1) AVMKH040CA0(1) 1Ø, 208-230V~, 60Hz AVMKC020CA0(1) AVMKC032CA0(1) AVMKC040CA0(1) AVMKH020EA(B)0(1) AVMKH026EA(B)0(1) AVMKH035EA...

Page 16 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: ELECTRONICS Printed in Korea

Manual Details

Brand	Samsung
Pages	16
File Size	606.22 KB
Published	June 06, 2026

43 views

Enter the captcha to get the download link:

Frequently Asked Questions

Who should replace a damaged power supply cord?

It must be replaced by the manufacturer or authorized service personnel only to avoid a safety hazard.

Where should electronic equipment be placed in relation to the AC units?

Ensure that any electronic equipment is at least one metre away from either the indoor or outdoor units.

What do I do if the air conditioner smells like burning?

Immediately stop operation, turn off the electrical breaker, and consult authorized service personnel.

How should I clean the heat exchanger on the outdoor unit?

Clean it with water when it gets dusty, but be careful because its surface is very sharp.
