Roland VS8F-3 Plugin Effects Expansion Card Owner's Manual
Summary
Get comprehensive guidance for safe and optimal operation of your electronic audio device. This essential user guide details critical safety warnings—including electrical precautions, handling heat extremes, and managing CD-ROM playback—ensuring you use the unit correctly every time. Designed for new owners who require thorough setup instructions, this resource helps maximize performance while protecting your equipment from potential damage.
Page 1 Text Content
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分

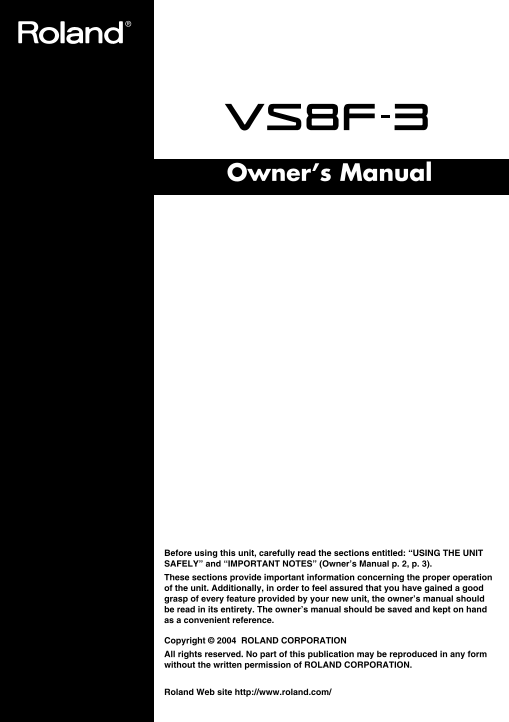

Owner’s Manual
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (Owner’s Manual p. 2, p. 3). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, the owner’s manual should be read in its entirety. The owner’s manual should be saved and kept on hand as a convenient reference.
Copyright © 2004 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Roland Web site http://www.roland.com/
Page Summary Contents For Roland VS8F-3 Plugin Effects Expansion Card Owner's Manual
Page 1
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Owner’s Manual Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (Owner’s Manual p. 2, p. 3). These s...
Page 2
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 USING THE UNIT SAFELY Used for instructions intended to alert The symbol alerts the user to important instructions the user to the risk of death or severe or w...
Page 3
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 IMPORTANT NOTES Placement 354a Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or othe...
Page 4
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Contents Introduction................................................................................................5 Features of the VS8F-3.....................
Page 5
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Introduction Features of the VS8F-3 The VS8F-3 is an optional board that can be installed in an effect expansion slot of a supported VS series unit to add or e...
Page 6
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Before you use the VS8F-3 To use VS8F-3 in a VS series recorder, the system program version of the V Studio must be compatible with the VS8F-3. Please check th...
Page 7
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Before you use the VS8F-3 Using the SETUP DISC to update the system version Here's how to update the system program of your VS series device so that it will su...
Page 8
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Before you use the VS8F-3 Recovering your projects Restore the data that you had backed up in Backing up your projects (p. 6) back onto the hard disk (Project ...
Page 9
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Before you use the VS8F-3 Rules for installing effect expansion boards What is the Key Card? It is necessary to authorize the effect programs with individual I...
Page 10
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Before you use the VS8F-3 Where to install the VS8F-3 (Checking the first slot) VS-2480/2480CD AC Cord Rear panel Unplug the power before installing an effect ...
Page 11
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Installing plug-in effects in the V Studio VS plug-in programs for the VS8F-3 are provided on a SETUP DISC, and thus cannot be used by the VS8F-3 without insta...
Page 12
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Installation examples If you own one VS series unit and one VS8F-3 board before When authorizing, the VS8F-3 must be installed in the first the authorization s...
Page 13
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 If you own two (or more) VS series units and one VS8F-3 board before For the first VS series unit, you must install the VS8F-3 in the authorization the first s...
Page 14
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 If you own two (or more) VS series units and two (or more) VS8F-3 boards before For the first VS series unit, you must install the authorization the VS8F-3 in ...
Page 15
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Installation procedure 1. Carefully read the included leaflet “License agreement for Roland software” and verify that you accept the conditions. If you are una...
Page 16
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Re-installing your plug-ins If you initialize (format) the hard disk of your VS series unit, the VS plug-in programs on the hard disk will be lost, leaving you...
Page 17
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Using the effects Now that you've installed the VS8F-3 in your VS series unit, let's try out the effects. A VS8F-3 effect can be used as an insert effect or lo...
Page 18
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Using the effects Editing the effect parameters Here's how to edit the effect parameters of the selected patch. Depending on the VS plug-in program, it may 1. ...
Page 19
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm What are VS plug-in Programs? VS plug-in programs are programs created specifically for the VS8F-3. Each of these programs consists of Algorit...
Page 20
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm Mastering Tool Kit Multi This is a compressor that divides the input signal into frequency bands (High, Middle, and Low) and regulates the vol...
Page 21
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm ENHANCER Accentuates the sound and pushes the sound forward. Parameter (full name) Setting Function Sw (Switch) OFF, ON Turns the enhancer on ...
Page 22
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm COMP (Compressor) Compresses the entire output signals when the input volume exceeds a specified value. Parameter (full name) Setting Function...
Page 23
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm Tempo Mapping Effect This is a stereo delay that lets you specify the delay time relative to the tempo. Since you can set the delay time as a ...
Page 24
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm L-ch DELAY Parameter (full name) Setting Function 1/1, 1/1t, 1/2, 1/2t, 1/4, Specifies the initial delay time of the L-channel in terms of a n...
Page 25
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm (*4) The note value lengths have the following significance. Display Explanation 0.0 no delay sound. If the specified note value 1/1 a whole n...
Page 26
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm Stereo Reverb This models the reflections and reverberation of a hall or room, as well as its spatial character. Since both input and output a...
Page 27
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm EXP (Expander) If the input volume drops below the specified threshold, this will expand the dynamic range of the output signal. Parameter (fu...
Page 28
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm Vocal Channel Strip Multi This is a multi-effect suitable for use when recording or processing a vocal. This one algorithm can be used on up t...
Page 29
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Effect Algorithm Pre-Amp Modeling Multi This effect simulates the variations in response between different types of preamp, and models the subtle differences i...
Page 30
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Preset Patch List Mastering Tool Kit Number Name Comment P000 Mixdown Mix down for CD. P001 Pre Mastering Pre-master for video editing. P002 Live Mixing Final ...
Page 31
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Preset Patch List Number Name Comment P057 Long Cave Modeled reverberation of deep caves. P058 Garage Drums Natural reverb that enhances unique drum sounds. P0...
Page 32
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Troubleshooting If the VS8F-3 does not operate correctly even when you've installed it as directed by the owner's manual, or does not operate as you expect, pl...
Page 33
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Troubleshooting Precautions when requesting service for the VS8F-3 If for some reason the VS8F-3 fails to operate properly, and repair or replacement is necess...
Page 34
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分
Page 35
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 Information When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below. PHILIPPINES ...
Page 36
VS8F-3_e.book ページ ２００４年３月３１日 水曜日 午後４時３８分 For EU Countries This product complies with the requirements of European Directive 89/336/EEC. For the USA FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY IN...
