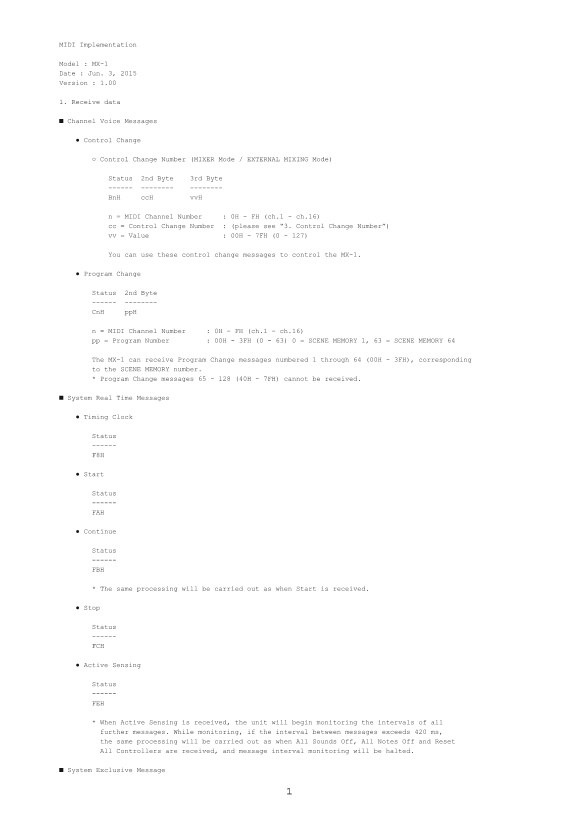

Roland Performance Mixer MX-1 [English]

MIDI Implementation

Model : MX-1 Date : Jun. 3, 2015 Version : 1.00

1. Receive data

■ Channel Voice Messages

● Control Change

○ Control Change Number (MIXER Mode / EXTERNAL MIXING Mode)

Status 2nd Byte 3rd Byte ------ -------- -------- Bn H cc H vv H

n = MIDI Channel Number : 0H - FH (ch.1 - ch.16) cc = Control Change Number : (please see “3. Control Change Number”) vv = Value : 00H - 7FH (0 - 127)

You can use these control change messages to control the MX-1.

● Program Change

Status 2nd Byte ------ -------- Cn H pp H

n = MIDI Channel Number : 0H - FH (ch.1 - ch.16) pp = Program Number : 00H - 3FH (0 - 63) 0 = SCENE MEMORY 1, 63 = SCENE MEMORY 64

The MX-1 can receive Program Change messages numbered 1 through 64 (00H - 3FH), corresponding to the SCENE MEMORY number. * Program Change messages 65 - 128 (40H - 7FH) cannot be received.

■ System Real Time Messages

● Timing Clock

Status

● Start

Status

● Continue

Status

* The same processing will be carried out as when Start is received.

● Stop

Status

● Active Sensing

Status

* When Active Sensing is received, the unit will begin monitoring the intervals of all further messages. While monitoring, if the interval between messages exceeds 420 ms, the same processing will be carried out as when All Sounds Off, All Notes Off and Reset All Controllers are received, and message interval monitoring will be halted.

■ System Exclusive Message
