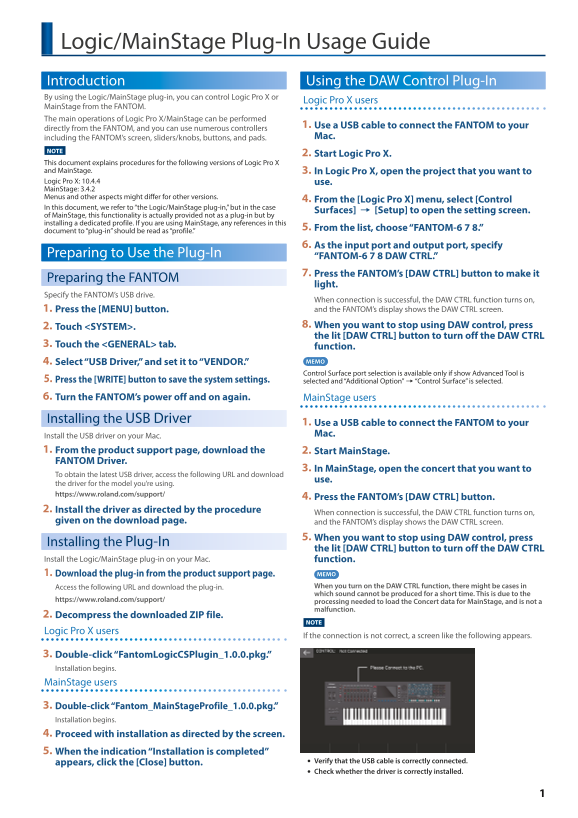

Roland Fantom 6 Music Workstation User Manual [Quick Guide - English]

Logic/Main Stage Plug-In Usage Guide Introduction Using the DAW Control Plug-In By using the Logic/Main Stage plug-in, you can control Logic Pro X or

Logic Pro X users

Main Stage from the FANTOM. The main operations of Logic Pro X/Main Stage can be performed

1. Use a USB cable to connect the FANTOM to your

directly from the FANTOM, and you can use numerous controllers

including the FANTOM’s screen, sliders/knobs, buttons, and pads. Mac.

2. Start Logic Pro X.

This document explains procedures for the following versions of Logic Pro X and Main Stage. 3. In Logic Pro X, open the project that you want to Logic Pro X: 10.4.4 use. Main Stage: 3.4.2 Menus and other aspects might differ for other versions. 4. From the [Logic Pro X] menu, select [Control In this document, we refer to “the Logic/Main Stage plug-in,” but in the case

Surfaces] 0 [Setup] to open the setting screen.

of Main Stage, this functionality is actually provided not as a plug-in but by installing a dedicated profile. If you are using Main Stage, any references in this

5. From the list, choose “FANTOM-6 7 8.”

document to “plug-in” should be read as “profile.”

6. As the input port and output port, specify

Preparing to Use the Plug-In “FANTOM-6 7 8 DAW CTRL.”

7. Press the FANTOM’s [DAW CTRL] button to make it

Preparing the FANTOM

light.

Specify the FANTOM’s USB drive.

When connection is successful, the DAW CTRL function turns on,

1. Press the [MENU] button. and the FANTOM’s display shows the DAW CTRL screen.

2. Touch <SYSTEM>. 8. When you want to stop using DAW control, press the lit [DAW CTRL] button to turn off the DAW CTRL

3. Touch the <GENERAL> tab.

function. 4. Select “USB Driver,” and set it to “VENDOR.” MEMO Control Surface port selection is available only if show Advanced Tool is

5. Press the [WRITE] button to save the system settings. selected and “Additional Option”0“Control Surface” is selected.

6. Turn the FANTOM’s power off and on again. Main Stage users

Installing the USB Driver 1. Use a USB cable to connect the FANTOM to your

Install the USB driver on your Mac. Mac.

1. From the product support page, download the 2. Start Main Stage. FANTOM Driver.

3. In Main Stage, open the concert that you want to

To obtain the latest USB driver, access the following URL and download

the driver for the model you’re using. https://www.roland.com/support/

4. Press the FANTOM’s [DAW CTRL] button.

2. Install the driver as directed by the procedure

When connection is successful, the DAW CTRL function turns on,

given on the download page. and the FANTOM’s display shows the DAW CTRL screen.

5. When you want to stop using DAW control, press

Installing the Plug-In

the lit [DAW CTRL] button to turn off the DAW CTRL

Install the Logic/Main Stage plug-in on your Mac. function. 1. Download the plug-in from the product support page. MEMO

Access the following URL and download the plug-in. When you turn on the DAW CTRL function, there might be cases in which sound cannot be produced for a short time. This is due to the

https://www.roland.com/support/

processing needed to load the Concert data for Main Stage, and is not a malfunction.

2. Decompress the downloaded ZIP file.

Logic Pro X users

If the connection is not correct, a screen like the following appears.

3. Double-click “Fantom Logic CSPlugin_1.0.0.pkg.” Installation begins. Main Stage users

3. Double-click “Fantom_Main Stage Profile_1.0.0.pkg.” Installation begins. 4. Proceed with installation as directed by the screen. 5. When the indication “Installation is completed”

appears, click the [Close] button. Verify that the USB cable is correctly connected. Check whether the driver is correctly installed.
