These reliable Schottky barrier diodes are designed for high-speed switching and general detection applications in small surface-mount devices (SMD) requiring low forward voltage drop (VF) and minimal reverse current (IR). This comprehensive manual provides detailed technical specifications, including absolute maximum ratings, crystal clear electrical characteristics, and performance curves. Essential for engineers and designers seeking compact, highly reliable power components, it covers optimal circuit integration and operating parameters across various temperatures.

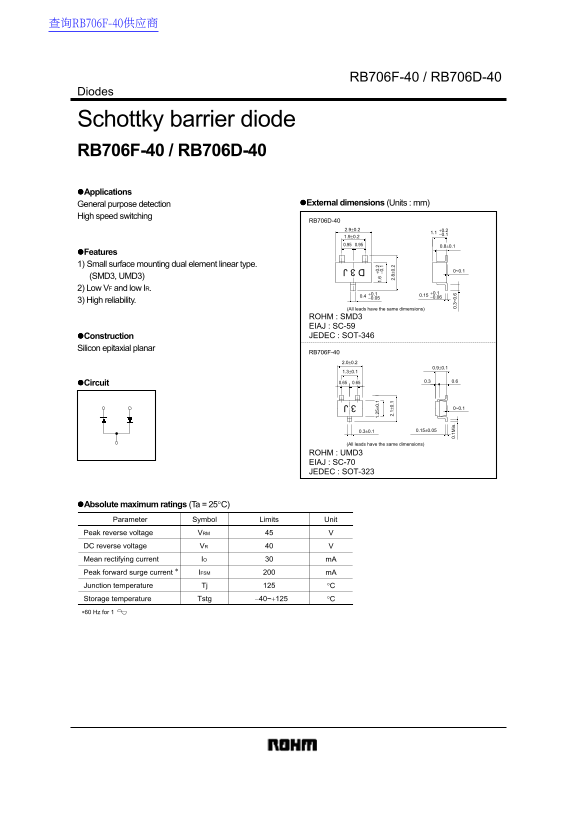

Page 1 Text Content
查询RB706F-40供应商
RB706F-40 / RB706D-40
Diodes
Schottky barrier diode RB706F-40 / RB706D-40 Applications
General purpose detection External dimensions (Units : mm)
High speed switching
RB706D-40
Features 1) Small surface mounting dual element linear type.
(SMD3, UMD3) 2) Low VF and low IR.
3) High reliability.
(All leads have the same dimensions)
ROHM : SMD3 EIAJ : SC-59 Construction JEDEC : SOT-346
Silicon epitaxial planar
RB706F-40
Circuit 0.650.65
(All leads have the same dimensions)
ROHM : UMD3 0. 1M in 0. 3~ 0. 60.150.4
EIAJ : SC-70 JEDEC : SOT-323
Absolute maximum ratings (Ta = 25°C) Parameter Symbol Limits Unit Peak reverse voltage VRM DC reverse voltage VR D 3 J
Mean rectifying current IO m A Peak forward surge current ∗ IFSM m A Junction temperature Tj °C Storage temperature Tstg −40~+125 °C ∗60 Hz for 1
Page Summary Contents For ROHM RB706F-40 RB706D-40 Data Sheet User Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 2 |
| File Size | 24.68 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum reverse voltage rating for this diode?
The peak reverse voltage (VRM) limit is 45V, and the DC reverse voltage (VR) limit is 40V.
How is handling required for the device?
Since it is an ESD sensitive product, proper handling precautions are necessary.
What standard packages is this diode available in?
It is available in SMD3, UMD3, and various package standards like ROHM's SMD3 or EIAJ's SC-59.
What is the junction temperature range for operation?
The junction temperature (Tj) limit is 125°C. The storage temperature range (Tstg) is -40 to +125°C.
