Philips TJA1020 Data Sheet

Summary

The NXP TJA1020 is a LIN (Local Interconnect Network) transceiver IC that serves as the interface between LIN protocol controllers and the physical bus in automotive applications. The datasheet describes its capability for baud rates up to 20 Kbaud, very low electromagnetic emission, high electromagnetic immunity, passive behavior in unpowered state, integrated termination resistor for slave applications, and wake-up source recognition. It supports both normal and low slope modes for reduced EMI. Target users are automotive electronics engineers designing in-vehicle sub-networks and body electronics systems.

📄 Preview PAGE OF 22

Page 1 Text Content

查询TJA1020供应商

INTEGRATED CIRCUITS

DATA SHEET

TJA1020 LIN transceiver Product specification Jan Supersedes data of 2002 Jul 17

Page Summary Contents For Philips TJA1020 Data Sheet

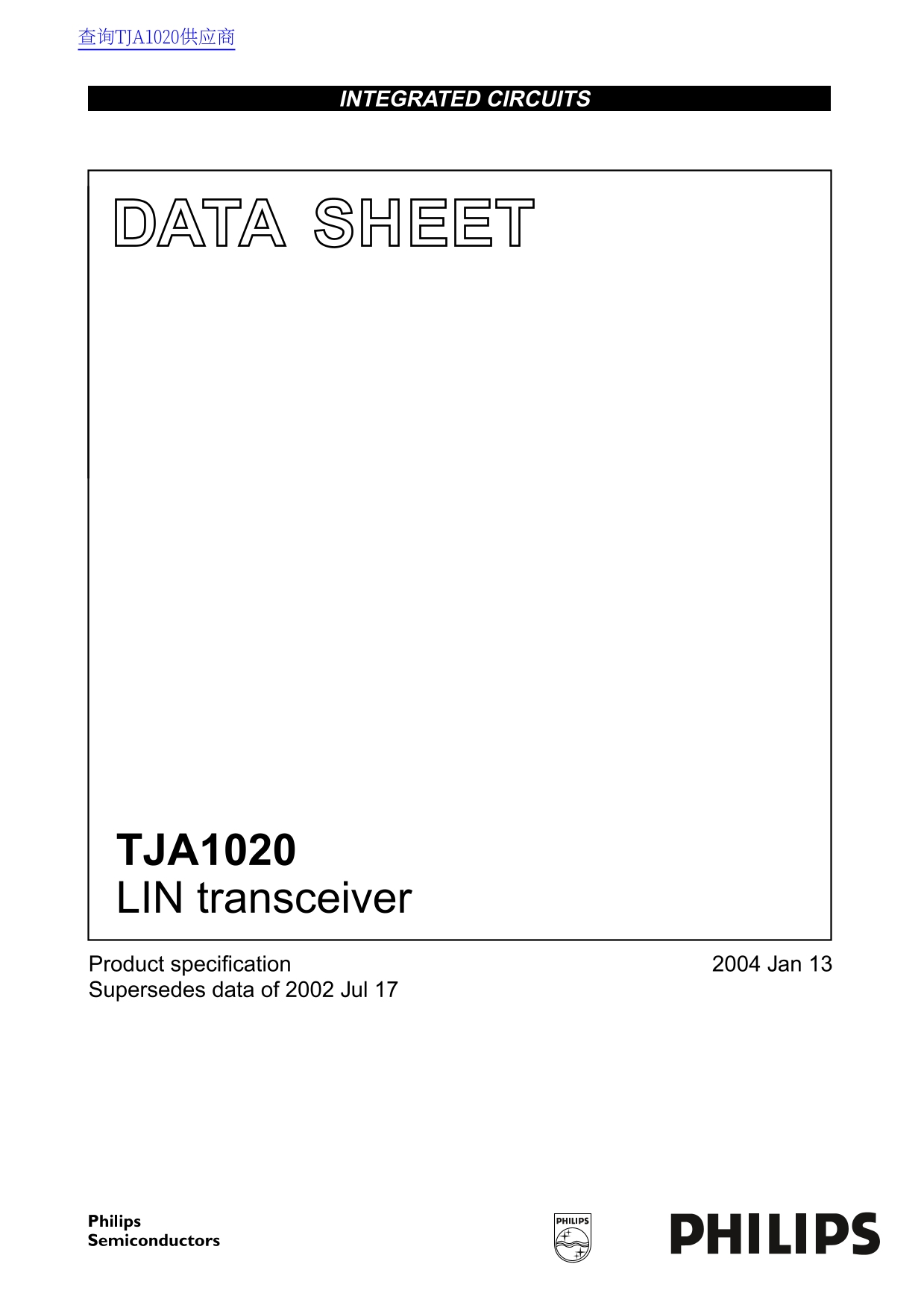

Page 1 查询TJA1020供应商 INTEGRATED CIRCUITS DATA SHEET TJA1020 LIN transceiver Product specification Jan Supersedes data of 2002 Jul 17
Page 2 Philips Semiconductors Product specification LIN transceiver TJA1020 FEATURES GENERAL DESCRIPTION General The TJA1020 is the interface between the LIN master/slave protocol controller and the physical...
Page 3 Philips Semiconductors Product specification LIN transceiver TJA1020 BLOCK DIAGRAM handbook, full pagewidth WAKE-UP TIMERNWAKE CONTROL SLEEP/ TEMPERATURE NSLP NORMAL PROTECTION TIMER TXD TIME-OUT TIME...
Page 4 Philips Semiconductors Product specification LIN transceiver TJA1020 FUNCTIONAL DESCRIPTION The TJA1020 is the interface between the LIN master/slave protocol controller and the physical bus in a Loca...
Page 5 Philips Semiconductors Product specification LIN transceiver TJA1020 Table 1 Operating modes MODE NSLP TXD (OUTPUT) RXD INH TRANSMITTER REMARKS Sleep weak pull-down floating floating off no wake-up re...
Page 6 Philips Semiconductors Product specification LIN transceiver TJA1020 Setting pin NSLP HIGH during standby mode results in the In the low slope mode the transmitter output stage drives following events...
Page 7 Philips Semiconductors Product specification LIN transceiver TJA1020 Wake-up via mode transition pin TXD exceeds the internal timer value (tdom), the transmitter is disabled, driving the bus line into...
Page 8 Philips Semiconductors Product specification LIN transceiver TJA1020 LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134); all voltages are referenced to pin GND. SYMBOL P...
Page 9 Philips Semiconductors Product specification LIN transceiver TJA1020 CHARACTERISTICS VBAT to V; Tvj −40 to +150 °C; RL(LIN-BAT) Ω; all voltages are defined with respect to ground; positive currents fl...
Page 10 Philips Semiconductors Product specification LIN transceiver TJA1020 SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT IIL LOW-level input current VTXD −5 +5 µA IOL LOW-level output current standby mode...
Page 11 Philips Semiconductors Product specification LIN transceiver TJA1020 SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT RSLAVE slave termination standby, low slope or kΩ resistance to pin BAT normal slop...
Page 12 Philips Semiconductors Product specification LIN transceiver TJA1020 SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT ∆tslope(norm) normal slope symmetry normal slope mode; −5 +5 µs CL n F; RL Ω; VBAT ...
Page 13 Philips Semiconductors Product specification LIN transceiver TJA1020 Notes 1. All parameters are guaranteed over the virtual junction temperature by design, but only 100% tested at 125 °C ambient temp...
Page 14 Philips Semiconductors Product specification LIN transceiver TJA1020 handbook, full pagewidth tslope(Rec) tslope(Dom) MGU433 Fig.6 Definition of slope timing. APPLICATION INFORMATION handbook, full pa...
Page 15 Philips Semiconductors Product specification LIN transceiver TJA1020 handbook, full pagewidth NWAKE RL CL TJA1020 TXD CRXDRRXD MGT992 Fig.8 Test circuit for AC characteristics. handbook, full pagewidt...
Page 16 Philips Semiconductors Product specification LIN transceiver TJA1020 BONDING PAD LOCATIONS handbook, full pagewidth MGW322 Fig.10 Bonding pad locations. Table 2 Bonding pad locations (dimensions in µm...
Page 17 Philips Semiconductors Product specification LIN transceiver TJA1020 PACKAGE OUTLINE SO8: plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 (A )3 AA1 pin 1 index detail X 2.5 5 mm scal...
Page 18 Philips Semiconductors Product specification LIN transceiver TJA1020 SOLDERING To overcome these problems the double-wave soldering method was specifically developed. Introduction to soldering surface...
Page 19 Philips Semiconductors Product specification LIN transceiver TJA1020 Suitability of surface mount IC packages for wave and reflow soldering methods SOLDERING METHOD PACKAGE(1) WAVE REFLOW(2) BGA, HTSS...
Page 20 Philips Semiconductors Product specification LIN transceiver TJA1020 DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Objective data Development This data sheet contains da...
Page 21 Philips Semiconductors Product specification LIN transceiver TJA1020 DEFINITIONS Right to make changes  Philips Semiconductors reserves the right to make changes in the products - Short-form specific...
Page 22 Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
