PHILIPS TDA1013B Audio Power Amplifier with DC Volume Control User Guide
Summary
The TDA1013B is a highly reliable, 4W integrated audio power amplifier featuring advanced DC volume control for applications requiring high precision. This component is ideal for building mains and battery-fed electronics like stereo systems and televisions due to its wide operational voltage range (10-40V). The manual provides detailed technical specifications, comprehensive performance data, package outlines, and electrical characteristics, facilitating stable design integration with minimal external components.
Page 1 Text Content
查询TDA1013B供应商
INTEGRATED CIRCUITS
DATA SHEET
TDA1013B 4 W audio power amplifier with DC volume control
Product specification July
File under Integrated Circuits, IC01
Page Summary Contents For PHILIPS TDA1013B Audio Power Amplifier with DC Volume Control User Guide
Page 1

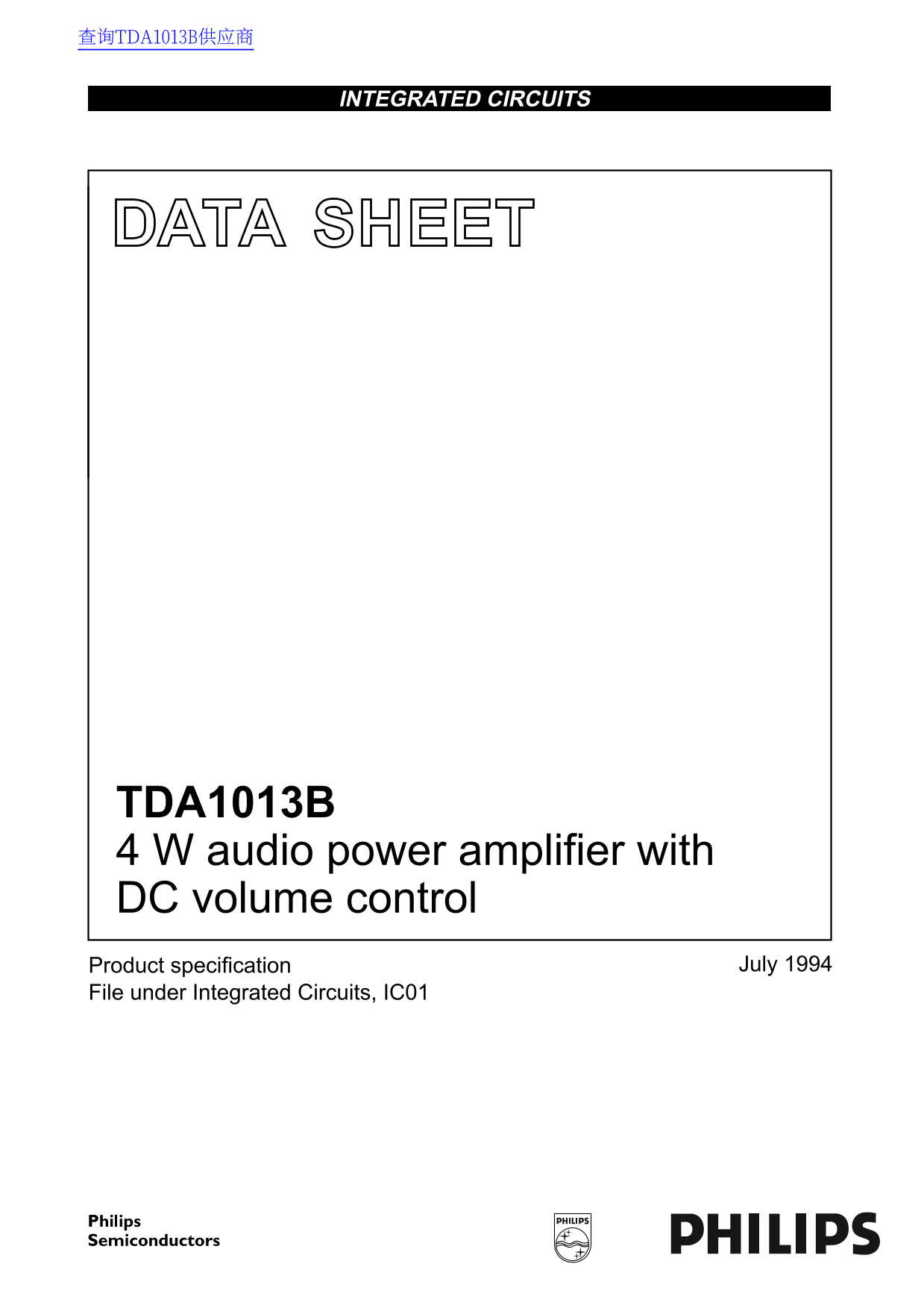

查询TDA1013B供应商 INTEGRATED CIRCUITS DATA SHEET TDA1013B 4 W audio power amplifier with DC volume control Product specification July File under Integrated Circuits, IC01
Page 2
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control GENERAL DESCRIPTION The TDA1013B is an integrated audio amplifier circuit with DC volume control,...
Page 3
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control Fig.1 Block diagram. PINNING 1. power ground 2. amplifier output 3. supply voltage 4. electronic ...
Page 4
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control RATINGS Limiting values in accordance with the Absolute Maximum System (IEC 134) SYMBOL PARAMETER...
Page 5
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control CHARACTERISTICS VP = 18 V; RL = 8 Ω; f = 1 k Hz; Tamb = 25 °C; see Fig.10; unless otherwise speci...
Page 6
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control APPLICATION INFORMATION Fig.3 Output power as a function of supply voltage; f = 1 k Hz; THD = 10%...
Page 7
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control Fig.5 Power bandwidth; VP = 18 V; RL = 8 Ω; THD = 10% and control voltage (V7) = 6.5 V. Fig.6 Tot...
Page 8
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control Fig.7 Total harmonic distortion as a function of output power; VP = 18 V; RL = 8 Ω and control vo...
Page 9
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control Fig.9 Noise output voltage as a function of the control voltage; VP = 18 V; RL = 8 (in accordance...
Page 10
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control se at in pl an PACKAGE OUTLINE SIL9MPF: plastic single in-line medium power package with fin; 9 l...
Page 11
Philips Semiconductors Product specification 4 W audio power amplifier with TDA1013B DC volume control SOLDERING Introduction There is no soldering method that is ideal for all IC packages. Wave solde...
