Philips SAA7360 Bitstream Conversion ADC for Digital Audio Systems Data Sheet
Summary
This datasheet describes the Philips SAA7360 bitstream conversion analog-to-digital converter designed for digital audio systems. It covers the stereo ADC third-order Sigma-Delta modulation technique, 128x oversampling, four-stage digital decimation filter, selectable 16-bit or 18-bit output formats, and support for sampling rates from 18 to 53 kHz for CD-recordable and digital audio playback applications.
Page 1 Text Content
查询SAA7360供应商
INTEGRATED CIRCUITS
DATA SHEET
SAA7360 Bitstream conversion ADC for digital audio systems
Product specification 1995 Apr 24
Supersedes data of July 1993 File under Integrated Circuits, IC01
Philips Semiconductors
Page Summary Contents For Philips SAA7360 Bitstream Conversion ADC for Digital Audio Systems Data Sheet

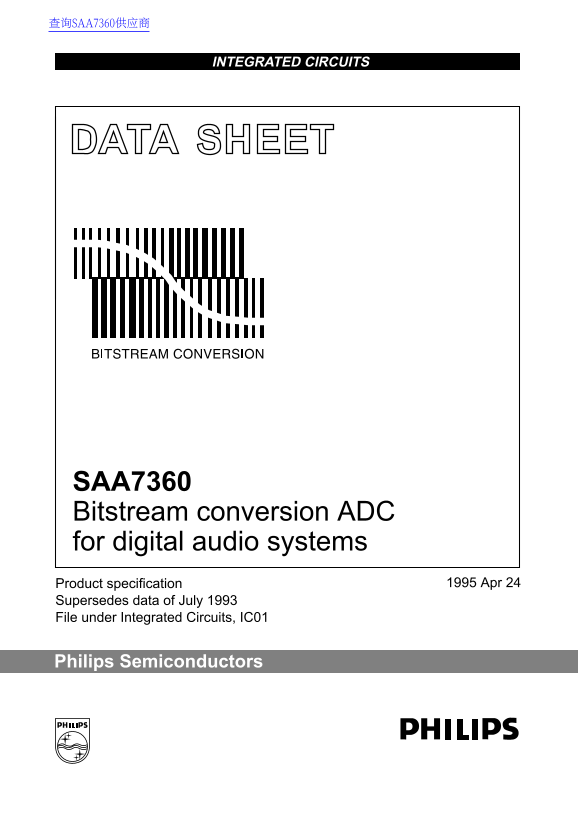

Page 1
查询SAA7360供应商 INTEGRATED CIRCUITS DATA SHEET SAA7360 Bitstream conversion ADC for digital audio systems Product specification 1995 Apr 24 Supersedes data of July 1993 File under Integrated Circuits, IC...
Page 2
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems FEATURES Stereo input Single-ended input Uncommitted input buffer for filtering and pre-scaling ...
Page 3
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems IN IN IO IN BLOCK DIAGRAM IL IM IN re f L re f L IM IN 1s 2n 8f IG IM IO IM IO IL IL re f L re f...
Page 4
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems PINNING SYMBOL PIN DESCRIPTION FSEL Crystal frequency select input. This pin is used to select t...
Page 5
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems SYMBOL PIN DESCRIPTION HPEN high-pass filter enable input (HPEN HIGH enabled); if unconnected th...
Page 6
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems FUNCTIONAL DESCRIPTION allow a headroom of 1 d B to prevent clipping with DC offsets. General Th...
Page 7
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems Table 1 Output data formats Reset ODF2 ODF1 MODE When pin RESET is held LOW the data outputs are...
Page 8
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Digital part inputs FSEL, HPEN, DSEL, TSEL, WSEL...
Page 9
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Input/outputs DIOR and DIOL VIL LOW level input ...
Page 10
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT DATA DIOL AND DIOR tdor data output rise time no...
Page 11
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Analog part VOLTAGE REFERENCE Vref L AND Vref R ...
Page 12
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems 14. Typical values are for 18-bit performance, minimum and/or maximum values are for 16-bit perf...
Page 13
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems clock period TDCK handbook, full pagewidth V 1 VDD V 1 VDD DIOL and DIOR MLA717 Fig.4 One bit co...
Page 14
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems clock period TSCK handbook, full pagewidth SCKO/SCKI SWSO/SWSI or SDO 0.8 V MLA719 Fig.6 Serial ...
Page 15
Philips Semiconductors Product specification Bitstream conversion ADC L) SAA7360 for digital audio systems kΩ µF µF kΩ APPLICATION INFORMATION IN IN IL IR IN IN re f L re f R kΩ to er ia in te rf ac 2...
Page 16
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems PACKAGE OUTLINE QFP44: plastic quad flat package; 44 leads (lead length 2.35 mm); body 14 x 14 x...
Page 17
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems SOLDERING applied to the substrate by screen printing, stencilling or pressure-syringe dispensin...
Page 18
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems NOTES 1995 Apr 24
Page 19
Philips Semiconductors Product specification Bitstream conversion ADC SAA7360 for digital audio systems NOTES 1995 Apr 24
Page 20
Philips Semiconductors – a worldwide company Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428) Pakistan: Philips Electrical Industries of Pakistan Ltd., BUENOS AIRES, Tel. (541)786 7633, Fax. (541)7...
