Philips SAA5264 SAA5265 Intelligent Teletext Decoders
Summary
Philips SAA5264 and SAA5265 are single-chip intelligent teletext decoders for 625-line World System Teletext with high-level I2C-bus command interface. The SAA5264 decodes 10 pages with Fastext, TOP, list acquisition, and default modes plus OSD and VChip support, while the SAA5265 provides single-page decoding with Fastext and OSD. Both feature automatic detection of Fastext links and service information, VPS and WSS decoding, multiple character sets including Cyrillic and Greek, RGB interface to standard colour decoders, and a versatile 8-bit I/O expander. Operating at 3.3V with a 12MHz crystal, they target TV manufacturers implementing cost-effective teletext functionality.
Page 1 Text Content
查询SAA5264供应商
INTEGRATED CIRCUITS
DATA SHEET
SAA5264; SAA5265 10 and 1 page intelligent teletext decoders Preliminary specification Jan Supersedes data of 1999 Oct 05 File under Integrated Circuits, IC02
Page Summary Contents For Philips SAA5264 SAA5265 Intelligent Teletext Decoders
Page 1

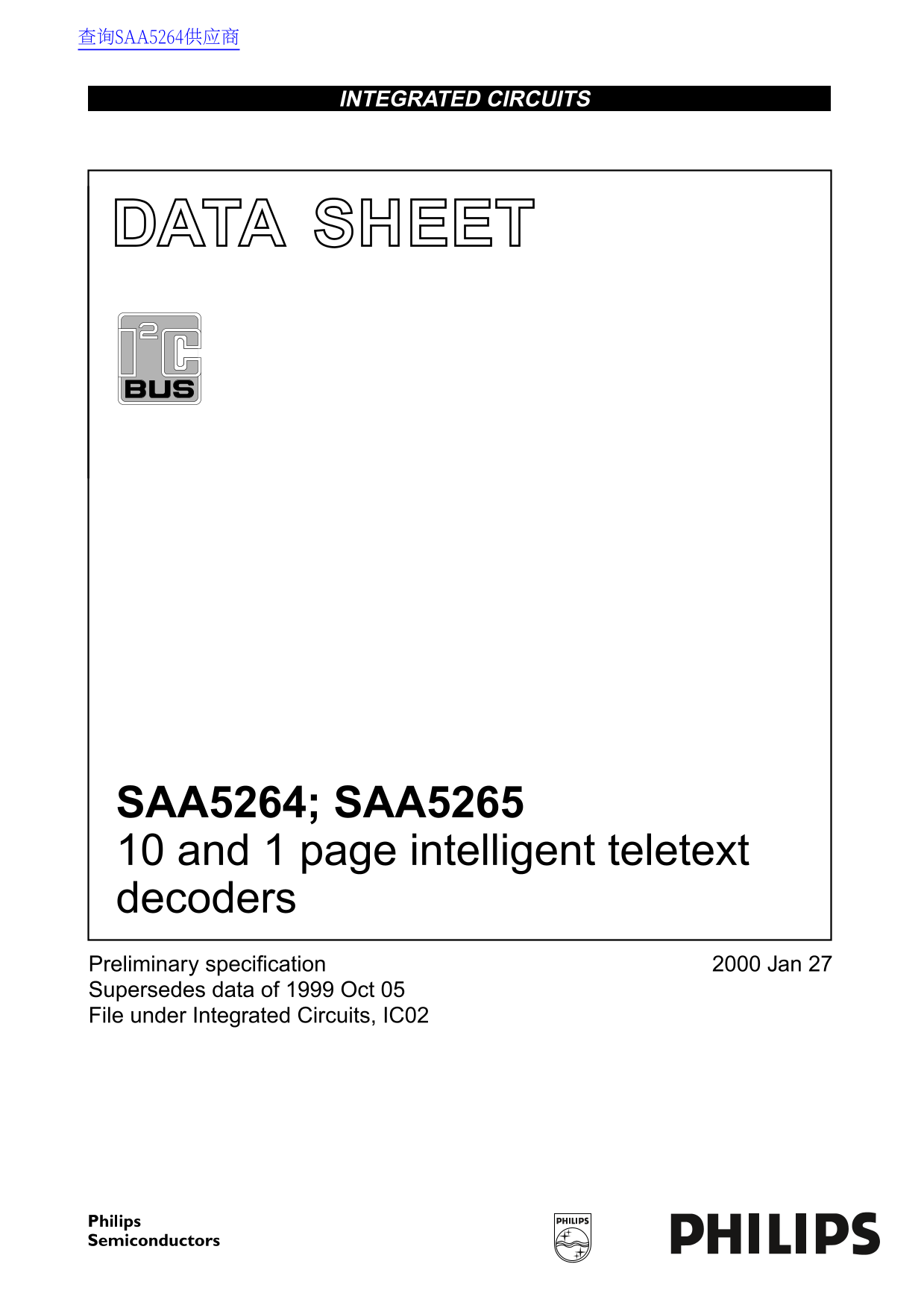

查询SAA5264供应商 INTEGRATED CIRCUITS DATA SHEET SAA5264; SAA5265 10 and 1 page intelligent teletext decoders Preliminary specification Jan Supersedes data of 1999 Oct 05 File under Integrated Circuits, IC...
Page 2
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 FEATURES The following features apply to both SAA5264 and SAA5265: Complete line teletext ...
Page 3
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 ORDERING INFORMATION PACKAGE TYPE NUMBER(1) NAME DESCRIPTION VERSION SAA5264PS/M3/nnnn SDI...
Page 4
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 BLOCK DIAGRAM handbook, full pagewidth TV CONTROL I2C-bus, general I/O INTERFACE MICROCONT...
Page 5
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 PINNING SYMBOL PIN TYPE DESCRIPTION Port 2: 8-bit programmable bidirectional port with alt...
Page 6
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 SYMBOL PIN TYPE DESCRIPTION Green colour information pixel rate output Red colour informat...
Page 7
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 handbook, halfpage P2.0/PWM P1.5 P2.1/PWM0 P1.4 P2.2/PWM1 SDA P2.3/PWM2 SCL P2.4/PWM3 P1.3...
Page 8
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 HIGH LEVEL COMMAND INTERFACE The I2C-bus interface is used to pass control commands and da...
Page 9
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 CHARACTERISTICS VDD 3.3 ±10%; VSS V; Tamb −20 to +70 °C; unless otherwise specified. SYMBO...
Page 10
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT COR (OPEN-DRAIN OUTPUT, PIN 29) VOL LOW-le...
Page 11
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT VOL LOW-level output IOL m A 0.17 voltage ...
Page 12
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Analog inputs CVBS0 AND CVBS1(PINS AND 24)...
Page 13
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Crystal oscillator XTALIN (PIN 41) VIL LOW...
Page 14
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 I2C-BUS CHARACTERISTICS FAST-MODE I2C-bus SYMBOL PARAMETER UNIT MIN. MAX. f SCL SCL clock ...
Page 15
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 EMC GUIDELINES Using a device socket would increase the area and therefore increase the in...
Page 16
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 QUALITY AND RELIABILITY This device will meet Philips Semiconductors general quality speci...
Page 17
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to be ro ta te ...
Page 18
se at in pl an Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 PACKAGE OUTLINE SDIP52: plastic shrink dual in-line package; 52 leads (600 ...
Page 19
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 SOLDERING The total contact time of successive solder waves must not exceed 5 seconds. Int...
Page 20
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 DEFINITIONS Data sheet status Objective specification This data sheet contains target or g...
Page 21
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 NOTES
Page 22
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 NOTES
Page 23
Philips Semiconductors Preliminary specification 10 and 1 page intelligent teletext decoders SAA5264; SAA5265 NOTES
Page 24
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
