PHILIPS PZUxB series Single Zener diodes in a SOD323F package Rev. 01 — 7 March 2006 Product data sheet
Summary
These single Zener diodes are general-purpose components designed for voltage regulation in a highly compact, surface-mounted SOD323F package. Offering wide working voltages from 2.4 V to 36 V and low power dissipation, they are ideal for circuit designers requiring reliable, miniature regulatory functions on PCBs. The accompanying manual provides comprehensive technical data, including detailed electrical characteristics, thermal limits, safe operating guidelines, ordering information, and application guidance.

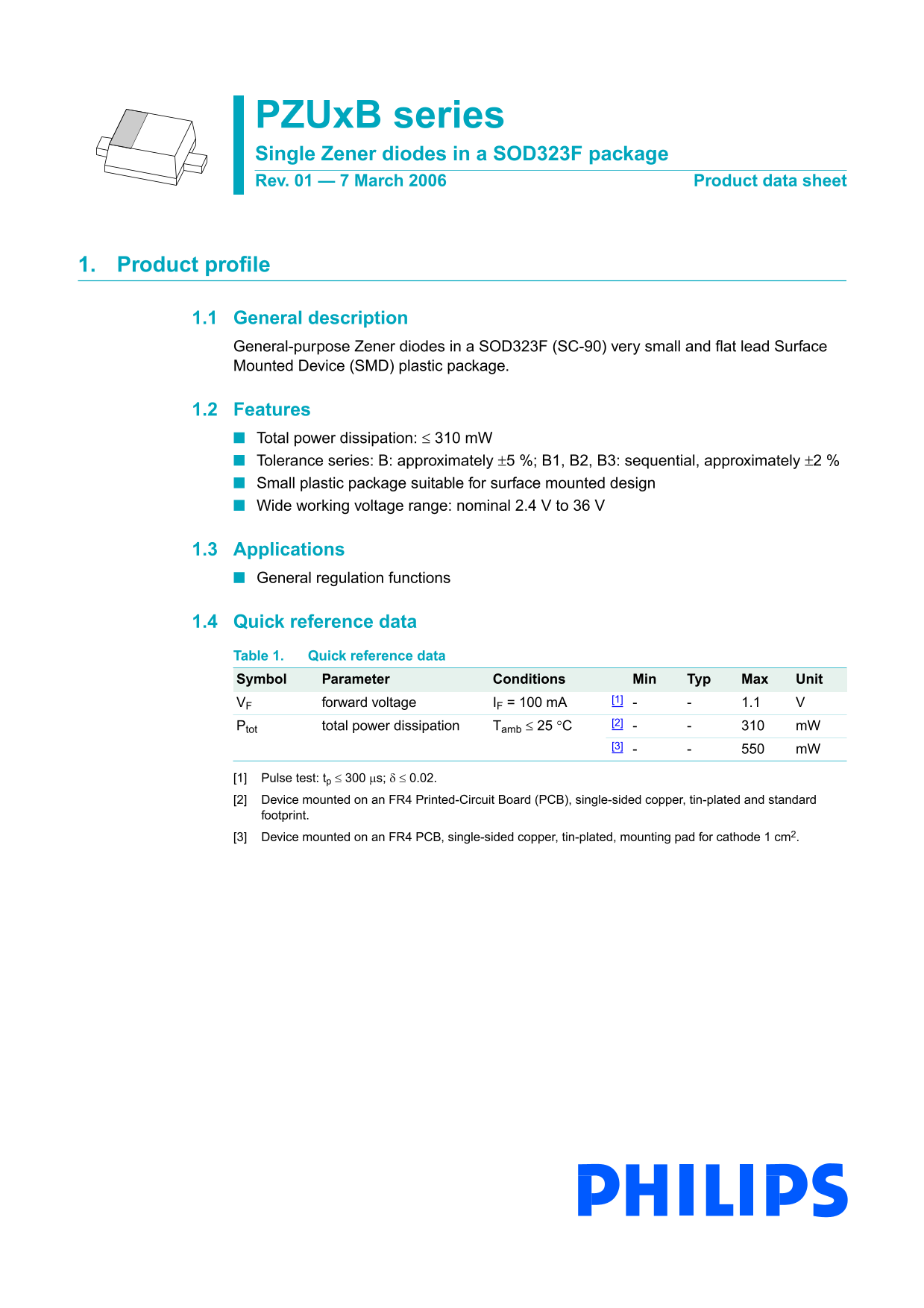

Page 1 Text Content
PZUx B series Single Zener diodes in a SOD323F package Rev. 01 — 7 March 2006 Product data sheet
1. Product profile
1.1 General description General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package.
1.2 Features Total power dissipation: m W Tolerance series: B: approximately ±5 %; B1, B2, B3: sequential, approximately ±2 Small plastic package suitable for surface mounted design Wide working voltage range: nominal 2.4 V to 36
1.3 Applications General regulation functions
1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VF forward voltage IF m A 1.1
Ptot total power dissipation Tamb °C m W
[1] Pulse test: tp µs; 0.02. [2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2.
Page Summary Contents For PHILIPS PZUxB series Single Zener diodes in a SOD323F package Rev. 01 — 7 March 2006 Product data sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 64.61 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What kind of package is this Zener diode in?
It comes in a SOD323F (SC-90) surface mounted device plastic package.
What is the total power dissipation limit at 25 °C ambient temperature?
The maximum total power dissipation is 310 mW at T ≤ 25 °C and an ambient temperature of tot amb.
What range of working voltages do these diodes cover?
They offer a wide working voltage range, nominally from 2.4 V to 36 V.
How should I mount this device on a PCB?
It is designed for mounting on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated surface mounted design.
