PHILIPS OM4085 Universal LCD Driver Manual for Low Multiplex Rates
Summary
Product specification datasheet (February 1997) for the Philips OM4085 Universal LCD driver IC, a single-chip LCD controller/driver for low multiplex rate displays. Features: 24 segment drives supporting up to twelve 8-segment numeric characters, six 15-segment alphanumeric characters, or any graphics of up to 96 elements, selectable backplane configurations (static, 2/3/4 backplane multiplexing), selectable display bias (static, 1/2, 1/3), internal LCD bias generation with voltage-follower buff
Page 1 Text Content
查询OM4085供应商
INTEGRATED CIRCUITS
DATA SHEET
OM4085 Universal LCD driver for low multiplex rates
Product specification Feb
Supersedes data of 1996 Nov File under Integrated Circuits, IC12
Page Summary Contents For PHILIPS OM4085 Universal LCD Driver Manual for Low Multiplex Rates
Page 1

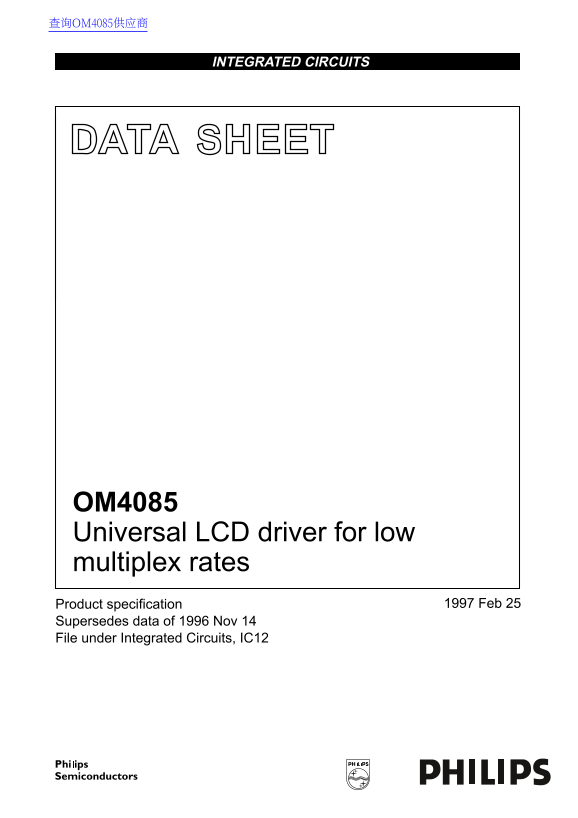

查询OM4085供应商 INTEGRATED CIRCUITS DATA SHEET OM4085 Universal LCD driver for low multiplex rates Product specification Feb Supersedes data of 1996 Nov File under Integrated Circuits, IC12
Page 2
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates FEATURES Single-chip LCD controller/driver Selectable backplane drive configuration: static or 2, or ba...
Page 3
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to ro ta te co ...
Page 4
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates PINNING SYMBOL PIN DESCRIPTION SDA I2C-bus data input/output handbook, halfpage SCL I2C-bus clock input...
Page 5
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates FUNCTIONAL DESCRIPTION All of the display configurations given in Table 1 can be implemented in the typ...
Page 6
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Power-on reset LCD voltage selector At power-on the OM4085 resets to a defined starting The LCD voltage...
Page 7
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates LCD drive mode waveforms The static LCD drive mode is used when a single backplane is provided in the L...
Page 8
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Tframe handbook, full pagewidth VDD LCD segments BP0 (VDD + VLCD)/2 VLCD state 1 state 2 BP1 (VDD + VLC...
Page 9
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Tframe handbook, full pagewidth LCD segments VDD − Vop/3 VDD − 2Vop/3 VLCD state 1 state 2 VDD − Vop/3 ...
Page 10
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Tframe handbook, full pagewidth LCD segments VDD − Vop/3 VDD − 2Vop/3 VLCD state 1 state 2 VDD − Vop/3 ...
Page 11
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Tframe handbook, full pagewidth VDD LCD segments VDD − Vop/3 VDD − 2Vop/3 VLCD state 1 state 2 VDD − Vo...
Page 12
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Oscillator The lower clock frequency has the disadvantage of increasing the response time when large am...
Page 13
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates There is a one-to-one correspondence between the RAM The sequence commences with the initialization of ...
Page 14
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to ro ta te co ...
Page 15
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Output bank selector Blinker This selects one of the four bits per display RAM address The display blin...
Page 16
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates I2C-BUS DESCRIPTION Acknowledge The I2C-bus is for 2-way, 2-line communication between The number of da...
Page 17
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates SDA SDA SCL SCL START condition STOP condition MBA608 Fig.12 Definition of START and STOP conditions. M...
Page 18
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates OM4085 I2C-bus controller The I2C-bus protocol is shown in Fig.15. The sequence is initiated with a STA...
Page 19
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates handbook, full pagewidth acknowledge acknowledge by by A0, A1 and A2 all addressed selected /R OM4085s ...
Page 20
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Table 5 Definition of OM4085 commands COMMAND/OPCODE OPTIONS DESCRIPTION Mode set LP M1 M0 see Table de...
Page 21
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Table 7 LCD bias configuration Table 15 Blink mode selection LCD BIAS BIT BLINK MODE BIT 1⁄3bias Normal...
Page 22
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates handbook, full pagewidth VDD VLCD SCL 17 to 40 24 segment drives LCD PANEL OM4085 CLK (up to 1536 13 to...
Page 23
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates handbook, full pagewidth =frame frame (a) static drive mode. BP1 (1/2 bias) BP1 (1/3 bias) (b) 1 : 2 mu...
Page 24
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL PARAMETER MIN. ...
Page 25
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates DC CHARACTERISTICS VSS V; VDD 2.0 to V; VLCD VDD 2.0 to VDD V; Tamb −40 to +85 °C; unless otherwise spe...
Page 26
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates AC CHARACTERISTICS VSS V; VDD 2.0 to V; VLCD VDD 2.0 to VDD V; Tamb −40 to +85 °C; unless otherwise spe...
Page 27
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates handbook, full pagewidth f CLK t CLKH t CLKL 0.7VDD 0.3VDD 0.7VDD 0.3VDD t PSYNC t SYNCL BP0 to BP3 (VD...
Page 28
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates MGG397 MGG398 handbook, halfpage handbook, halfpage VDD (V) VDD (V) a. Normal mode; VLCD V; b. Low powe...
Page 29
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to ro ta te co ...
Page 30
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates CHIP DIMENSIONS AND BONDING PAD LOCATIONS 2.5 mm(1) handbook, full pagewidth S9 BP2 S10 BP0 S11 VLCD S1...
Page 31
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates Table 16 Bonding pad locations (dimensions in mm) All x/y coordinates are referenced to centre of chip,...
Page 32
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates PACKAGE OUTLINE VSO40: plastic very small outline package; 40 leads SOT158-1 pin 1 index detail X 10 mm...
Page 33
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates SOLDERING Wave soldering Introduction Wave soldering techniques can be used for all VSO packages if the...
Page 34
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates DEFINITIONS Data sheet status Objective specification This data sheet contains target or goal specifica...
Page 35
Philips Semiconductors Product specification Universal LCD driver for low multiplex OM4085 rates NOTES
Page 36
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 34 Waterloo Road, NORTH RYDE, NSW...
