Service manual for Philips Perfect Draft HD3620/20 domestic appliance providing technical information and repair procedures for service technicians. Details product specifications including 70W power consumption, 0.062 kWh cool-down period energy consumption (keg 23°C → 3°C), 0.042 kWh standby period consumption (keg on 3°C), 100-120V/200-240V 50/60Hz voltage compatibility, 2 L/minute flow rate, 6L keg capacity, and black/metal color setting. Provides disassembly/reassembly procedures including

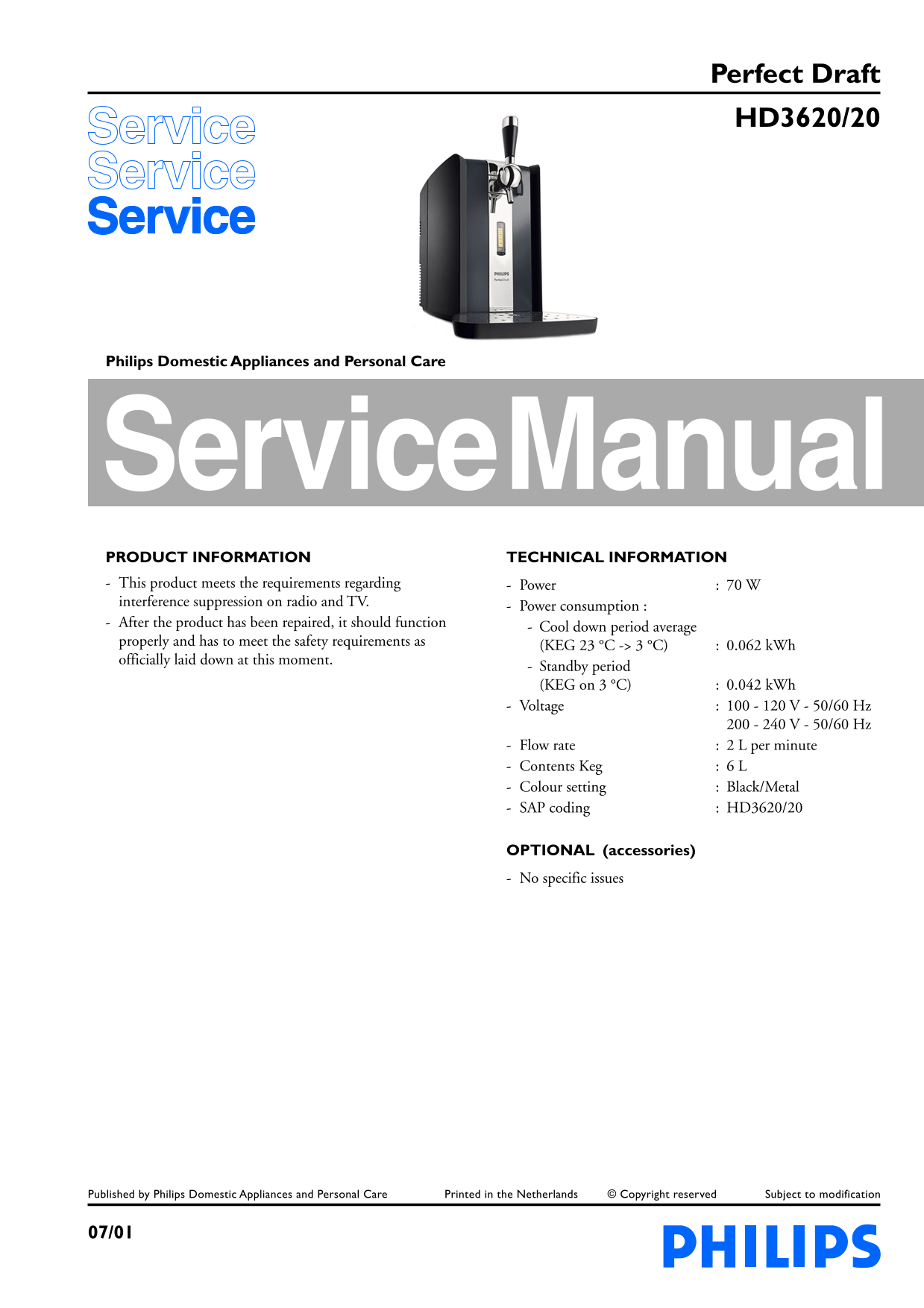

Page 1 Text Content
Perfect Draft
HD3620/20
Philips Domestic Appliances and Personal Care
Service Manual PRODUCT INFORMATION TECHNICAL INFORMATION - This product meets the requirements regarding - Power : 70 W interference suppression on radio and TV.
- Power consumption :
- After the product has been repaired, it should function
- Cool down period average
properly and has to meet the safety requirements as
(KEG 23 °C -> 3 °C) : 0.062 k Wh
officially laid down at this moment.
- Standby period (KEG on 3 °C) : 0.042 k Wh - Voltage : 100 - 120 V - 50/60 Hz 200 - 240 V - 50/60 Hz - Flow rate : 2 L per minute - Contents Keg : 6 L - Colour setting : Black/Metal - SAP coding : HD3620/20
OPTIONAL (accessories) - No specific issues
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Page Summary Contents For Philips HD3620 20 User Guide
Manual Details
| Brand | Philips |
|---|---|
| Pages | 13 |
| File Size | 428.67 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What causes inaccurate volume readings on the machine?
The volume indication is only a rough estimate and can become inaccurate due to problems with air leakage in the system.
If there is no foam when dispensing beer, what should I check?
Please verify that the beer temperature is below 9°C, that glasses are clean, or that the tube connector is properly installed/undamaged.
What components must be checked if the fan or Peltier element fails?
If either component requires replacement, you must also thoroughly check or replace the other one due to risk of damage from overheating.
Does this appliance support multiple voltage standards?
Yes, it is compatible with 100-120 V - 50/60 Hz and 200-240 V - 50/60 Hz.
