This datasheet describes the Philips BUK130-50DL logic level TOPFET, a monolithic temperature and overload-protected power MOSFET in TOPFET2 technology assembled in a 3-pin SOT404 surface-mount plastic package. The device is an SMD version of the BUK119-50DL, rated for 50V continuous drain-source voltage and 20A continuous drain current (self-limited at 25°C) with 28mΩ maximum on-state resistance. Total power dissipation is 90W at 25°C mounting base temperature. The TrenchMOS output stage featur

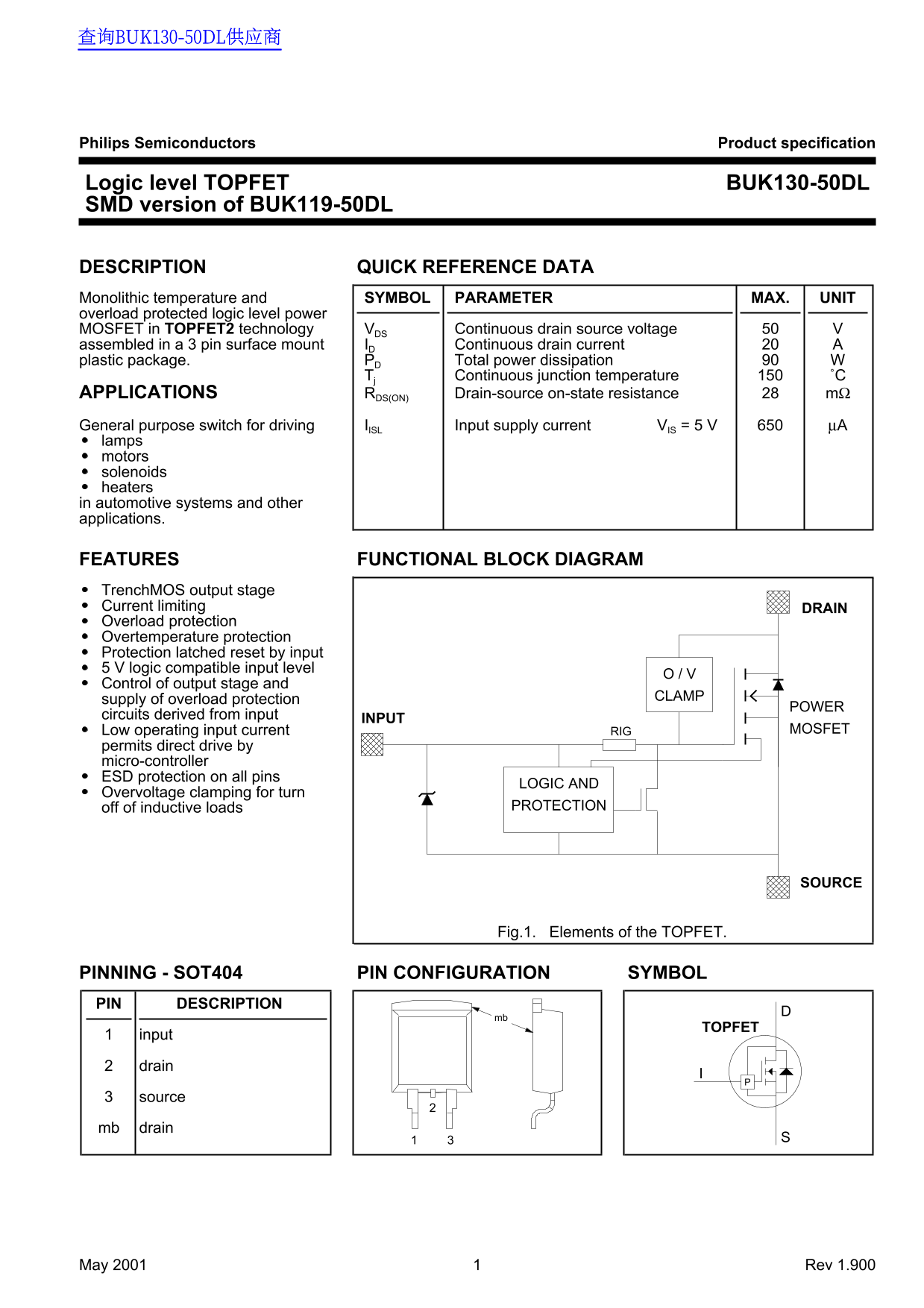

Page 1 Text Content
查询BUK130-50DL供应商
Philips Semiconductors Product specification
Logic level TOPFET BUK130-50DL SMD version of BUK119-50DL
DESCRIPTION QUICK REFERENCE DATA Monolithic temperature and SYMBOL PARAMETER MAX. UNIT overload protected logic level power
MOSFET in TOPFET2 technology VDS Continuous drain source voltage
assembled in a 3 pin surface mount ID Continuous drain current
plastic package. PD Total power dissipation
Tj Continuous junction temperature ˚C
APPLICATIONS RDS(ON) Drain-source on-state resistance mΩ
General purpose switch for driving IISL Input supply current VIS = 5 V µA
lamps motors solenoids heaters in automotive systems and other applications.
FEATURES FUNCTIONAL BLOCK DIAGRAM Trench MOS output stage Current limiting DRAIN Overload protection Overtemperature protection Protection latched reset by input 5 V logic compatible input level
Control of output stage and
supply of overload protection CLAMP
POWER
circuits derived from input
INPUT
Low operating input current RIG MOSFET
permits direct drive by micro-controller ESD protection on all pins
LOGIC AND
Overvoltage clamping for turn
off of inductive loads PROTECTION
SOURCE
Fig.1. Elements of the TOPFET.
PINNING - SOT404 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
TOPFET
input
drain source mb drain
May 2001 Rev 1.900
Page Summary Contents For PHILIPS Buk130-50DL Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 6 |
| File Size | 33.45 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What voltage range controls the TOPFET's output stage?
The control logic requires a drain source voltage (V DS) between 4 V and 5.5 V to operate correctly.
Is this device safe for use in life support equipment?
No, the product specification warns that these devices are not designed for use in life support appliances or systems.
How does the TOPFET protect against overheating?
It features overload protection and an overtemperature trip point (T(TO)) to safeguard the switch from excessive heat.
