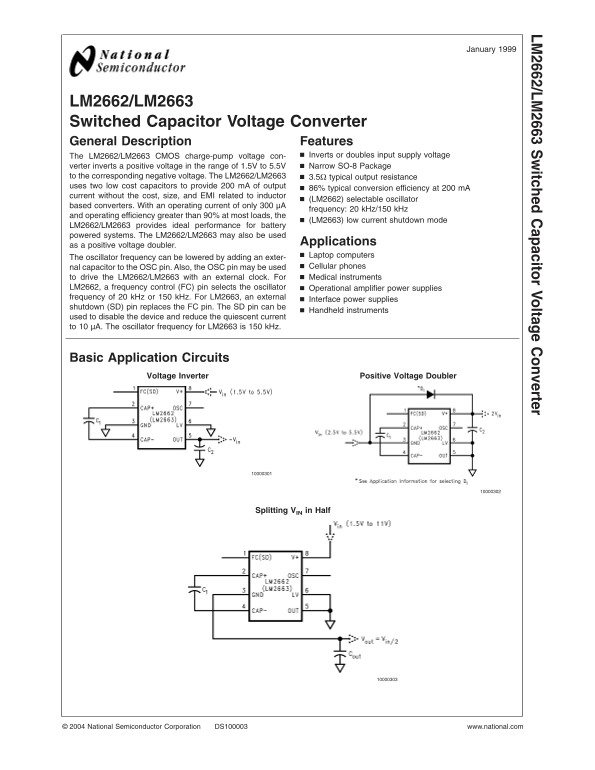

National Semiconductor - LM2662 LM2663 Switched Capacitor Voltage Converter Data Sheet Manual
Summary
This advanced voltage converter utilizes compact, charge-pump technology to efficiently invert or double a positive input supply voltage (1.5V–5.5V) without requiring bulky inductors. Featuring ultra-low power modes and high conversion efficiencies, it is optimized for demanding battery-powered systems. This comprehensive manual provides technical specifications, detailed application circuits, and operational guidelines necessary for designing reliable power solutions in medical instruments, cellular phones, laptops, and handheld electronics.
Manual Details
| Brand | National |
|---|---|
| Pages | 12 |
| File Size | 346.87 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I achieve a low current shutdown mode?
For battery systems, the LM2663 uses an external Shutdown (SD) pin to reduce the quiescent current to 10 µA.
Where can this voltage converter be used?
It is suitable for applications like laptop computers and medical instruments.
What are the recommended conditions when operating at high temperatures?
For temperatures above 85˚C, do not short OUT to GND or V+, as the device may be damaged.
How can I modify the oscillator frequency?
The frequency can be lowered by adding an external capacitor to the OSC pin.
