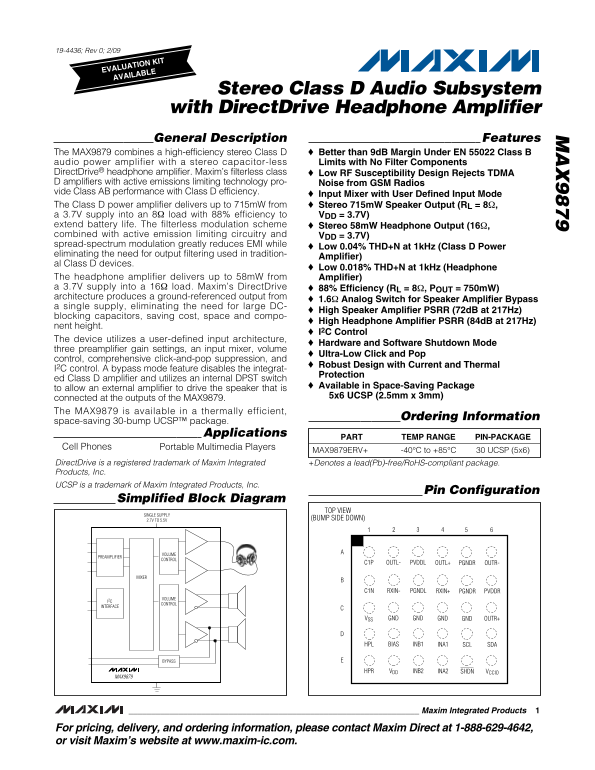

Page 1 Text Content
19-4436; Rev 0; 2/09
EVALUATION KIT AVAILABLE
Stereo Class D Audio Subsystem with Direct Drive Headphone Amplifier General Description Features
The MAX9879 combines a high-efficiency stereo Class D Better than 9d B Margin Under EN 55022 Class B audio power amplifier with a stereo capacitor-less Limits with No Filter Components Direct Drive® headphone amplifier. Maxim’s filterless class Low RF Susceptibility Design Rejects TDMA D amplifiers with active emissions limiting technology pro- Noise from GSM Radios vide Class AB performance with Class D efficiency.
Input Mixer with User Defined Input Mode
The Class D power amplifier delivers up to 715m W from Stereo 715m W Speaker Output (RL = 8Ω, a 3.7V supply into an 8Ω load with 88% efficiency to VDD = 3.7V) extend battery life. The filterless modulation scheme Stereo 58m W Headphone Output (16Ω, combined with active emission limiting circuitry and VDD = 3.7V) spread-spectrum modulation greatly reduces EMI while
Low 0.04% THD+N at 1k Hz (Class D Power
eliminating the need for output filtering used in tradition-
Amplifier)
al Class D devices.
Low 0.018% THD+N at 1k Hz (Headphone
The headphone amplifier delivers up to 58m W from Amplifier) a 3.7V supply into a 16Ω load. Maxim’s Direct Drive 88% Efficiency (RL = 8Ω, POUT = 750m W) architecture produces a ground-referenced output from
1.6Ω Analog Switch for Speaker Amplifier Bypass
a single supply, eliminating the need for large DC-
High Speaker Amplifier PSRR (72d B at 217Hz)
blocking capacitors, saving cost, space and compo-
High Headphone Amplifier PSRR (84d B at 217Hz)
nent height.
I2C Control
The device utilizes a user-defined input architecture,
Hardware and Software Shutdown Mode
three preamplifier gain settings, an input mixer, volume
Ultra-Low Click and Pop
control, comprehensive click-and-pop suppression, and
Robust Design with Current and Thermal
I2C control. A bypass mode feature disables the integrat-
Protection
ed Class D amplifier and utilizes an internal DPST switch
Available in Space-Saving Package
to allow an external amplifier to drive the speaker that is
5x6 UCSP (2.5mm x 3mm)
connected at the outputs of the MAX9879. The MAX9879 is available in a thermally efficient,
Ordering Information
space-saving 30-bump UCSP™ package.
Applications
PART TEMP RANGE PIN - PA C K A G E
Cell Phones Portable Multimedia Players
MAX9879ERV+ -40°C to +85°C 30 UCSP (5x6)
Direct Drive is a registered trademark of Maxim Integrated +Denotes a lead(Pb)-free/Ro HS-compliant package. Products, Inc. UCSP is a trademark of Maxim Integrated Products, Inc.
Pin Configuration
Simplified Block Diagram
TOP VIEW
SINGLE SUPPLY
2.7V TO 5.5V (BUMP SIDE DOWN)
VOLUME
PREAMPLIFIER
CONTROL
OUTL- PVDDL OUTL+C1P PGNDR OUTR-
MIXER
RXIN- PGNDL RXIN+C1N PGNDR PVDDR
VOLUME
CONTROL
INTERFACE
GND GND GNDVSS GND OUTR+
BIAS INB1 INA1HPL SCL SDA
BYPASS
VDD INB2 INA2HPR SHDN VCCIO
MAX9879
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
