LG E2342T-BN.ACH Monitor User's Manual English
Summary
Comprehensive guide for operating your professional digital monitor set. This manual covers everything from initial unpacking and safe assembly—including table and wall mounting instructions—to detailed operation. Learn how to connect the unit, customize display settings, select optimal resolutions, and maintain proper ergonomic posture for prolonged use. Essential reading for users requiring a complete understanding of setup and advanced features.
Page 1 Text Content
EN LIS

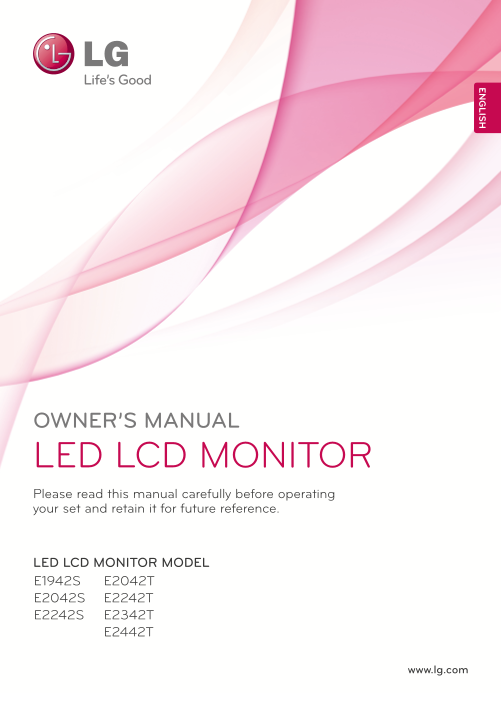

OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference.
LED LCD MONITOR MODEL E1942S E2042T E2042S E2242T E2242S E2342T E2442T
www.lg.com
Page Summary Contents For LG E2342T-BN.ACH Monitor User's Manual English
Page 1
EN LIS OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODEL E1942S E2042T E2042S E2242T E2242S E2342T E2...
Page 2
TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPARING 21 SPECIFICATIONS 3 Unpacking 21 E1942S 4 Parts and buttons 22 E2042S 5 Setting up the Monitor set 23 E2042T 5 - Attaching the Stand Base 24 E2242...
Page 3
EN EN LIS ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased...
Page 4
ASSEMBLING AND PREPARING Parts and buttons Power Indicator Lighting On: Turned on Lighting Off: Turned off (Power Button) Button (See p.11) EN EN LIS Connection panel (See p.9)
Page 5
EN EN LIS ASSEMBLING AND PREPARING Setting up the Monitor set Detaching the Stand Base Attaching the Stand Base 1 Place the Monitor set with the screen side down on a flat and cushioned surface. 1 Pla...
Page 6
ASSEMBLING AND PREPARING Mounting on a table 3 Press (Power) button on the bottom switch panel to turn the power on. 1 Lift and tilt the Monitor set into its upright position on a table. Leave a 10 cm...
Page 7
EN EN LIS ASSEMBLING AND PREPARING WARNING Using the Kensington security system The Kensington security system connector is When you adjust the angle, do not hold the bottom of the Monitor set frame a...
Page 8
ASSEMBLING AND PREPARING Mounting on a wall Model For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the VESA ...
Page 9
EN EN LIS USING THE MONITOR SET USING THE MONITOR SET Connecting to a PC When using a D-Sub signal input cable Your Monitor set supports Plug & Play*. connector for Macintosh *Plug & Play: A P...
Page 10
USING THE MONITOR SET Self Image Setting Function CAUTION Press the power button on the bottom panel to turn the power on. When monitor power is turned Connect the signal on, the "Self Image Sett...
Page 11
EN EN LIS CUSTOMIZING SETTINGS CUSTOMIZING SETTINGS 1 Press the desired button on the bottom of the Monitor set. 2 Change the value of the menu item by pressing the buttons on the bottom of the Monito...
Page 12
CUSTOMIZING SETTINGS Customizing Settings Menu Settings 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Set the options by pressing the ◄ or ► or ▼ buttons. 3 Select th...
Page 13
EN EN LIS CUSTOMIZING SETTINGS PICTURE 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Select the "NEXT MENU" button to enter the more option settings. 3 Ente...
Page 14
CUSTOMIZING SETTINGS COLOR 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Select the "NEXT MENU" button to enter the more option settings. 3 Select COLOR by ...
Page 15
EN EN LIS CUSTOMIZING SETTINGS DISPLAY 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Select the "NEXT MENU" button to enter the more option settings. 3 Sele...
Page 16
CUSTOMIZING SETTINGS OTHERS 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Select the "NEXT MENU" button to enter the more option settings. 3 Select OTHERS b...
Page 17
EN EN LIS CUSTOMIZING SETTINGS SUPER ENERGY SAVING Setting 1 Press ( SUPER ENERGY SAVING ) button on the bottom of the Monitor set to display the SUPER ENERGY SAVING OSD. 2 Set the options by pressing...
Page 18
CUSTOMIZING SETTINGS PICTURE MODE Setting 1 Press MODE button on the bottom of the Monitor set to display the PICTURE MODE OSD . 2 Set the options by pressing the ◄ or ► or ▼ buttons. 3 Select EXIT to...
Page 19
EN EN LIS TROUBLESHOOTING TROUBLESHOOTING Check the following before calling for service. No image appears Is the power cord of the display Check and see if the power cord is connected properly to the...
Page 20
TROUBLESHOOTING CAUTION Check Control Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution. If the recommende...
Page 21
EN EN LIS SPECIFICATIONS SPECIFICATIONS E1942S Display Screen Type 47.0 cm (18.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 47.0 cm Pixel Pitch 0.3 mm x 0.3 mm (P...
Page 22
SPECIFICATIONS SPECIFICATIONS E2042S Display Screen Type 50.8 cm (20 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 50.8 cm Pixel Pitch 0.276 mm x 0.276 mm (Pixel Pit...
Page 23
EN EN LIS SPECIFICATIONS SPECIFICATIONS E2042T Display Screen Type 50.8 cm (20 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 50.8 cm Pixel Pitch 0.276 mm x 0.276 mm ...
Page 24
SPECIFICATIONS SPECIFICATIONS E2242S Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 54.6 cm Pixel Pitch 0.247 mm x 0.247 mm (Pixel P...
Page 25
EN EN LIS SPECIFICATIONS SPECIFICATIONS E2242T Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 54.6 cm Pixel Pitch 0.247 mm x 0.247 m...
Page 26
SPECIFICATIONS SPECIFICATIONS E2342T Display Screen Type 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 58.4 cm Pixel Pitch 0.265 mm x 0.265 mm (Pixel Pit...
Page 27
EN EN LIS SPECIFICATIONS SPECIFICATIONS E2442T Display Screen Type 60.9 cm (24 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 60.9 cm Pixel Pitch 0.277 mm x 0.277 mm ...
Page 28
SPECIFICATIONS Preset Modes (Resolution) Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(k Hz) Frequency(Hz) 720 x 400 31.468 640 x 480 31.469 640 x 480 37.500 800 x 600 37.879 ...
Page 29
EN EN LIS SPECIFICATIONS Preset Modes (Resolution) Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(k Hz) Frequency(Hz) 720 x 400 31.468 640 x 480 31.469 640 x 480 37.500 800 x 6...
Page 30
PROPER POSTURE PROPER POSTURE Proper posture for using the Monitor set. Adjust the Adjust the location of the Monitor set and Monitor set to avoid it your posture to reflecting light. allow you to vie...
Page 31
Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual (CD) in an accessible ENERGY STAR is a set of power-saving place for future reference. guidelines issued by t...
