Juki Automatic Sewing Machine AMB-289 User Manual

Summary

Master advanced precision stitching with this comprehensive operator manual for the AMB-289/IP-4201 sewing machine. This guide provides detailed, step-by-step instructions covering the entire range of operational functions, from pattern registration and copying to complex data setting for specialized stitches like neck wrapping and blindstitching. Users will learn how to accurately set thread tensions, adjust mechanical parameters (including chucking and needle points), and troubleshoot a variety of sensor error codes, ensuring optimal performance in professional textile production environments.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 11 ›
‹ Juki Automatic Sewing Machine AMB-289 User Manual - Page 1 ›

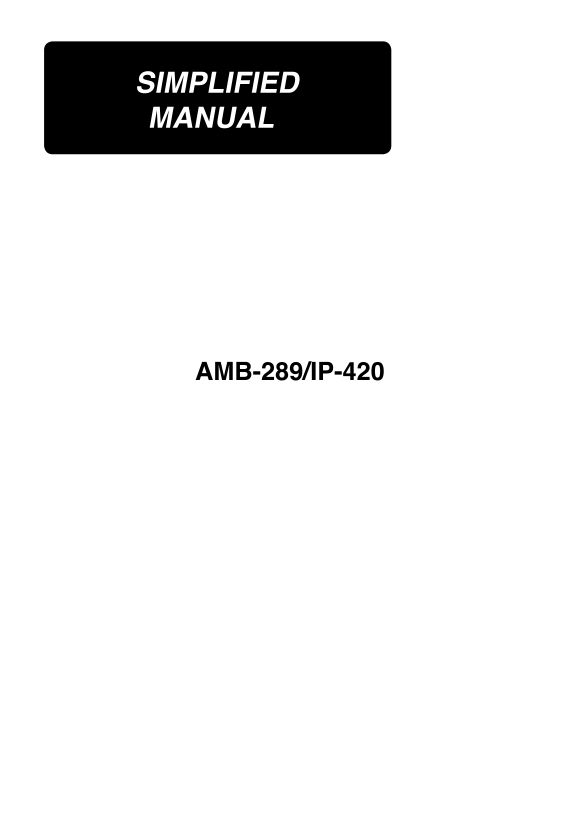

Page 1 Text Content

SIMPLIFIED MANUAL

AMB-289/IP-420

Page Summary Contents For Juki Automatic Sewing Machine AMB-289 User Manual

Page 1 SIMPLIFIED MANUAL AMB-289/IP-420
Page 2 1. BASIC OPERATION OF THE SEWING MACHINE Power switch ON Sewing pattern selection screen Button loader adjustment screen Needle entry point input Start of sewing and check with step motion Point setti...
Page 3 <Explanation of the display at the time of independent sewing> 1) Data input screen Symbol Display Description PATTERN NEW Pattern No. new register screen is displayed. REGISTER button → Refer t...
Page 4 2) Sewing screen FEABD Symbol Display Description CHUCK Chuck adjustment screen is displayed. ADJUSTMENT → Refer to "24. PERFORMING CHUCK ADJUSTMENT" in Operation section of INSTRUCTION butt...
Page 5 2. SETTING PROCEDURE OF SEWING PRODUCT <In case of sewing flat/wrapped-around button with blindstitch or sewing flat button with blindstitch> Set button 1 to button loader 2 and depress the back...
Page 6 3. STITCHING DIAGRAM OF SEWING FLAT/WRAPPED-AROUND BUTTON WITH BLINDSTITCH Needle entry to button Needle entry to cloth A st stitch hole position of upper button (longitudinal) E Blindstitch amount B...
Page 7 4. SEWING DATA LIST Sewing data are those that can be inputted to 99 patterns from pattern  to 99 and can be inputted to each pattern. However, the sewing data that can be inputted differ according t...
Page 8 No. Item Setting range Edit unit Initial display Remarks Compensation of lower left position of upper button –.00 to 0.0mm This item is set when cloth is pulled and the amount of blindstitch on the ...
Page 9 No. Item Setting range Edit unit Initial display Remarks Button loader selection <In case of shank/marble button> : Loader OFF : Loader ON <In case of normal button> Loader used (Front sid...
Page 10 No. Item Setting range Edit unit Initial display Remarks Tie stitch position of 1st stitch at the start of sewing of neck wrapping –.0 to .0 0. –0. (lateral) Tie stitch position of 2nd stitch at the...
Page 11 5. ERROR CODE LIST Error code Pictograph Description of error How to recover Place of recovery E0 Detection of step-out of presser lifting motor error This error occurs when step-out of presser liftin...
