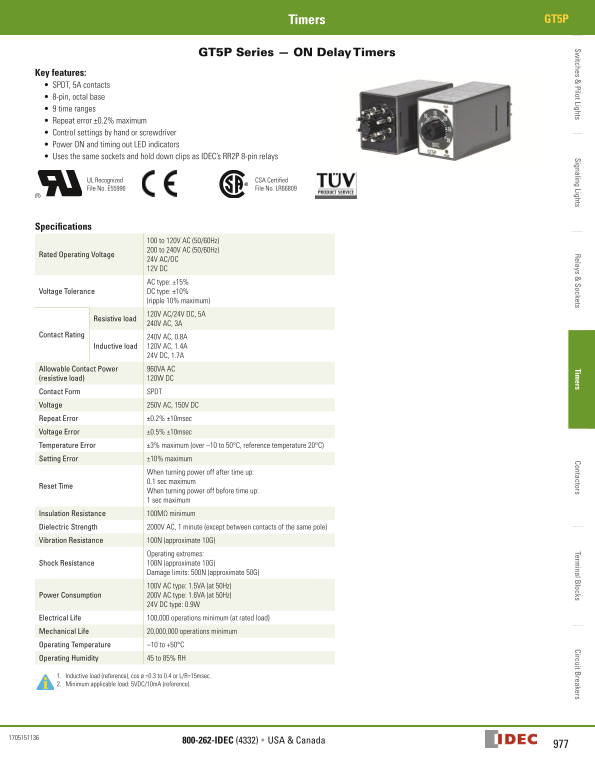

Page 1 Text Content
Sw itches & Pilot Lights Signaling Lights Relays & Sockets Tim ers Contactors Term inal Blocks Circuit Breakers
GT5PTimers
GT5P Series — ON Delay Timers
Key features: • SPDT, 5A contacts • 8-pin, octal base • 9 time ranges • Repeat error ±0.2% maximum • Control settings by hand or screwdriver • Power ON and timing out LED indicators • Uses the same sockets and hold down clips as IDEC’s RR2P 8-pin relays
UL Recognized CSA Certified File No. E55996 File No. LR66809
Specifications
100 to 120V AC (50/60Hz) 200 to 240V AC (50/60Hz)
Rated Operating Voltage
24V AC/DC 12V DC AC type: ±15%
Voltage Tolerance DC type: ±10%
(ripple 10% maximum) 120V AC/24V DC, 5A
Resistive load
240V AC, 3A
Contact Rating
240V AC, 0.8A
Inductive load 120V AC, 1.4A
24V DC, 1.7A
Allowable Contact Power 960VA AC (resistive load) 120W DC Contact Form SPDT Voltage 250V AC, 150V DC Repeat Error ±0.2% ±10msec Voltage Error ±0.5% ±10msec Temperature Error ±3% maximum (over –10 to 50°C, reference temperature 20°C) Setting Error ±10% maximum
When turning power off after time up: 0.1 sec maximum
Reset Time
When turning power off before time up: 1 sec maximum
Insulation Resistance 100MΩ minimum Dielectric Strength 2000V AC, 1 minute (except between contacts of the same pole) Vibration Resistance 100N (approximate 10G)
Operating extremes:
Shock Resistance 100N (approximate 10G)
Damage limits: 500N (approximate 50G) 100V AC type: 1.5VA (at 50Hz)
Power Consumption 200V AC type: 1.6VA (at 50Hz)
24V DC type: 0.9W
Electrical Life 100,000 operations minimum (at rated load) Mechanical Life 20,000,000 operations minimum Operating Temperature –10 to +50°C Operating Humidity 45 to 85% RH
1. Inductive load (reference), cos ø =0.3 to 0.4 or L/R=15msec. 2. Minimum applicable load: 5VDC/10m A (reference).
977800-262-IDEC (4332) • USA & Canada
Page Summary Contents For IDEC GT5 Series Catalog
Manual Details
| Brand | IDEC |
|---|---|
| Pages | 9 |
| File Size | 1.33 MB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum electrical life of the GT5P timer?
The mechanical life is 20,000,000 operations minimum, and the electrical life is 100,000 operations minimum (at rated load).
Can I use these timers with different voltage systems?
Yes, they support multiple voltages, including 100 to 120V AC, 200 to 240V AC, and 24V AC/DC.
How does the reset time work when power is removed before the timer reaches its set point?
The maximum reset time when turning power off before the time up is 1 second.
What types of loads can the GT5P timers handle?
They are rated for various inductive and resistive loads, such as 960VA AC (resistive load) or 120W DC.
