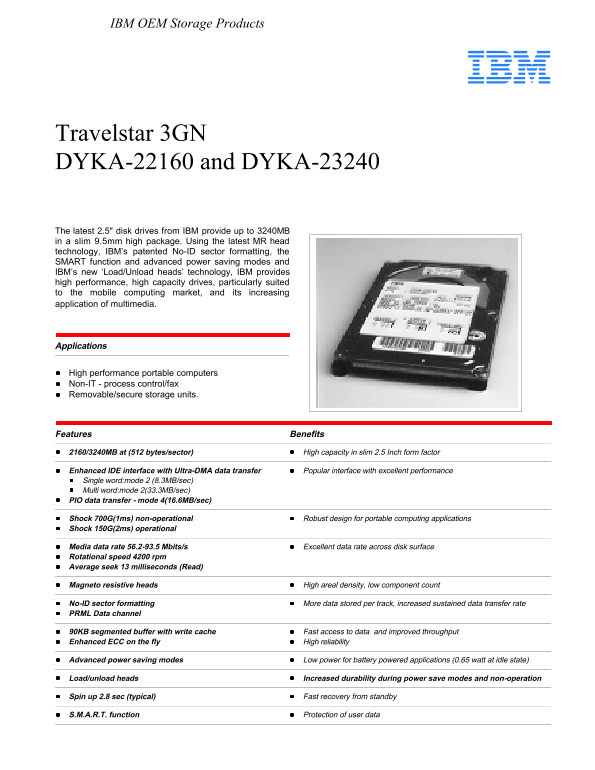

Page 1 Text Content
IBM OEM Storage Products
Travelstar 3GN DYKA-22160 and DYKA-23240
The latest 2.5" disk drives from IBM provide up to 3240MB in a slim 9.5mm high package. Using the latest MR head technology, IBM’s patented No-ID sector formatting, the SMART function and advanced power saving modes and IBM’s new ‘Load/Unload heads’ technology, IBM provides high performance, high capacity drives, particularly suited to the mobile computing market, and its increasing application of multimedia.
Applications
M High performance portable computers M Non-IT - process control/fax M Removable/secure storage units.
Features Benefits
M 2160/3240MB at (512 bytes/sector) M High capacity in slim 2.5 Inch form factor
M Enhanced IDE interface with Ultra-DMA data transfer Popular interface with excellent performance M Single word:mode 2 (8.3MB/sec) M Multi word:mode 2(33.3MB/sec) M PIO data transfer - mode 4(16.6MB/sec)
M Shock 700G(1ms) non-operational M Robust design for portable computing applications M Shock 150G(2ms) operational
M Media data rate 56.2-93.5 Mbits/s M Excellent data rate across disk surface M Rotational speed 4200 rpm M Average seek 13 milliseconds (Read)
M Magneto resistive heads M High areal density, low component count
M No-ID sector formatting M More data stored per track, increased sustained data transfer rate M PRML Data channel
M 90KB segmented buffer with write cache M Fast access to data and improved throughput M Enhanced ECC on the fly M High reliability
M Advanced power saving modes M Low power for battery powered applications (0.65 watt at idle state)
Load/unload heads Increased durability during power save modes and non-operation
M Spin up 2.8 sec (typical) M Fast recovery from standby
M S.M.A.R.T. function M Protection of user data
