Discover the power of this B660M GAMING motherboard, engineered for reliable performance in modern PC builds. This comprehensive user manual is essential reading for tech enthusiasts and PC builders. It guides you through every phase of setup, covering everything from initial hardware installation (CPU, RAM, expansion cards) to detailed BIOS configuration. Furthermore, the guide provides step-by-step instructions for operating system and driver installation, ensuring you can get your system up and running seamlessly.

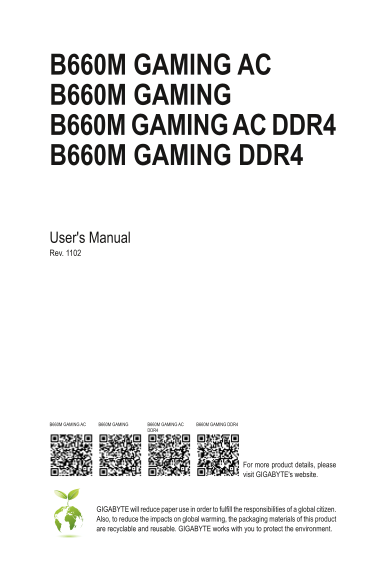

Page 1 Text Content
B660M GAMING AC B660M GAMING B660M GAMING AC DDR4 B660M GAMING DDR4
User's Manual Rev. 1102
B660M GAMING AC B660M GAMING AC B660M GAMING DDR4B660M GAMING
For more product details, please visit GIGABYTE's website.
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For GIGABYTE Motherboard B660M GAMING AC (Rev.1.0) User Manual
Page 1
B660M GAMING AC B660M GAMING B660M GAMING AC DDR4 B660M GAMING DDR4 User's Manual Rev. 1102 B660M GAMING AC B660M GAMING AC B660M GAMING DDR4B660M GAMING For more product details, please visit GIGABYT...
Page 2
Copyright © 2022 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents Chapter 1 Product Introduction .......................................................................................4 1-1 Motherboard Layout ..........................................
Page 4
Chapter 1 Product Introduction 1-1 Motherboard Layout 2A _C PU KB_MS_USB CPU_FAN ATX_12V_2X4 M2_WIFIM ATX SYS_FAN1 LGA1700 VGA HDMI B6 GA MI NG U32_LAN B6 GA MI NG DD R5 _B DD R5 _A AUDIO SY S_ FA N2 ...
Page 5
M2 A_ CP KB_MS_USB CPU_FAN ATX_12V_2X4 M2_WIFIO ATX SYS_FAN1 LGA1700 VGA HDMI M2 P_ SB B660M GAMING AC DDR4 U32_LAN B660M GAMING DDR4 DD R4 _A DD R4 _B AUDIO SY S_ FA N2 F_ U3 SA TA Realtek® PCIEX16 2...
Page 6
1-2 Box Contents B660M GAMING AC, B660M GAMING, B660M GAMING AC DDR4, or B660M GAMING DDR4 motherboard User's Manual I/O Shield Two SATA cables One antenna MO * The box contents above are for referenc...
Page 7
Chapter 2 Hardware Installation 2-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 8
2-2 Product Specifications CPU LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for...
Page 9
Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD suppo...
Page 10
I/O Controller i TE® I/O Controller Chip Hardware Voltage detection Monitor Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is sup...
Page 11
2-3 Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU s...
Page 12
B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab MGently press the CPU socket lever handle down and away from the socket. kComple...
Page 13
C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for you...
Page 14
2-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 15
2-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 16
2-6 Back Panel Connectors USB 2.0/1.1 Port (Q-Flash Plus Port) The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. Before using Q-Flash Plus (Note), make sure to insert...
Page 17
USB 3.2 Gen 1 Port The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices. USB Type-C® Port, with USB 3.2 Gen 1 S...
Page 18
2-7 Internal Connectors 1) ATX_12V_2X4 11) F_U32 2) ATX 12) F_USB1/F_USB2 3) CPU_FAN 13) SPI_TPM 4) SYS_FAN1/2/3 14) COM 5) SATA3 4/5/6/7 15) BAT 6) D_LED1 16) CLR_CMOS 7) LED_C1 17) SPDIF_O 8) M2A_CP...
Page 19
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the compo...
Page 20
DEBUG PORT DEBUG PORT DE BU PO RT 3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan ca...
Page 21
F_ US B3 F_ F_ F_ F_ US B3 6) D_LED1 (Addressable LED Strip Header) This header can be used to connect a standard 5050 addressable LED strip, with maximum power rating of 5A (5V) and maximum number of...
Page 22
F_USB30 F_ U F_ F_ 8) M2A_CPU/M2P_SB (M.2 Socket 3 Connectors) The M.2 connectors on the motherboard support only M.2 PCIe SSDs. M2A_CPU M2P_SB F_USB30F_ U F_ F_ Follow the steps below to corr...
Page 23
9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignme...
Page 24
10) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assign...
Page 25
F_USB30 F_ U F_ F_ _S 12) F_USB1/F_USB2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing th...
Page 26
14) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition ...
Page 27
F_ US B3 F_ F_ F_ F_ US B3 16) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object ...
Page 28
18) RST_SW/RST (Reset Button/Reset Jumper) The reset button (RST_SW) allows users to quickly turn on/off the computer in an open-case environment when they want to change hardware components or conduc...
Page 29
Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 30
Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or ...
Page 31
Chapter 4 Installing the Operating System and Drivers 4-1 Operating System Installation With the correct BIOS settings, you are ready to install the operating system. If you want to install an operati...
Page 32
4-2 Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE ...
Page 33
Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 Drives Number of hard (Number of hard (Number of hard Size of the smallest Array Cap...
Page 34
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 35
European Union (EU) CE Declaration of Conformity CE Declaración de conformidad This device complies with the following directives: Electromagnetic Este producto que llevan la marca CE cumplen con las ...
Page 36
European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipme...
Page 37
