Page 1

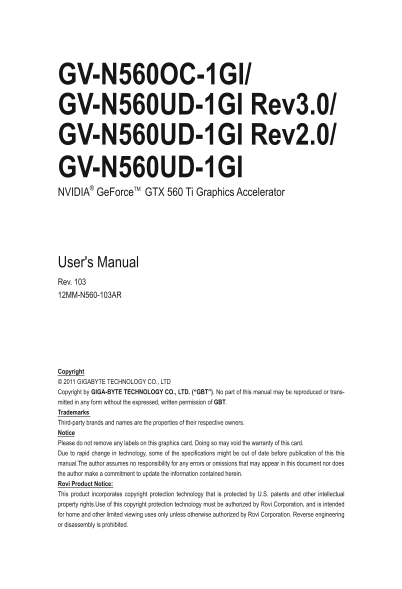

GV-N560OC-1GI/ GV-N560UD-1GI Rev3.0/ GV-N560UD-1GI Rev2.0/ GV-N560UD-1GI NVIDIA® Ge Force TM GTX 560 Ti Graphics Accelerator User's Manual Rev. 103 12MM-N560-103AR Copyright © 2011 GIGABYTE TECHNOLOGY...
Page 2
VGA Card GV-N560OC-1GI ard V-N 560O -1G Jan. 17, 2011 Jan. 17, 2011
Page 3
VGA Card GV-N560UD-1GI ard V-N 560U -1G Feb.25,2011 Feb. 25, 2011
Page 4
VGA Card GV-N560UD-1GI Rev2.0 ard V-N 560U -1G I R ev2.0 Jul.25,2011 Jul. 25, 2011
Page 5
VGA Card GV-N560UD-1GI Rev3.0 ard V-N 560U -1G I R ev3.0 Jul.25,2011 Jul. 25, 2011
Page 6
Table of Contents 1. Introduction ..................................................................................................................7 1.1. Features .......................................
Page 7
1. Introduction 1.1. Features • Powered by NVIDIA® Ge Force GTX 560 Ti Graphics Processing Unit (GPU) • Supports PCI Express 2.0 • Integrated with 1GB GDDR5 memory • Supports Direct X® 11 • Supports N...
Page 8
2. Hardware Installation 2.1. Board Layout 1.GV-N560OC-1GI / GV-N560UD-1GI Power Connectors SLI Connector Mini HDMI Connector DVI-I connector 1 DVI-I Connector 2 Mini HDMI Connector HDMI TV DVI-I DVI ...
Page 9
2.GV-N560UD-1GI Rev2.0 / Rev3.0 Power Connectors SLI Connector Mini HDMI Connector DVI-I connector 1 DVI-I Connector 2 Mini HDMI Connector HDMI TV DVI-I DVI Output Connector 1 Digital LCD Monitor DVI ...
Page 10
The GV-N560OC-1GI / GV-N560UD-1GI Rev3.0 / GV-N560UD-1GI Rev2.0 / GV-N560UD-1GI graphics card is a performance optimized high-end card. Power is taken from the PCI Express host bus as well as the exte...
Page 11
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer. 1. T...
Page 12
2.2. Hardware Installation Now that you have prepared your computer, you are ready to install your graphics card. Step 1. Locate the PCI Express x16 slot. If necessary, remove the metal cover from thi...
Page 13
How NVIDIA®SLITM (Scalable Link Interface) technology works: In an SLI configuration, two/three SLI-ready graphics cards of the same model and the same manufacturers are connected together via SLI bri...
Page 14
3. Software Installation Notice the following guidelines before installing the drivers: 1. First make sure your system has installed Direct X 9 or later version. 2. Make sure your system has installed...
Page 15
Step 3: Click the Yes button. The system is installing the components. Step 4: Click the Finish button to restart the computer. Then the driver installation is completed. - 15 - Software Installation
Page 16
3.2. Display Properties Pages Display Settings (Resolutions and Color Quality for Windows) To access Display Settings page, right-click on desktop and select Personalize, then the Personalization wind...
Page 17
3.3. Accessing NVIDIA Control Panel After installation of the display driver, right-click on the desktop and select NVIDIA Control Panel. The NVIDIA Control Panel is used to configure all your graphic...
Page 18
Select the view of the NVIDIA Control Panel that is most appropriate for you. Standard Settings Advanced Settings The following pages provide details on configuring advanced settings. In the NVIDI...
Page 19
3D Settings Tasks in the 3D Settings pages allow you to do the following: • Change the image and rendering settings of your 3D applications and games that utilize Direct3D and Open GL technology. • Ov...
Page 20
Display A variety of display features enable you to further manipulate and configure your display settings to optimize the use of your displays. Tasks in the Display pages allow you to do the followin...
Page 21
Adjust Desktop Color Settings Use this page to set the contrast, sharpness, and color depth (Digital Vibrance) of the images on your desktop. These changes will not affect any video playback. To cha...
Page 22
Set Up Multiple Displays NVIDIA n View technology enables you to view your desktop in one of several multi-display modes to make the best use of the displays (monitors) that are connected to your co...
Page 23
(3) As one large horizontal desktop (Horizontal span) (Note 1) Horizontal Span mode indicates that both displays in the display pair function as one wide virtual desktop. The width of each display is ...
Page 24
Video & Television Video and television features are similar to those for analog for optimal viewing. Tasks in the Video & Televi- sion pages allow you to do the following: • Adjust your telev...
Page 25
4. Troubleshooting Tips The following troubleshooting tips may help if you experience problems. Contact your dealer or GIGABYTE for more advanced troubleshooting information. Check that the card is ...
Page 26
5. Appendix 5.1. How to Reflash the BIOS in MS-DOS Mode 1. Extract the downloaded Zip file to your hard disk(s) or floppy disk. This procedure assumes drive A. 2. Restart the computer in MS-DOS mode. ...
Page 27
5.2. Resolutions and Color Depth Tables Ge Force GTX 560 Ti Single Display Standard Modes Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) St...
Page 28
Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard mode High mode True mode 1600 x 1200 60~100 120 X 1920 x 1080 (16:9) 60~8...
Page 29
5.3. Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unaut...
Page 30
Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer pac...
Page 31
- 31 - Appendix
Page 32
- 32 -GV-N500 Series Graphics Accelerator
Page 33
- 33 - Appendix
Page 34
- 34 -GV-N500 Series Graphics Accelerator
