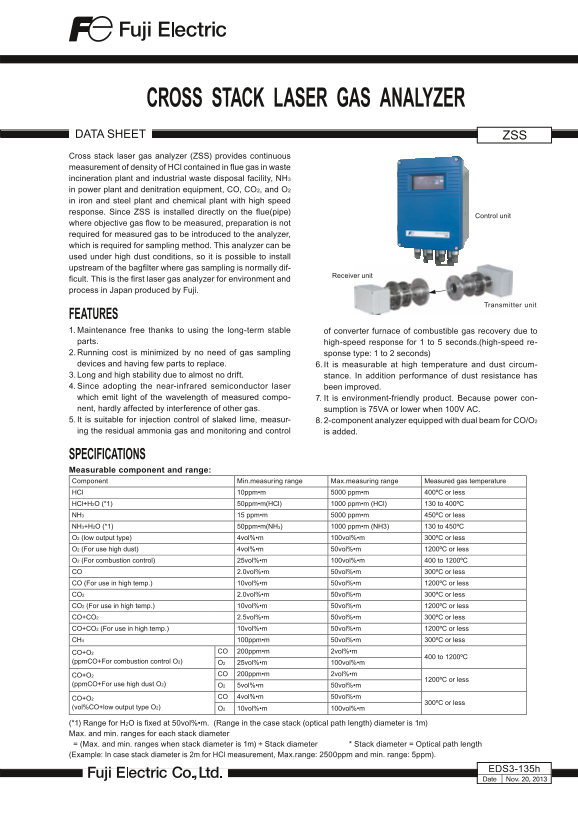

Fuji Electric ZSS Straight-Inserted Laser Gas Analyzer Product Specifications (English)

CROSS St ACK LASe R GAS An ALYZe R

DATA SHEET ZSS Cross stack laser gas analyzer (ZSS) provides continuous measurement of density of HCl contained in fl ue gas in waste incineration plant and industrial waste disposal facility, NH3 in power plant and denitration equipment, CO, CO2, and O2 in iron and steel plant and chemical plant with high speed response. Since ZSS is installed directly on the fl ue(pipe)

Control unit

where objective gas fl ow to be measured, preparation is not required for measured gas to be introduced to the analyzer, which is required for sampling method. This analyzer can be used under high dust conditions, so it is possible to install upstream of the bagfi lter where gas sampling is normally dif-

Receiver unit

fi cult. This is the fi rst laser gas analyzer for environment and process in Japan produced by Fuji.

Transmitter unit

Fe At URe S 1. Maintenance free thanks to using the long-term stable of converter furnace of combustible gas recovery due to parts. high-speed response for 1 to 5 seconds.(high-speed re- 2. Running cost is minimized by no need of gas sampling sponse type: 1 to 2 seconds) devices and having few parts to replace. 6. It is measurable at high temperature and dust circum- 3. Long and high stability due to almost no drift. stance. In addition performance of dust resistance has 4. Since adopting the near-infrared semiconductor laser been improved. which emit light of the wavelength of measured compo- 7. It is environment-friendly product. Because power con- nent, hardly affected by interference of other gas. sumption is 75VA or lower when 100V AC. 5. It is suitable for injection control of slaked lime, measur- 8. 2-component analyzer equipped with dual beam for CO/O2 ing the residual ammonia gas and monitoring and control is added.

SPe CIFICAt IOn S Measurable component and range: Component Min.measuring range Max.measuring range Measured gas temperature HCl 10ppm•m 5000 ppm•m 400ºC or less

HCl+H2O (*1) 50ppm•m(HCl) 1000 ppm•m (HCl) 130 to 400ºC NH3 15 ppm•m 5000 ppm•m 450ºC or less NH3+H2O (*1) 50ppm•m(NH3) 1000 ppm•m (NH3) 130 to 450ºC O2 (low output type) 4vol%•m 100vol%•m 300ºC or less O2 (For use high dust) 4vol%•m 50vol%•m 1200ºC or less O2 (For combustion control) 25vol%•m 100vol%•m 400 to 1200ºC

CO 2.0vol%•m 50vol%•m 300ºC or less CO (For use in high temp.) 10vol%•m 50vol%•m 1200ºC or less

CO2 2.0vol%•m 50vol%•m 300ºC or less CO2 (For use in high temp.) 10vol%•m 50vol%•m 1200ºC or less CO+CO2 2.5vol%•m 50vol%•m 300ºC or less CO+CO2 (For use in high temp.) 10vol%•m 50vol%•m 1200ºC or less CH4 100ppm•m 50vol%•m 300ºC or less CO+O2 CO 200ppm•m 2vol%•m

400 to 1200ºC

(ppm CO+For combustion control O2) O2 25vol%•m 100vol%•m

CO+O2 CO 200ppm•m 2vol%•m

1200ºC or less

(ppm CO+For use high dust O2) O2 5vol%•m 50vol%•m

CO+O2 CO 4vol%•m 50vol%•m

300ºC or less

(vol%CO+low output type O2) O2 10vol%•m 100vol%•m

(*1) Range for H2O is fi xed at 50vol%•m. (Range in the case stack (optical path length) diameter is 1m) Max. and min. ranges for each stack diameter = (Max. and min. ranges when stack diameter is 1m) ÷ Stack diameter * Stack diameter = Optical path length (Example: In case stack diameter is 2m for HCl measurement, Max.range: 2500ppm and min. range: 5ppm).

EDS3-135h Date Nov. 20, 2013
