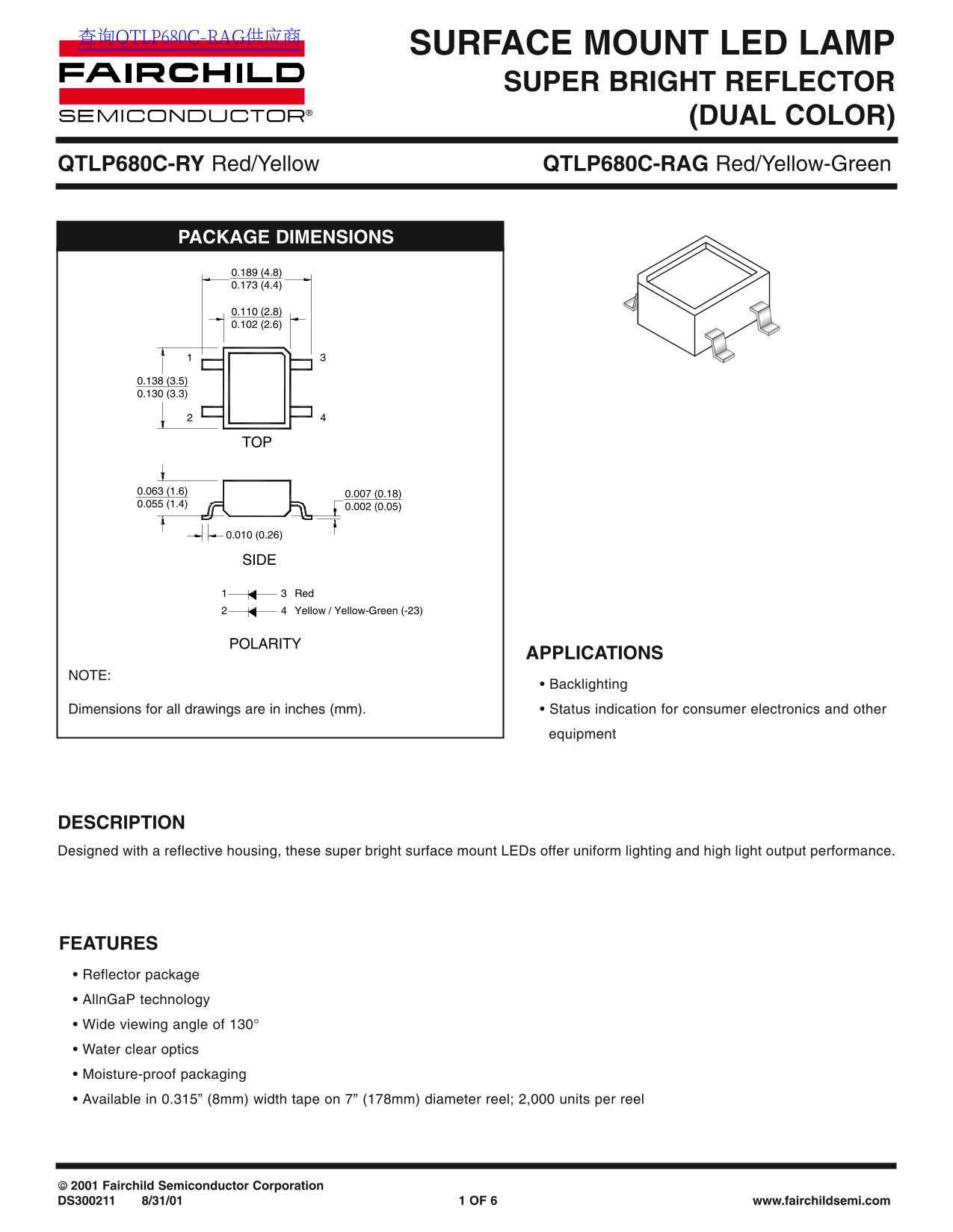

SURFACE MOUNT LED LAMP SUPER BRIGHT REFLECTOR
(DUAL COLOR)
QTLP680C-RY Red/Yellow QTLP680C-RAG Red/Yellow-Green
PACKAGE DIMENSIONS 0.189 (4.8) 0.173 (4.4)
Red Yellow / Yellow-Green (-23)
POLARITY
APPLICATIONS
NOTE:
• Backlighting Dimensions for all drawings are in inches (mm). • Status indication for consumer electronics and other equipment
DESCRIPTION Designed with a reflective housing, these super bright surface mount LEDs offer uniform lighting and high light output performance.
FEATURES • Reflector package • Alln Ga P technology • Wide viewing angle of 130° • Water clear optics • Moisture-proof packaging • Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel
2001 Fairchild Semiconductor Corporation DS300211 8/31/01 1 OF 6 www.fairchildsemi.com
