Electrolux 80cm UltimateTaste 500 Built-in Gas Hob, Dual Burner EHG8260GE User Manual
Summary
This comprehensive guide serves as the essential user and installation manual for your Electrolux Gas Hob. It provides crucial information covering safety protocols, proper parts identification, step-by-step setup procedures, and optimal operational techniques. Whether you are setting up or maintaining your appliance, this document details everything from correct gas connection to advanced cleaning tips, ensuring safe, efficient, and worry-free cooking experiences right in your kitchen.
Page 1 Text Content
EHG8321BC EHG9350BC EHG9231BC EHG9351BC EHG9331BC EHG8260GE EHG8241GE EHG8260BC EHG8250BC EHG9261BC EHG8251BC EHG9361BC
EHG9251BC EHG8250BCP EHG9350BCP

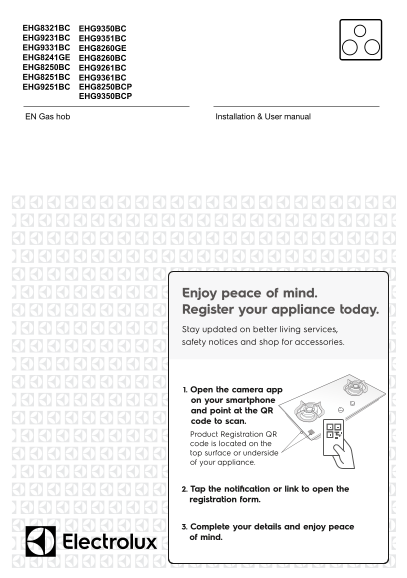

Gas hob Installation & User manual EN
Page Summary Contents For Electrolux 80cm UltimateTaste 500 Built-in Gas Hob, Dual Burner EHG8260GE User Manual
Page 1
EHG8321BC EHG9350BC EHG9231BC EHG9351BC EHG9331BC EHG8260GE EHG8241GE EHG8260BC EHG8250BC EHG9261BC EHG8251BC EHG9361BC EHG9251BC EHG8250BCP EHG9350BCP Gas hob Installation & User manual EN
Page 2
Contents 2 Safety instructions ................................................................. 3 Parts identification ................................................................. 4 Installation...
Page 3
3 Safety instructions Safety instructions Do not use gas other than that which is specified on the label attached. WARNING:- • In the event of the burner flames being accidentally Do not place anythin...
Page 4
4 parts identification EHG8250BCP Flameshield Trivet The Flameshield Trivet reduces heat -loss to deliver more intense heat to the cooking process, for effortlessly perfecting dishes from soups to sau...
Page 5
5 parts identification EHG9350BCP
Page 6
parts identification 6 The Class of the appliance: Class 3 These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is neces...
Page 7
7 installation instructions Installation instructions Have the installer show you the location of the gas shut off valve and how to shut it off in emergency. • Be certain all packing materials are rem...
Page 8
installation instructions Flexi Installation Cut Out The smaller burner (lower) box of this cooktop combined Installation procedure with the extended glass overhang, and flexible bracket makes install...
Page 9
Opopop89 operation 9 operation Ignition burners Choice of burner 1. Check to make sure that the gas supply is accessible and set A semi-rapid burner is for special low heat, simmering and up with the ...
Page 10
maintenance and care 10 Glass top •Persistent stains may require vigorous rubbing with nylon •After cleaning, ensure the burner caps are scourer or creamed powder cleansers. Household enamel reassembl...
Page 11
Opopop89 warranty conditions 11 Technical specifications EHG8250BCP/EHG9350BCP EHG8241GE/EHG8250BC/EHG8251BC/ EHG9251BC/ EHG9350BC/EHG9351BC/ EHG8260BC/EHG8260GE 5.5k W EHG9261BC/EHG9361BC Step Flame ...
Page 12
Standard warranty conditions We, Electrolux, undertake that with warranty period (refer All service work under this guarantee must be to each country location for warranty period – months) this undert...
Page 13
EHG8321BC EHG9350BC EHG9231BC EHG9351BC EHG9331BC EHG8260GE EHG8241GE EHG8260BC EHG8250BC EHG9261BC EHG8251BC EHG9361BC EHG9251BC EHG8250BCP EHG9350BCP TH เตาแกส คูมือการติดตั้งและคูมือการใชงาน
Page 15
สําหรับหัวเตาที่ติดตั้งอุปกรณควบคุมเปลวไฟ (Flame Supervision Device) หากหมุนลูกบิดเพื่อเปดเตานานถึง 15 วินาที แลวเปลวไฟยังไมติด
Page 16
EHG8250BCP
Page 17
EHG9350BCP
Page 20
ติดตั้งเตาลงในชองที่ตัดไว (ดูรูปที่ 7) EHG8321BC กวาง (630-765)*ลึก (350-465) R50 ตอแกสเขาเตา เปดแกสแลวตรวจสอบวามีรอยรั่วหรือไม โดยใชนํ้าสบูถูบริเวณ EHG8241GE กวาง (630-765)*ลึก (350-465...
Page 21
จุดบนลูกบิดตรงกับสัญลักษณตางๆ จะมีความหมายดังนี้: EHG8321BC/EHG9231BC/EHG9331BC/ EHG8241GE/EHG8250BC/EHG9350BC/ หมายเหตุ: EHG8260GE/EHG8250BCP/ โปรดทราบวา การใชกระทะที่มีกนกวางจะทําอาหารไดเร็วก...
Page 23
TG 4.0k W EHG8250BCP/EHG9350BCP 11mbar หัวเตาเปลวไฟ EHG8241GE/EHG8250BC/EHG8251BC/ EHG9251BC/ LPG 5.2k W 30mbar 3 ชั้น EHG9350BC/EHG9351BC/ EHG8260BC/EHG8260GE LPG 6.0k W 30mbar EHG9261BC/EHG9361BC5.5...
Page 24
บนฉลากแสดงขอมูลเทานั้น ในการติดต้ัง การบํารุงรักษา และการใชอุปกรณเคร่ืองใชนี้อยางไมถูกตอง เครื่องใชนี้มีวัตถุประสงคสําหรับใชงานทั่วไปภายในบานเทานั้น และการใชงานตอง เปนไปตามคําแนะนําจาก...
Page 25
EHG8321BC EHG9350BC EHG9231BC EHG9351BC EHG9331BC EHG8260GE EHG8241GE EHG8260BC EHG8250BC EHG9261BC EHG8251BC EHG9361BC EHG9251BC EHG8250BCP EHG9350BCP Bếp gas Lắp đặt và Hướng dẫn sử dụng VIN
Page 26
Nội dung 2 Những chỉ dẫn an toàn Các bộ phận của bếp Hướng dẫn lắp đặt 6 Quy trình lắp đặt 7 Nối gas Vận hành Đánh lửa Sử dụng bếp đúng cách 9 Bảo trì và vệ sinh Mặt kính Nắp chia lửa và nắp đậy Khắc ...
Page 27
3 Những chỉ dẫn an toàn Những chỉ dẫn an toàn Không dùng các loại gas khác so với loại gas đã được chỉ định trên nhãn đính kèm. CẢNH BÁO: Trong trường hợp ngọn lửa bị tắt ngoài ý muốn, hãy Không đặt b...
Page 28
Các bộ phận của bếp Kiềng chắn gió tráng men Nắp đậy bên trong Nắp đậy bên ngoài Kính cường lực bếp Kiềng chắn gió tráng men Vòng chia lửa Nắp đậy bên ngoài Nắp đậy bên trong Vòng chia lửa Núm điều ch...
Page 29
5 Các bộ phận của bếp Kiềng chắn gió làm bằng gang Kính cường lực bếp Kiềng chắn gió bán phần bằng gang Nắp đậy bên trong Kiềng chắn gió làm bằng gang Nắp đậy bán phần Nắp đậy bên ngoài Nắp đậy bên ng...
Page 30
Các bộ phận của bếp Kiềng bếp làm bằng gang lớn Nắp đậy bên trong Kiềng bếp làm bằng gang lớn Kính cường lực bếp Nắp đậy bên ngoài Nắp đậy bên ngoài Vòng chia lửa Nắp đậy bên trong Vòng chia lửa Núm đ...
Page 31
Hướng dẫn lắp đặt Hướng dẫn lắp đặt • Quý khách hãy yêu cầu người lắp đặt chỉ rõ vị trí khóa van gas và cách khóa van gas trong trường hợp khẩn cấp. Cần đảm bảo rằng tất cả các vật liệu đóng gói đều đ...
Page 32
Hướng dẫn lắp đặt 8 Lắp đặt mặt cắt linh hoạt Hộp đánh lửa nhỏ hơn của thiết bị này kết hợp với phần nhô Quy trình lắp đặt ra bằng kính mở rộng và giá đỡ linh hoạt giúp cho việc lắp đặt bếp vào các mặ...
Page 33
9 Vận hành Đánh lửa Lựa chọn bếp khi nấu nướng 1. Kiểm tra để đảm bảo rằng hệ thống cung cấp gas đã sẵn Bếp chia lửa nhanh bán phần phù hợp để nấu các món ăn sàng và được lắp đặt với các bộ phận mối n...
Page 34
Bảo trì và vệ sinh 10 Mặt kính • Đối với các vết bẩn cứng đầu, quý khách có thể sử dụng • Sau khi vệ sinh, đảm bảo rằng các nắp đậy phải được lắp lại miếng tẩy rửa mềm hoặc chất tẩy rửa dạng kem để la...
Page 35
Thông số kỹ thuật11 Thông số kỹ thuật EHG8250BCP/EHG9350BCP EHG8241GE/EHG8250BC/EHG8251BC/ EHG9251BC/ EHG9350BC/EHG9351BC/ EHG8260BC/EHG8260GE 5.5k W EHG9261BC/EHG9361BC Khi bạn thay đổi cường độ nhiệ...
Page 36
Điều kiện bảo hành Điều kiện bảo hành Chúng tôi, Electrolux, cam kết rằng với thời gian bảo hành Tất cả các dịch vụ trong điều kiện bảo hành phải được (tham khảo từng quốc gia để biết thời gian bảo hà...
