Dell Vostro 5620 Setup Guide & Specifications
Summary
Dell Vostro 5620 laptop setup and specifications document (May 2022, Rev. A01) providing initial setup guide and complete technical specifications for this business laptop, covering chassis views and port identification, keyboard shortcut functions, power adapter and battery specifications, processor, memory, storage and display options, wireless module details, operating system support information, dimensions and weight, and safety and regulatory compliance notices.
Page 1 Text Content

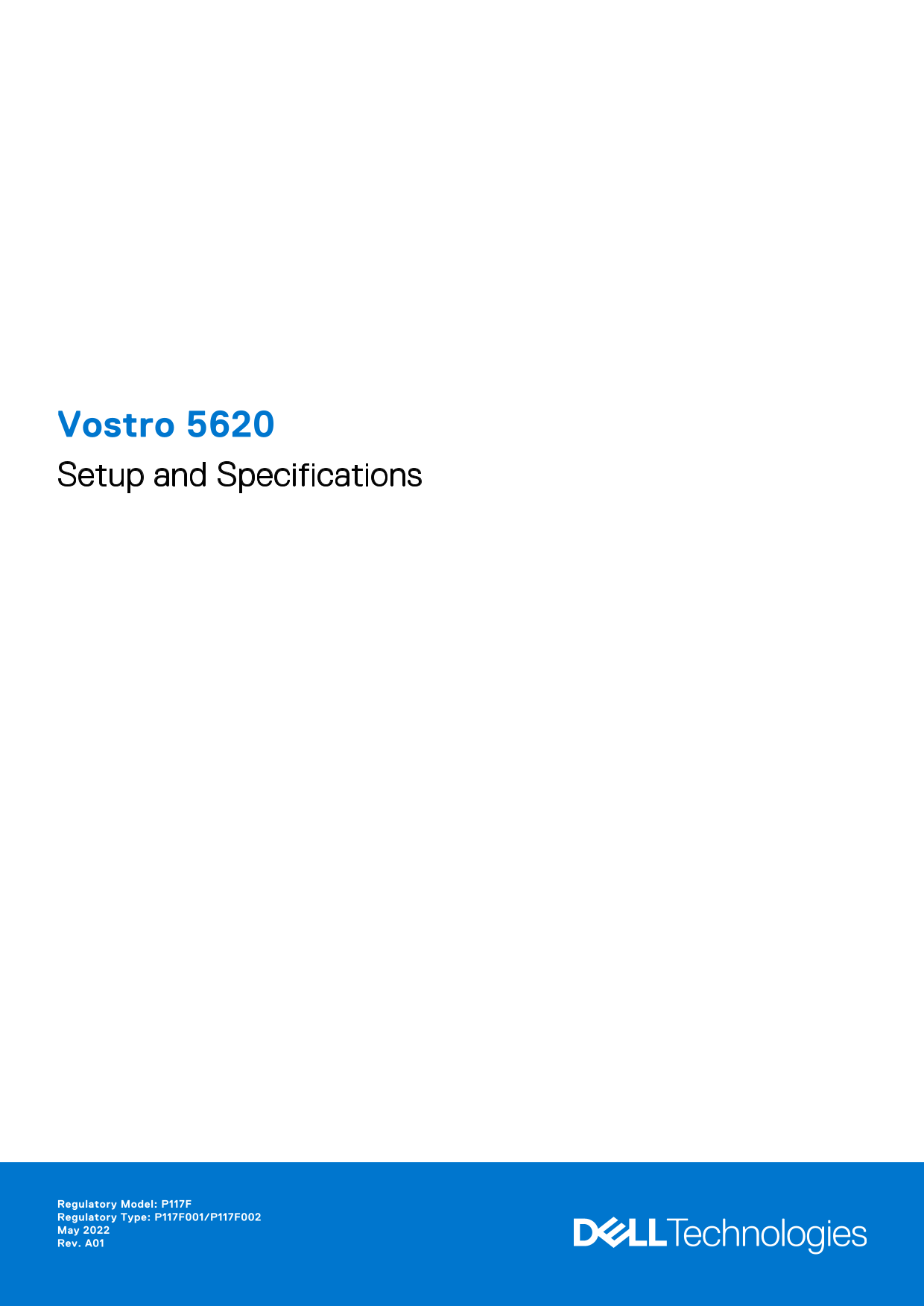

Vostro 5620 Setup and Specifications
Regulatory Model: P117F Regulatory Type: P117F001/P117F002 May 2022 Rev. A01
Page Summary Contents For Dell Vostro 5620 Setup Guide & Specifications
Page 1
Vostro 5620 Setup and Specifications Regulatory Model: P117F Regulatory Type: P117F001/P117F002 May 2022 Rev. A01
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your Vostro 5620...............................................................................................4 Chapter 2: Views of Vostro 5620................................
Page 4
Set up your Vostro 5620 NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1. Connect the power adapter and press the power button. NOTE: The b...
Page 5
Table 1. Locate Dell apps (continued) Resources Description Support Assist Support Assist proactively and predictively identifies hardware and software issues on your computer and automates the engage...
Page 6
Views of Vostro 5620 1. Power-adapter port Connect a power adapter to provide power to your computer and charge the battery. 2. Power and battery-status light Indicates the power state and battery sta...
Page 7
1. SD-card slot Reads from and writes to the SD card. The computer supports the following card types: Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC) 2....
Page 8
1. Power button with optional fingerprint reader Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. When the computer is turned on, press the power button to put...
Page 9
1. Left microphone Provides digital sound input for audio recording and voice calls. 2. Privacy shutter Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is n...
Page 10
1. Speakers Provide audio output. 2. Service Tag and regulatory labels The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in ...
Page 11
Specifications of Vostro 5620 Dimensions and weight The following table lists the height, width, depth, and weight of your Vostro 5620. Table 2. Dimensions and weight Description Values Height: Front ...
Page 12
Chipset The following table lists the details of the chipset supported by your Vostro 5620. Table 4. Chipset Description Values Chipset Integrated in the processor Processor 12th Generation Intel Core...
Page 13
External ports The following table lists the external ports of your Vostro 5620. Table 6. External ports Description Values Network port One RJ45 ethernet port USB ports Two USB 3.2 Gen 1 ports One US...
Page 14
Wireless module Table 9. Wireless module specifications Description Values Model number Intel AX201 Intel AX211 Realtek RTL8822CE Transfer rate Up to 2400 Mbps Up to 2400 Mbps Up to 867 Mbps Frequency...
Page 15
Storage This section lists the storage options on your Vostro 5620. Vostro 5620 supports one of the following storage configurations: One M.2 2230/2280 solid-state drive One M.2 2230 solid-state drive...
Page 16
Table 13. Keyboard specifications (continued) Description Values Keyboard shortcuts Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perfo...
Page 17
Power adapter The following table lists the power adapter specifications of your Vostro 5620. Table 16. Power adapter specifications Description Values Type 65 W AC adapter Connector dimensions: Exter...
Page 18
Table 17. Battery specifications (continued) Description Option one Option two Height 206.40 mm (8.13 in.) 271.90 mm (10.70 in.) Width 82.00 mm (3.23 in.) 82.00 mm (3.23 in.) Depth 5.75 mm (0.23 in.) ...
Page 19
Table 18. Display specifications (continued) Description Option one Option two Option three Luminance (typical) 250 nits 300 nits 300 nits Megapixels Color gamut 45% NTSC, typical 100% s RGB, typical ...
Page 20
Table 20. GPU—Integrated (continued) Controller Memory size Processor Intel Iris Xe Graphics Shared system memory 12th Generation Intel Core NOTE: Intel Iris Xe Graphics will i5U/i5P/i7U/i7P default t...
Page 21
Dell Comfort View CAUTION: Prolonged exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the...
Page 22
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your ...
Page 23
Table 24. List of keyboard shortcuts (continued) Function key Behavior fn + page down Page down Keyboard shortcuts
Page 24
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 25. Self-help resources Self-help resources R...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 24 |
| File Size | 2.38 MB |
| Published | July 01, 2026 |
8 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I toggle between the power light and battery-status light?
You can press Fn + H to toggle between these two lights.
Where can I find support resources, drivers, or downloads for my computer?
Visit www.dell.com/support/windows, and use your Service Tag at www.dell.com/support for specific documents.
What information is provided about the physical connection points?
The manual details external ports, internal slots, communication methods, and audio connectivity in Chapter 3: Specifications.
