Dell UltraSharp UP2718Q - Outline Dimensions
Summary
This document is a mechanical outline dimension drawing for the Dell UP2718Q 27-inch 4K Ultra HD monitor. It provides detailed nominal dimensions in millimeters and inches for the monitor's physical layout including the display panel, stand, bezel width, swivel range (45 degrees), tilt range, pivot rotation (90 degrees), lift height, VESA mounting hole pattern (M4x10), and overall footprint. The drawing specifies exact measurements for all external components and adjustment mechanisms. It is intended for industrial designers, OEM integrators, and mounting solution manufacturers who need precise mechanical specifications for the Dell UP2718Q monitor.
Page 1 Text Content

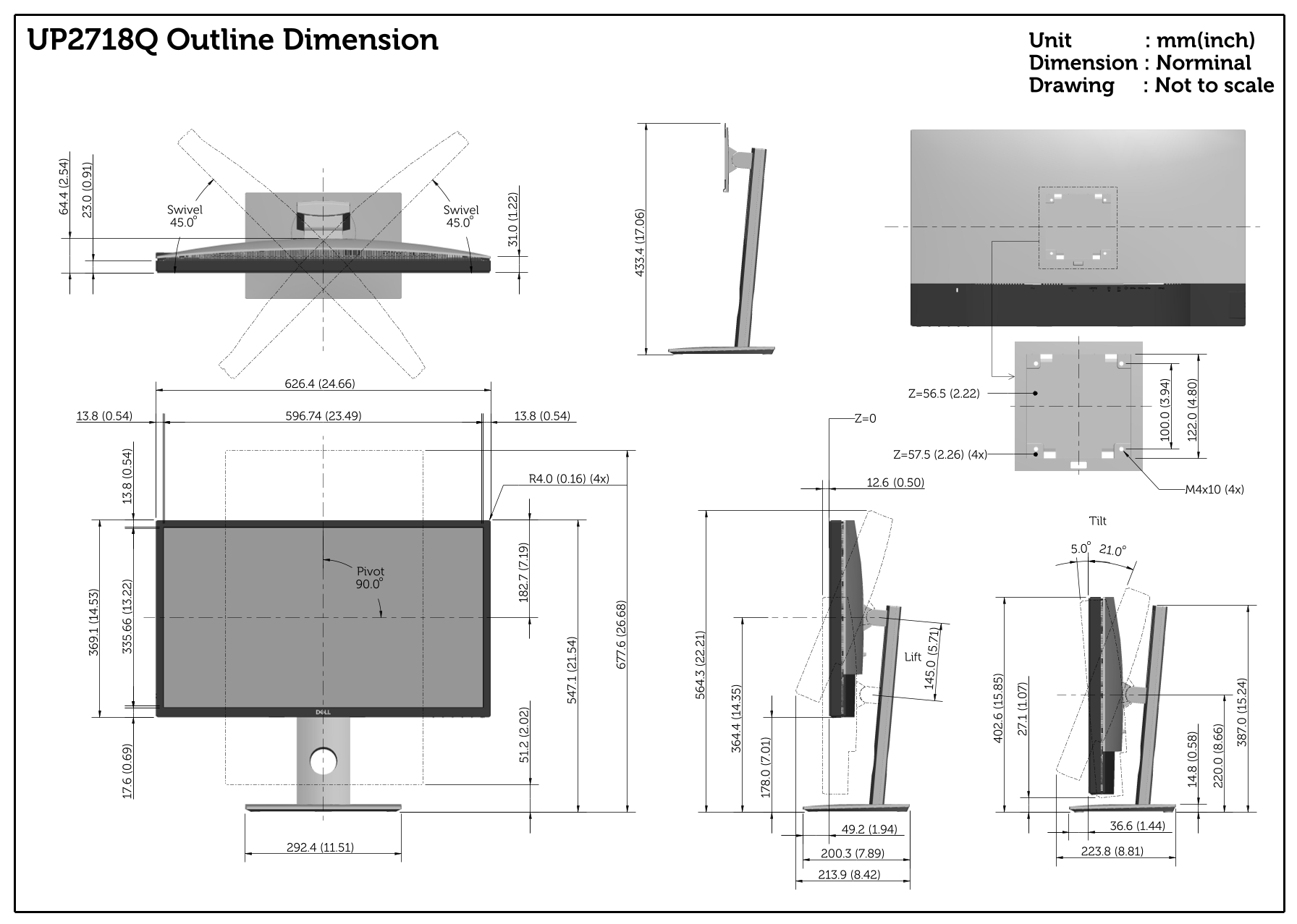

UP2718Q Outline Dimension Unit : mm(inch)
.4 .5 Dimension : Norminal 3. .9 1) Drawing : Not to scale
Swivel Swivel 45.0 45.0
1. .0 .7 7. Tilt
7. (2 1. Pivot 90.0
