Dell UltraSharp U2715H Outline Dimensions User Manual
Summary
This document contains the outline dimension drawings for the Dell U2715H monitor. It provides nominal measurements in millimeters and inches, detailing the physical specifications including swivel range (45 degrees each direction), tilt, lift, pivot (90 degrees), mounting hole patterns (M4x10), and overall dimensions. This technical drawing is intended for product designers, mount manufacturers, and system integrators who need precise physical specifications for installation planning and accessory compatibility.
Page 1 Text Content

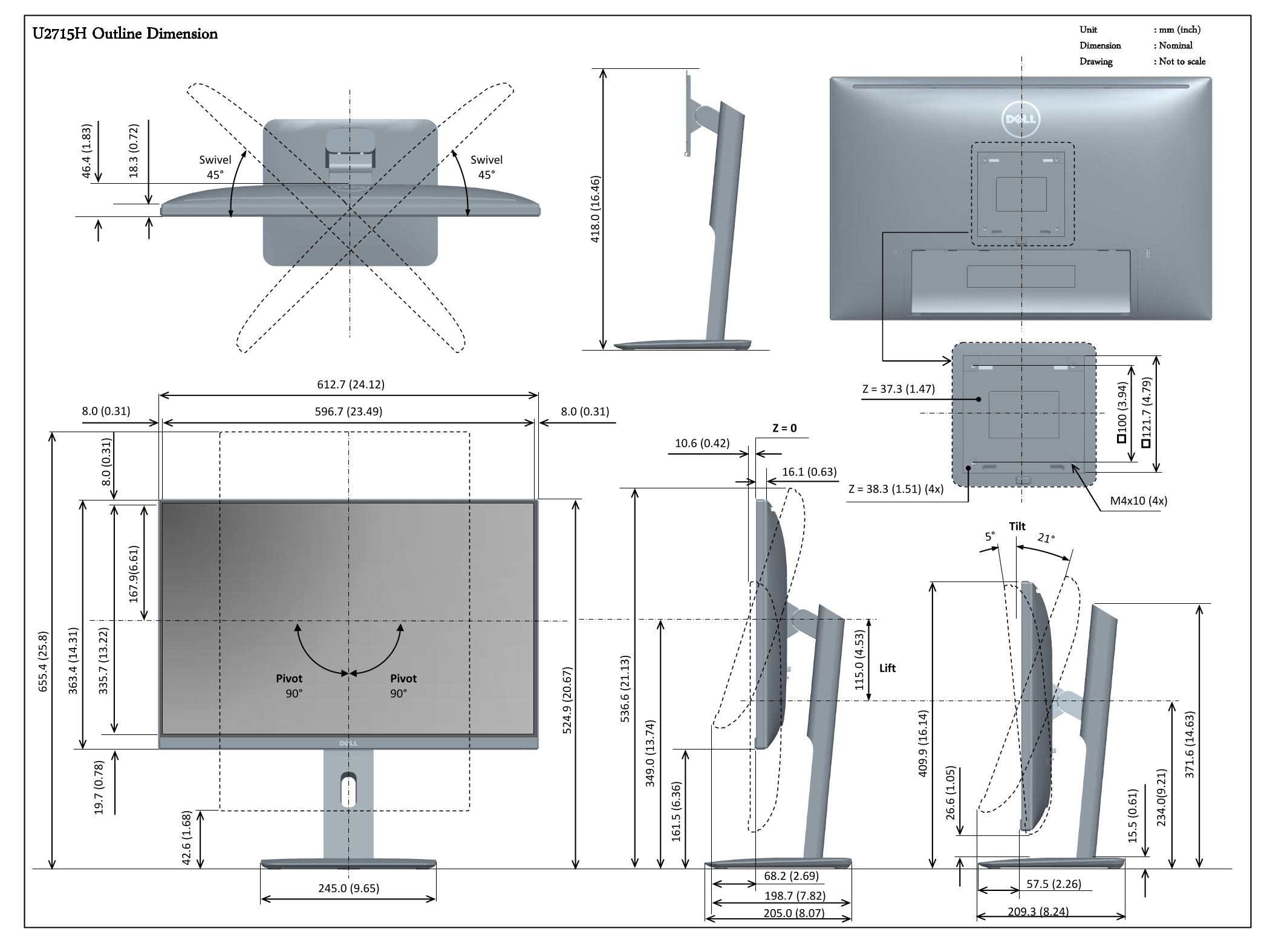

U2715H Outline Dimension Unit : mm (inch)
.4 .8 Dimension : Nominal
Drawing : Not to scale
Swivel Swivel 45° 45°
.5 .3 Pivot Pivot
Page Summary Contents For Dell UltraSharp U2715H Outline Dimensions User Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 392.62 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum tilt angle?
The monitor can tilt between -5° and 90°.
What is the maximum swivel range?
The monitor can swivel up to ±45°.
What are the dimensions of the device?
The outline dimensions are 612.7mm wide and 245.0mm high.
What is the pivot angle?
The monitor can pivot up to 90°.
What is the maximum lift height?
The maximum lift height is 197.0mm.
