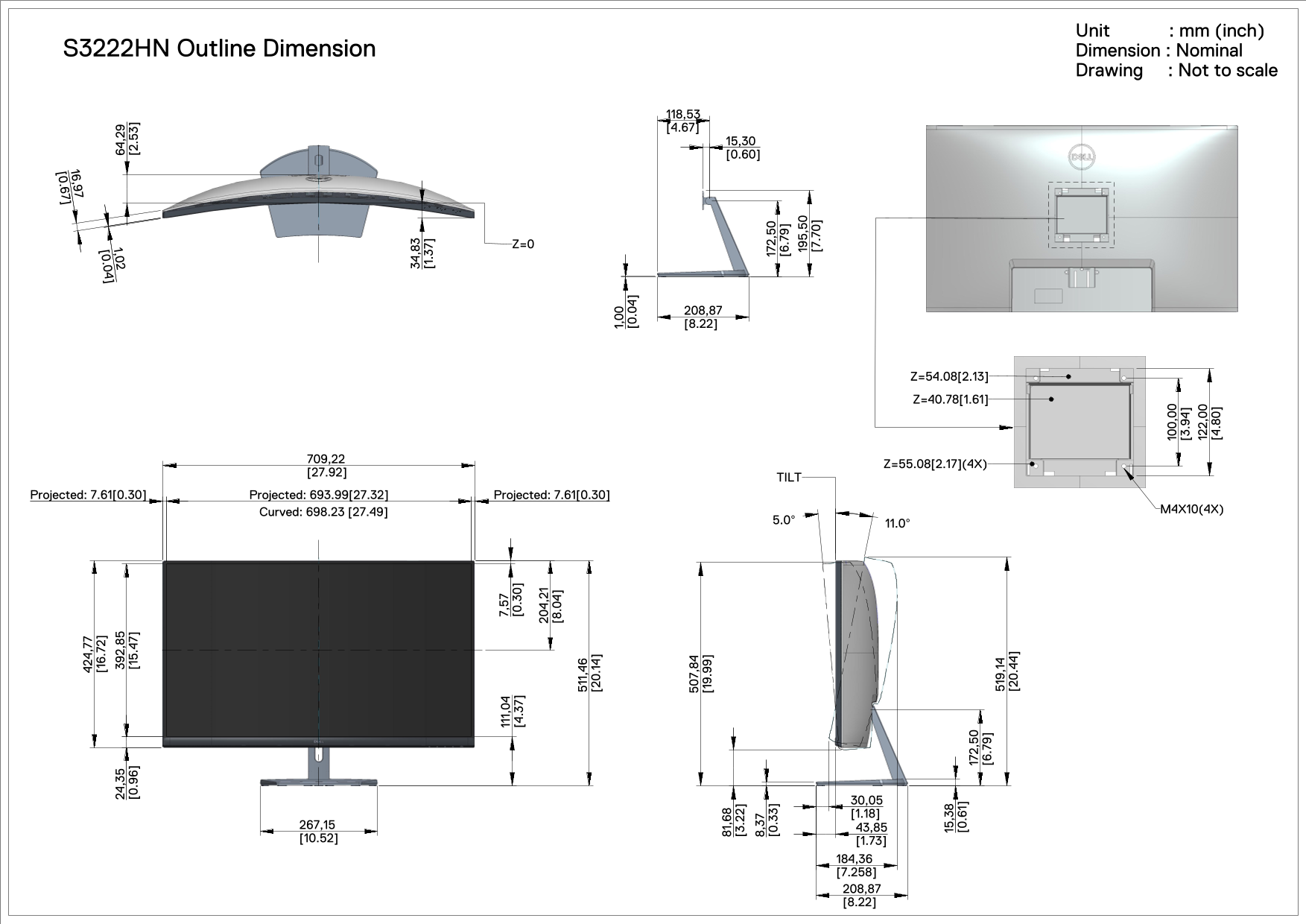

Dell S3222HN Outline Dimension
Summary
Mechanical outline dimension drawing for the Dell S3222HN curved monitor display. Provides comprehensive physical measurements in millimeters and inches including curved screen dimensions, tilt specifications, VESA mounting points (M4x10), projected and curved dimensional values, bezel widths, and stand footprint. Intended for industrial designers, VESA mount manufacturers, and hardware integration engineers requiring precise dimensional specifications for the S3222HN monitor enclosure.
Page 1 Text Content
Unit : mm (inch) S3222HN Outline Dimension Dimension : Nominal Drawing : Not to scale
Projected: 7.61[0.30] Projected: 7.61[0.30]Projected: 693.99[27.32]
Curved: 698.23 [27.49] M4X10(4X)
Page Summary Contents For Dell S3222HN Outline Dimension
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 317.35 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the outline dimensions of the unit?
The overall length is marked around 709.22 mm (27.32 inches).
How many mounting points are available?
There are four designated mounting points indicated by M4X10(4X) slots.
What angles are specified for the structure?
The design specifies multiple angles, including 5.0°, 11.0°, and 30.05°.
