Dell P2018H Outline Dimension
Summary
A technical dimension specification sheet for the Dell P2018H monitor, providing detailed mechanical outline drawings with nominal dimensions in both millimeters and inches. The document specifies the monitor's physical dimensions including swivel range (45 degrees), tilt range (21 degrees), pivot range (90 degrees), stand dimensions, VESA mount specifications (M4x10), and overall height, width, and depth measurements. The target audience is product designers, mechanical engineers, and facility planners who need precise physical dimensions for monitor mounting, desk space planning, or integration into custom installations.
Page 1 Text Content

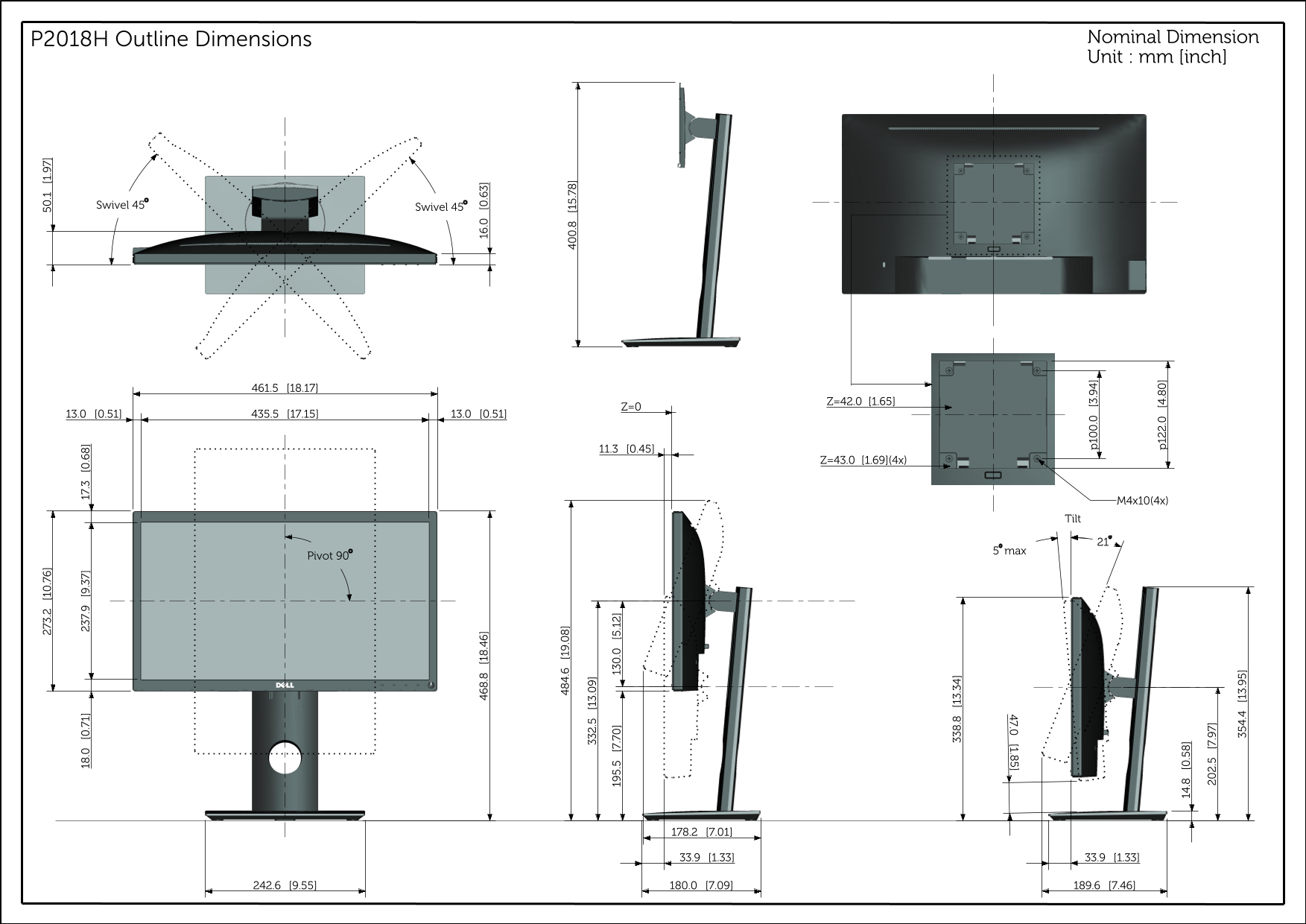

P2018H Outline Dimensions Nominal Dimension
Unit : mm [inch]
Swivel 45 Swivel 45
Pivot 90
Page Summary Contents For Dell P2018H Outline Dimension
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 377.54 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum tilt and swivel angles?
The device supports a maximum tilt of 21° and a swivel of 45°.
What are the outline dimensions of the product?
The outline dimensions are 461.5 mm [18.17] wide and 484.6 mm [19.08] high.
What is the pivot range of this unit?
The unit has a pivot range of 90°.
