Dell S2319NX Contour Design Specification User Guide
Summary
This comprehensive manual provides detailed engineering specifications and precise dimensional outlines for the S2319H, S2319HN, and S2319NX product lines. It serves as an essential technical resource, covering nominal scale measurements and multi-view schematics critical for accurate design integration. Ideal for mechanical engineers, industrial equipment designers, and manufacturing procurement specialists who require highly reliable dimensional data to ensure seamless component compatibility and precision assembly in their projects.
Page 1 Text Content
Unit: mm(inch)

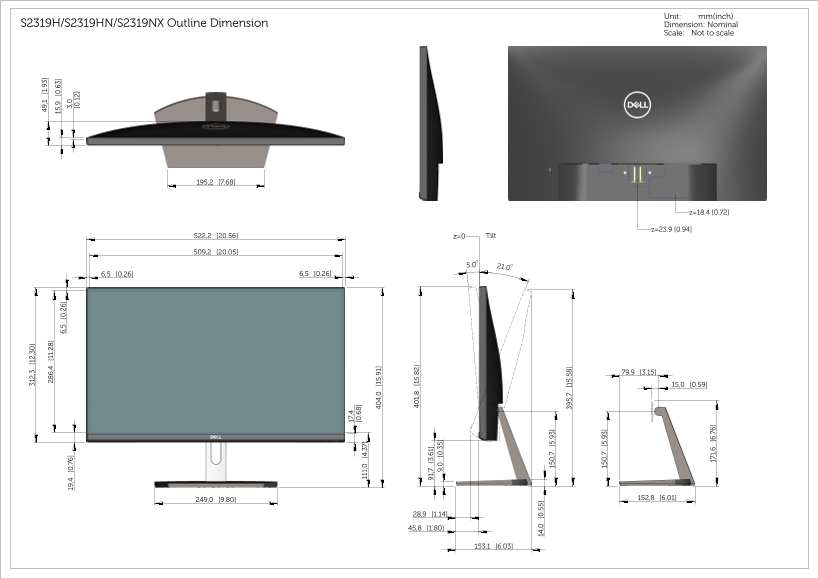

S2319H/S2319HN/S2319NX Outline Dimension Dimension: Nominal
,3 [1 .3 Scale: Not to scale
522,2 [20.56] z=0 Tilt
