Dell Multi Device Wireless Mouse MS5320W User'
Summary
This is the User's Guide for the Dell Multi-device Wireless Mouse MS5320W. The manual covers mouse features including multi-device pairing capabilities, top and bottom view diagrams, and Dell Peripheral Manager software integration. It includes setup instructions for installing batteries, pairing via USB dongle and Bluetooth, and connecting up to three devices simultaneously. The guide also provides troubleshooting steps and technical specifications. This manual is intended for end users who need to set up and configure their wireless mouse for use with multiple computers.
Page 1 Text Content
Dell Multi-device Wireless Mouse MS5320W
User’s Guide
Regulatory model: MS5320Wc/RG-1216
Page Summary Contents For Dell Multi Device Wireless Mouse MS5320W User'

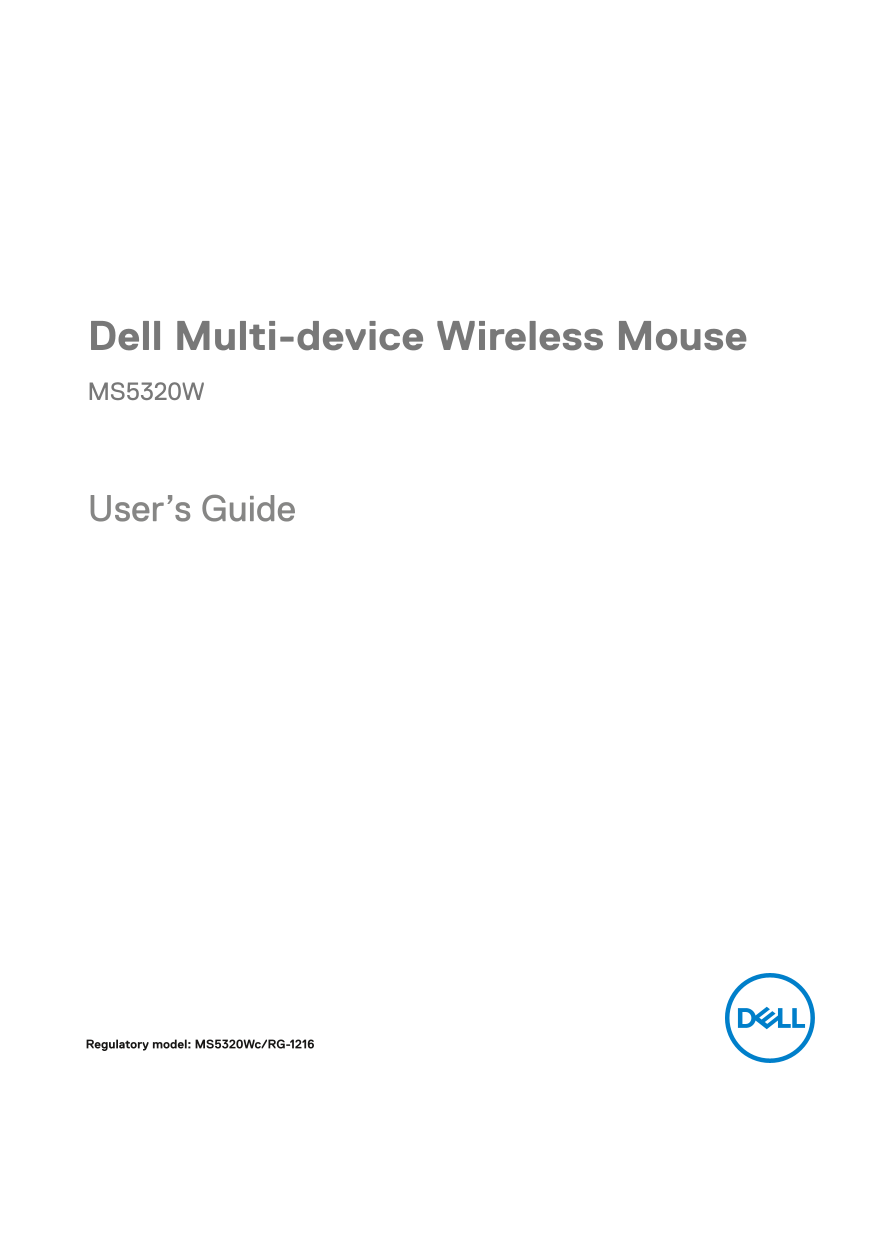

Page 1
Dell Multi-device Wireless Mouse MS5320W User’s Guide Regulatory model: MS5320Wc/RG-1216
Page 2
Notes, Caution, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if ...
Page 3
Contents What’s in the box . Features . Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . Top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Bottom view . . . . . . ...
Page 4
What’s in the box 1 Wireless mouse 3 Dongle 2 Documents 4 AA-type battery 4 │ What’s in the box
Page 5
Features Mouse Top view Left button 6 Connection-mode lights Right button • White LED Blinking: Device is not connected to computer Scroll wheel • LED Lighting Solid White: Device is connected to comp...
Page 6
Features Mouse Bottom view 1 Optical sensor 2 Power switch 6 │ Features
Page 7
Dell Peripheral Manager Dell Peripheral Manager software enables you to perform the following: Assign program shortcuts to device programmable buttons or keys through the Action tab. View device infor...
Page 8
Setting up your wireless mouse Installing the battery 1. Locate the slot on the side of the mouse cover. Using your fingertip, pry open the cover. 2. Remove the USB dongle from its compartment. 3. Ins...
Page 9
Setting up your wireless mouse 4. Replace the mouse cover. 5. Slide the power switch down to turn on the mouse. NOTE: Ensure that the distance between your computer and mouse is within ten meters. Set...
Page 10
Pairing your wireless mouse Your Dell wireless mouse can be paired with devices using USB and Bluetooth. You can pair and switch between a laptop, desktop, and a compatible mobile device. Pairing with...
Page 11
Pairing your mouse using Bluetooth You can connect up to two devices with your wireless mouse using Bluetooth. 1. Press the connection-mode button twice on your mouse (within 3 seconds) until the conn...
Page 12
NOTE: If Mouse MS5320W is not listed, ensure that the pairing mode is enabled on the mouse. 4. Confirm that the pairing process on both mouse and device. The second-Bluetooth connection light turns so...
Page 13
Pairing device three using Bluetooth NOTE: You can connect a third device to your wireless mouse using Bluetooth. 1. Press the connection-mode button twice on your mouse (within 3 seconds) until the c...
Page 14
NOTE: If Mouse MS5320W is not listed, ensure that the pairing mode is enabled on the mouse. The third-Bluetooth connection light turns solid white for 3 seconds to confirm the connection is establishe...
Page 15
Specifications General Mouse model number MS5320W Connection type 2.4 GHz Wireless & Bluetooth dual mode technology Supported operating systems • Windows 10/8/7/XP/ (2.4 GHz) • Server 2008/Server ...
Page 16
Troubleshooting Problems Possible causes Possible solutions Unable to use the The white LED indicator 1. Check if the battery is inserted correctly. mouse at top of the mouse does not light up when Ba...
Page 17
Problems Possible causes Possible solutions Unable to pair The Bluetooth icon on 1. Check the battery level. the mouse to the the computer does not • If the mouse uses a computer using light up when c...
Page 18
Problems Possible causes Possible solutions Mouse pointer The mouse pointer is not 1. Check the battery level. does not move responding If the mouse uses a rechargeable battery, ensure that the batter...
Page 19
Problems Possible causes Possible solutions Unable to pair the Wireless pairing error 2.Turn the mouse off, mouse with the message is received while and then turn it on again. computer pairing the mou...
Page 20
Statutory information Warranty Limited warranty and return policies Dell-branded products carry three-year limited hardware warranty. If purchased together with a Dell system, it will follow the syste...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 20 |
| File Size | 947.29 KB |
| Published | June 25, 2026 |
7 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I physically set up or power on the mouse?
Install AA batteries, replace the cover, and slide the power switch down to activate it.
What is the primary function of Dell Peripheral Manager software?
It allows you to assign program shortcuts, view device firmware/battery status, and pair additional devices.
How many devices can this wireless mouse handle concurrently?
The mouse can be paired with a laptop, desktop, and connect up to two additional Bluetooth-enabled mobile devices.
What should I do if my USB connection is unstable or losing power?
Avoid using port replicators or USB hubs; try changing the dongle into another USB port on your computer.
