Dell Inspiron 3580 Setup Guide and Specifications
Summary
A setup and specifications guide for the Dell Inspiron 3580 laptop (Regulatory Model P75F). The document covers initial setup procedures including connecting to a network, creating a USB recovery drive, and detailed views of the laptop's exterior features (right side, left side, base, display, and bottom). It provides comprehensive hardware specifications including processor, memory, storage, display, camera, audio, ports, communications, power adapter, battery, and dimensions. The target audience is home and office users purchasing the Dell Inspiron 3580 who need guidance on initial setup and reference for system specifications and port locations.
Page 1 Text Content
Inspiron 3580 Setup and Specifications
Regulatory Model: P75F Regulatory Type: P75F106
Page Summary Contents For Dell Inspiron 3580 Setup Guide and Specifications

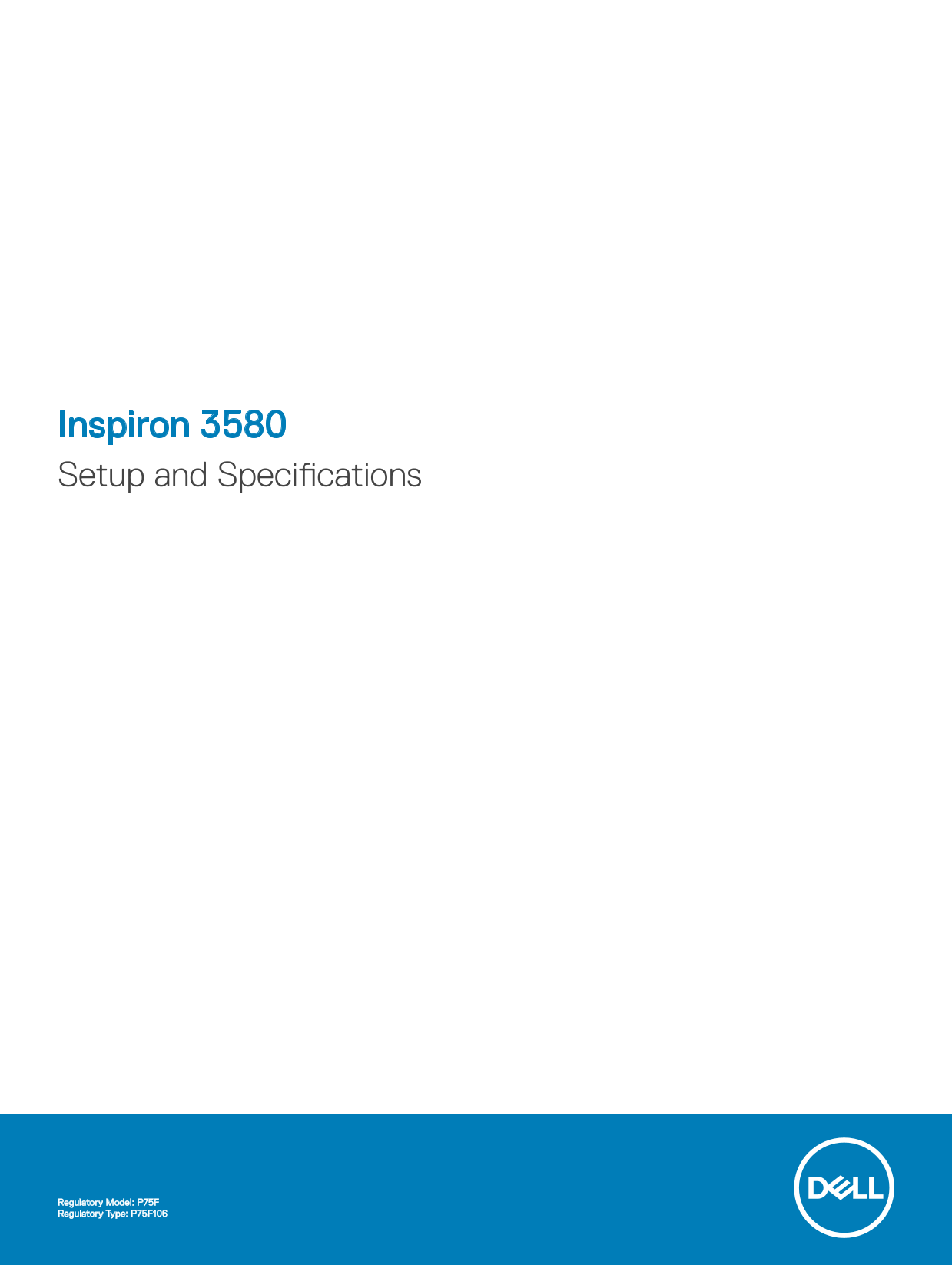

Page 1
Inspiron 3580 Setup and Specifications Regulatory Model: P75F Regulatory Type: P75F106
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Set up your Inspiron 3580.............................................................................................................................. 2 Create a USB recovery drive for Win...
Page 4
Set up your Inspiron 3580 NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1 Connect the power adapter and press the power button. NOTE: To c...
Page 5
Resources Description Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended ac...
Page 6
Create a USB recovery drive for Windows Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to c...
Page 7
Views of Inspiron 3580 SD-card slot Reads from and writes to the SD card. USB 2.0 port Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps. ...
Page 8
Headset port Connect headphones or a headset (headphone and microphone combo). Left-click area Press to left-click. Touchpad Move your finger on the touchpad to move the mouse pointer. Tap to left-cli...
Page 9
Display Camera Enables you to video chat, capture photos, and record videos. Camera-status light Turns on when the camera is in use. Microphone Provides digital sound input for audio recording, voice ...
Page 10
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Right speaker Provides a...
Page 11
Specifications of Inspiron 3580 Dimensions and weight Table 2. Dimensions and weight Description Values Height: 20.66 mm (0.81 in) Rear 22.70 mm (0.89 in) Width 380 mm (14.96 in.) Depth 258 mm (10.16 ...
Page 12
Chipset Table 4. Chipset Description Values Processor 8th Gen Intel Core i3 8th Gen Intel Core i5 8th Gen Intel Core i7 Chipset Integrated in the Integrated in the processor Integrated in the processo...
Page 13
Ports and connectors Table 6. Ports and connectors External: Network One RJ-45 port Two USB 3.1 Gen 1 ports One USB 2.0 port Audio One headset (headphone and microphone combo) port Video One HDMI 1.4 ...
Page 14
Wireless module Table 8. Wireless module specifications Description Values Model number Qualcomm QCA9565 Qualcomm QCA9377 Qualcomm Intel 9462 Intel 9560 (DW1707) (DW1810) QCA61x4A (DW1820) Transfer ra...
Page 15
Storage Table 10. Storage specifications Storage type Interface type Capacity Hard drive One 2.5-inch hard drive, SATA 3 500 GB (5400 RPM/7200 RPM) 1 TB (5400 RPM/7200 RPM) 2 TB (5400 RPM) Solid-state...
Page 16
Keyboard Table 13. Keyboard specifications Description Values Type Standard non-backlit keyboard Backlit keyboard Layout QWERTY Number of keys United States and Canada: 101 keys United Kingdom: 102 ke...
Page 17
Touchpad Table 15. Touchpad specifications Description Values Resolution: Horizontal Vertical Dimensions: Horizontal 105 mm (4.13 in.) Vertical 80 mm (3.15 in.) Touchpad gestures For more information ...
Page 18
Battery Table 17. Battery specifications Description Values Type 3-cell “smart” lithium-ion (42 WHr) Voltage 11.40 VDC Weight (maximum) 0.2 kg (0.44 lb) Dimensions: Height 5.90 mm (0.24 in.) Width 175...
Page 19
Description Values Height 344 mm (13.54 in.) Width 194 mm (7.64 in.) Diagonal 395 mm (15.55 in.) Native resolution 1366 x 768 (HD) 1920 x 1080 (FHD, optional) 1366 x 768 (HD touch, optional) 1920 x 10...
Page 20
Video Table 20. Video specifications Discrete graphics Controller External display support Memory size Memory type AMD Radeon 520 One HDMI port 2 GB GDDR5 Table 21. Video specifications Integrated gra...
Page 21
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your ...
Page 22
Table 24. List of keyboard shortcuts Function key Behavior Turn off/on wireless Pause/Break Sleep Toggle scroll lock Toggle between power and battery-status light/hard-drive activity light System requ...
Page 23
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 25. Self-help resources Self-help resources R...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 23 |
| File Size | 1.42 MB |
| Published | June 24, 2026 |
6 views
Enter the captcha to get the download link:
Frequently Asked Questions
How can I create a recovery drive for Windows?
Follow the instructions in section 2 to create a USB recovery drive for Windows.
Where can I find self-help resources for my Dell product?
You can visit www.dell.com for product info or use 'Contact Support' in Windows search.
What are the regulatory model and type for this device?
The regulatory model is P75F and the regulatory type is P75F106.
How do I troubleshoot or locate service information?
Go to www.dell.com/support to find troubleshooting, manuals, and specs.
