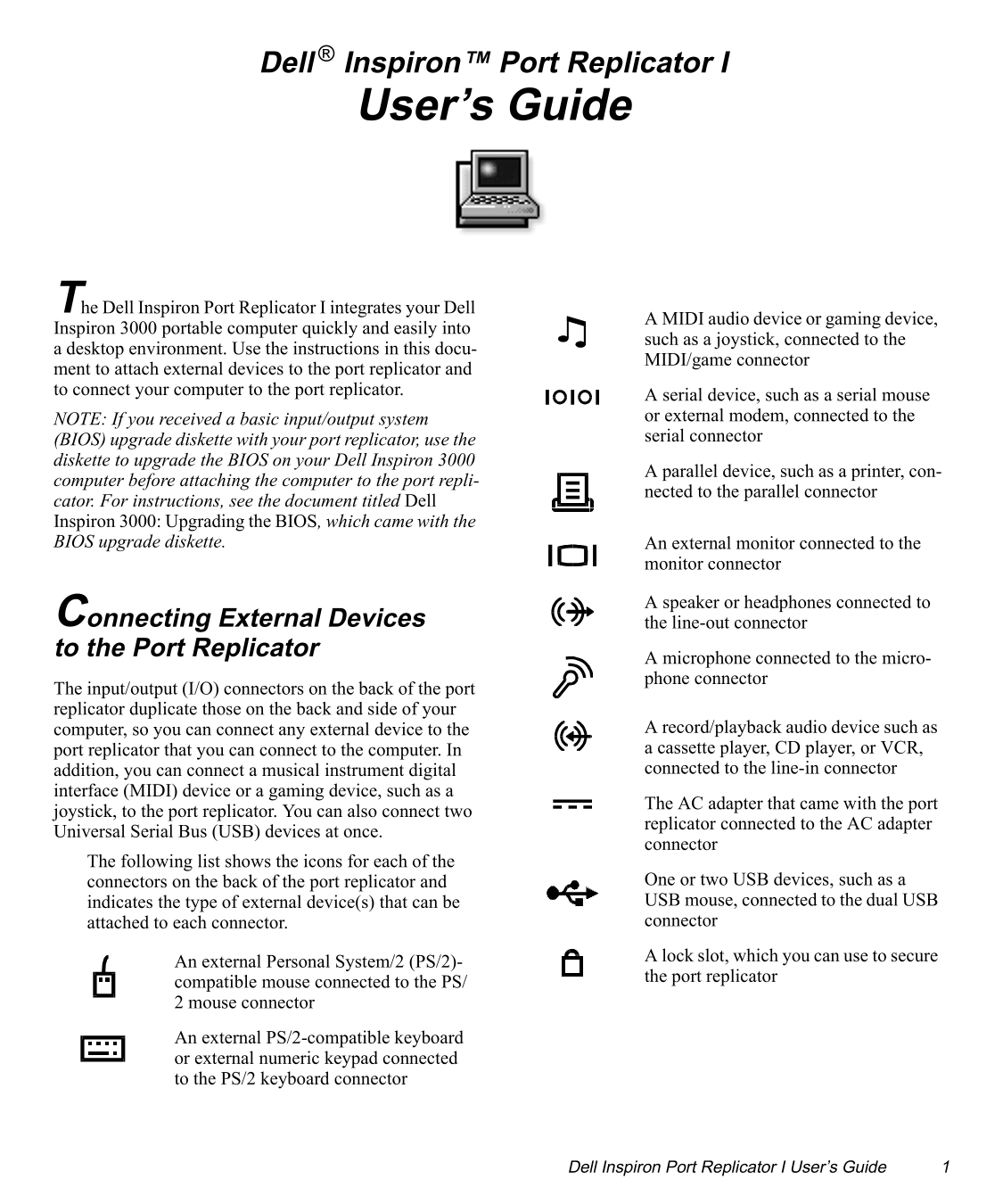

® Inspiron™ Port Replicator I Dell User’s Guide
The Dell Inspiron Port Replicator I integrates your Dell
A MIDI audio device or gaming device,
Inspiron 3000 portable computer quickly and easily into
such as a joystick, connected to the
a desktop environment. Use the instructions in this docu-
MIDI/game connector
ment to attach external devices to the port replicator and to connect your computer to the port replicator.
A serial device, such as a serial mouse NOTE: If you received a basic input/output system or external modem, connected to the (BIOS) upgrade diskette with your port replicator, use the serial connector
diskette to upgrade the BIOS on your Dell Inspiron 3000
A parallel device, such as a printer, con-
computer before attaching the computer to the port repli-
nected to the parallel connector
cator. For instructions, see the document titled Dell Inspiron 3000: Upgrading the BIOS, which came with the BIOS upgrade diskette. An external monitor connected to the
monitor connector
A speaker or headphones connected to
Connecting External Devices the line-out connector to the Port Replicator
A microphone connected to the micro- phone connector
The input/output (I/O) connectors on the back of the port replicator duplicate those on the back and side of your
computer, so you can connect any external device to the A record/playback audio device such as port replicator that you can connect to the computer. In a cassette player, CD player, or VCR, addition, you can connect a musical instrument digital connected to the line-in connector
interface (MIDI) device or a gaming device, such as a
The AC adapter that came with the port
joystick, to the port replicator. You can also connect two
replicator connected to the AC adapter
Universal Serial Bus (USB) devices at once.
connector
The following list shows the icons for each of the
connectors on the back of the port replicator and One or two USB devices, such as a indicates the type of external device(s) that can be USB mouse, connected to the dual USB attached to each connector. connector
A lock slot, which you can use to secure
An external Personal System/2 (PS/2)-
the port replicator
compatible mouse connected to the PS/ 2 mouse connector
An external PS/2-compatible keyboard or external numeric keypad connected to the PS/2 keyboard connector
