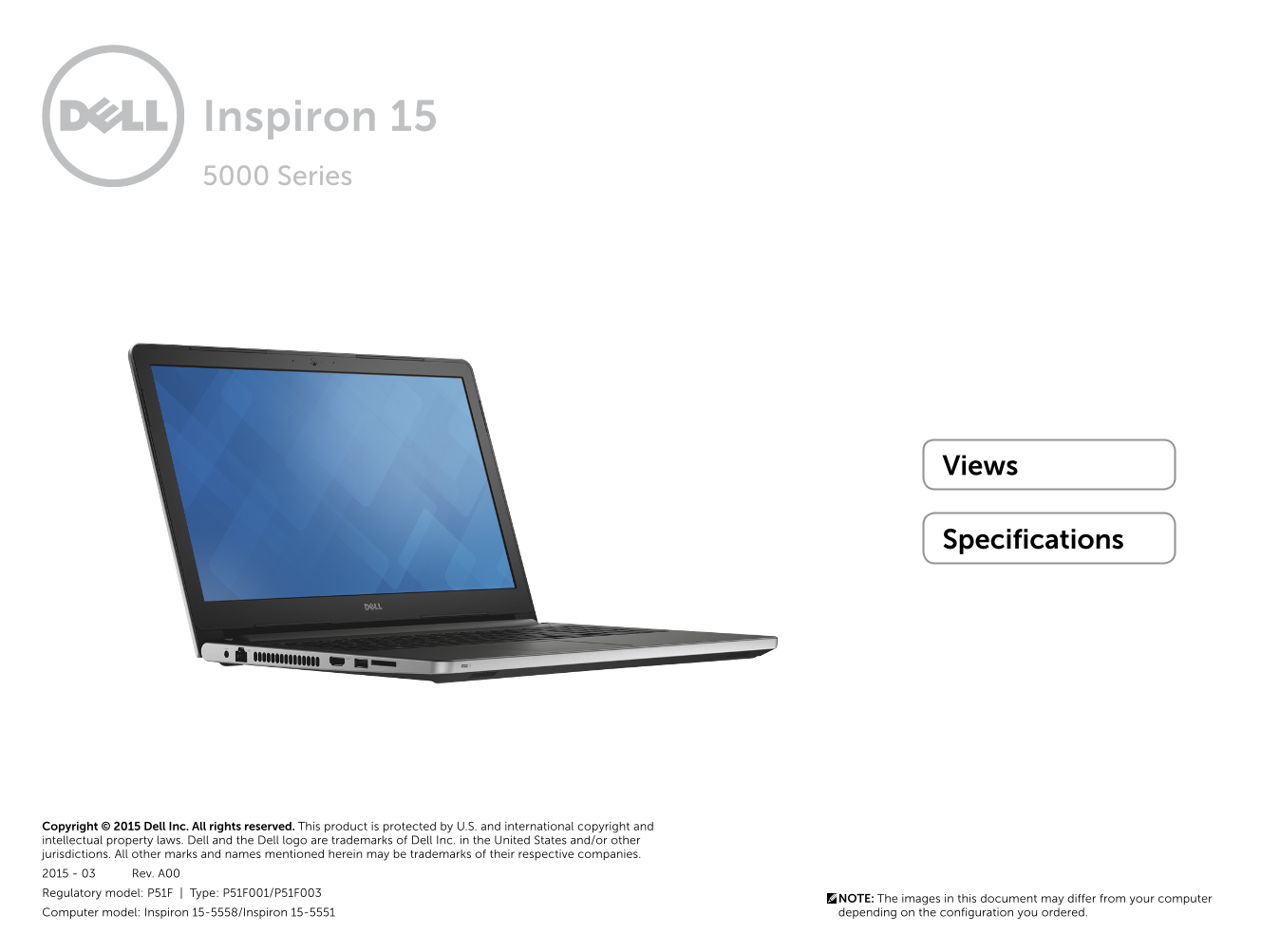

Page 1
Inspiron 15 5000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power and battery-status light/hard-drive activity light Indicates the power and battery‑charge status. Press Fn+H to toggle this light between hard‑drive activity light and batte...
Page 3
Views Specifications Power-adapter port HDMI port Connect a power adapter to provide power to your Connect a TV or another HDMI‑in enabled device. computer and charge the battery. Provides video and a...
Page 4
Views Specifications Headset port Optical drive Connect a headphone, a microphone, or a headphone Reads from and writes to CDs and DVDs. and microphone combo (headset). Security-cable slot USB 2.0 por...
Page 5
Views Specifications Left-click area Power button Press to left click. Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Touch pad Press to put the computer in ...
Page 6
Views Specifications Display Left microphone (Inspiron 15-5558 only) Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls,...
Page 7
Specifications Views Dimensions and weight Height: Touch 24.05 mm (0.95 in) Non‑touch 23.75 mm (0.94 in) Width 380 mm (14.96 in) Depth 260.40 mm (10.25 in) Weight (maximum): Touch 2.39 kg (5.27 lb) No...
Page 8
Specifications Views System information Computer model Inspiron 15-5558 Inspiron 15-5551 Processor Intel Celeron Dual Core Processor Intel Celeron Dual Core Processor Intel Pentium Quad Core Processor...
Page 9
Specifications Views Memory Inspiron 15-5558 Inspiron 15-5551 Slots Two SODIMM slots One SODIMM slot Type Dual‑channel DDR3L Single‑channel DDR3L Speed 1600 MHz 1600 MHz Configurations supported 2 GB,...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port (Inspiron 15‑5558 only) USB One USB 3.0 port Two USB 2.0 ports Audio/video One HDMI port One headphone and microphone combo (h...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11ac Wi‑Fi 802.11b/g/n Bluetooth 4.0 Intel Wi Di (Windows only) Dimensions an...
Page 12
Specifications Views Video Inspiron 15-5558 Inspiron 15-5551 Controller: Integrated Intel HD Graphics Intel HD Graphics Intel HD Graphics 4400 Intel HD Graphics 5500 Discrete NVIDIA Ge Force 920M N/A ...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.2 W Microphone Single microphone (Inspiron 15‑5551 only) Digital array‑micro...
Page 14
Specifications Views Storage Interface SATA 3 Gbps (Inspiron 15‑5551 only) SATA 6 Gbps (Inspiron 15‑5558 only) Hard drive One 2.5‑inch drive (supports Intel Smart Response Technology) Optical drive On...
Page 15
Specifications Views Media-card reader Type One SD card slot Cards supported SD card Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media‑card ...
Page 16
Specifications Views Display Type 15.6‑inch HD Touch 15.6‑inch HD Non‑touch 15.6‑inch FHD Non‑touch (Inspiron 15‑5558 only) 15.6‑inch FHD Touch (Inspiron 15‑5558 only) Refresh rate 60 Hz Operating ang...
Page 17
Specifications Views Keyboard Type Standard keyboard Backlit keyboard (optional) Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters ...
Page 18
Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Sleep Increase volume Toggle Fn‑key lock Toggle between power and Play previous track/chapter battery‑status light/hard‑drive act...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 20
Specifications Views Touch pad Resolution: Horizontal 1211 dpi Vertical 1267 dpi Dimensions: Width 105 mm (4.13 in) Height 80 mm (3.15 in) Dimensions and System Ports and Memory Communications Video A...
Page 21
Specifications Views Battery Type 4 cell “smart” lithium ion (40 WHr) 4 cell “smart” lithium ion (47 WHr) Dimensions: Width 270 mm (10.63 in) Depth 37.5 mm (1.48 in) Height 20 mm (0.79 in) Weight (max...
Page 22
Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum): 45 W 1.30 A 65 W 1.60 A/1.70 A Output current (maximum): 45 W 2.31 A 65 ...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
