Dell Inspiron 15 3555 Specifications
Summary
Dell Inspiron 15 3000 Series specifications and views guide for model Inspiron 15-3555 with regulatory model P47F (Type P47F005). Details front, left, and right panel views including battery-status light indicators (solid white for AC with >5% charge, amber for battery <5% charge, off for fully charged or sleep/hibernate/off states), power-adapter port, HDMI port, and Fn+H hotkey to toggle between power/battery-status light and hard-drive activity light. Published December 2015, Rev. A00.
Page 1 Text Content
Inspiron 15 3000 Series
Views
Specifications
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies. 2015 ‑ 12 Rev. A00 Regulatory model: P47F | Type: P47F005
NOTE: The images in this document may differ from your computer
Computer model: Inspiron 15‑3555 depending on the configuration you ordered.
Page Summary Contents For Dell Inspiron 15 3555 Specifications

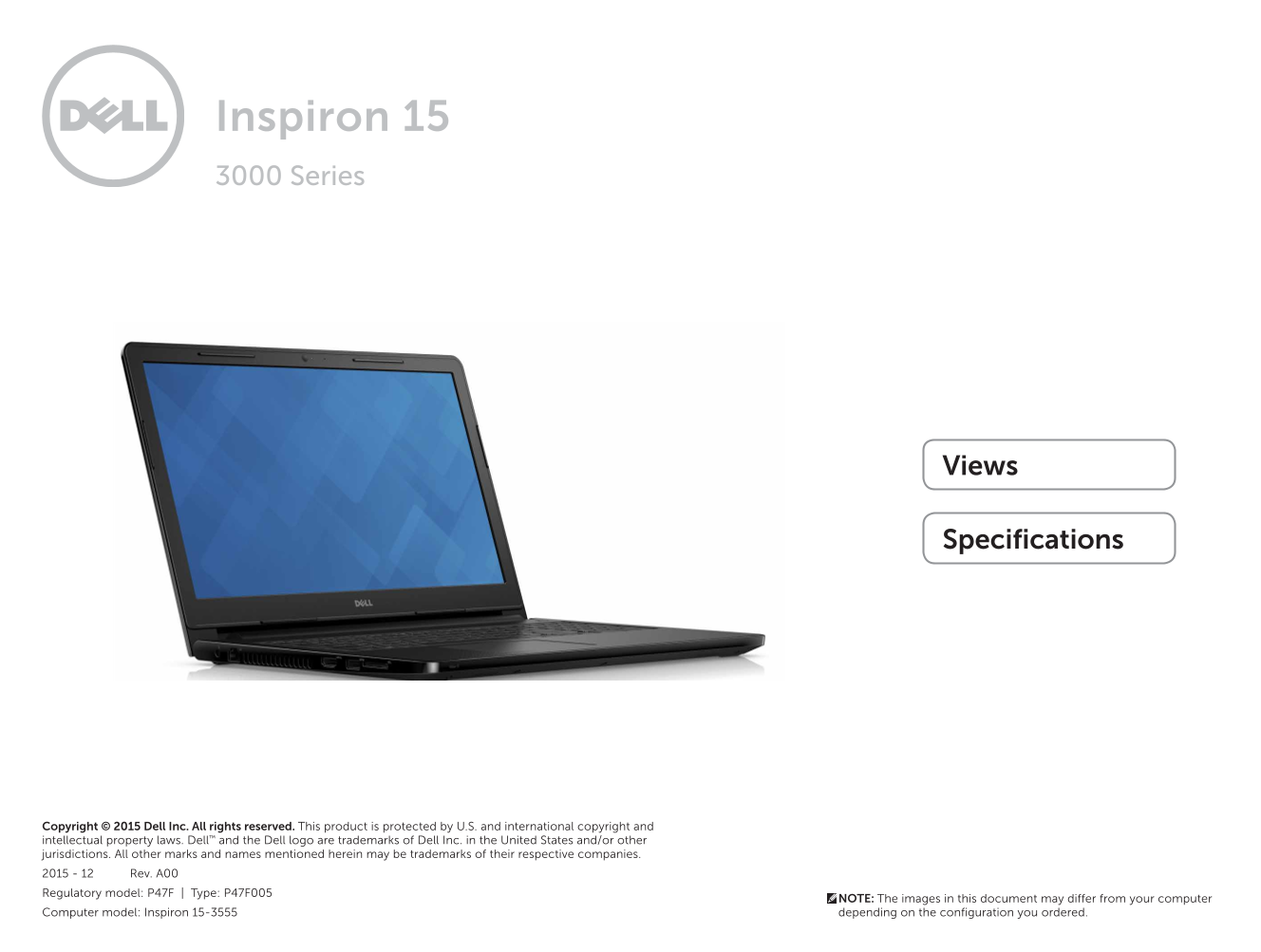

Page 1
Inspiron 15 3000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the...
Page 2
Views Specifications Power and battery-status light/hard-drive Battery-status light activity light Indicates the battery status. Indicates the battery‑charge status or the hard‑drive activity. Solid w...
Page 3
Views Specifications Power-adapter port HDMI port Connect a power adapter to provide power to your Connect a TV or another HDMI‑in enabled device. computer and charge the battery. Provides video and a...
Page 4
Views Specifications Headset port Optical drive Connect a headphone, a microphone, or a headset Reads from and writes to CDs and DVDs. (headphone and microphone combo). Security-cable slot USB 2.0 por...
Page 5
Views Specifications Power button Right-click area Press to turn on the computer if it is turned off or in Press to right‑click. sleep state. Touch pad Press to put the computer in sleep state if it i...
Page 6
Views Specifications Display Camera Microphone Allows you to video chat, capture photos, and record Provides digital sound input for audio recording, voice videos. calls, and so on. Camera-status ligh...
Page 7
Specifications Views Dimensions and weight Height 23.65 mm (0.93 in) Width 380 mm (14.96 in) Depth 260.30 mm (10.25 in) Weight (maximum) 2.40 kg (5.29 lb) NOTE: The weight of your laptop varies depend...
Page 8
Specifications Views System information Computer model Inspiron 15‑3555 Processor • AMD E1‑6010 APU with Radeon R2 Graphics • AMD E2‑6110 APU with Radeon R2 Graphics • AMD A6‑6310 APU with Radeon R4 G...
Page 9
Specifications Views Memory Slots Two SODIMM slots Type Single‑channel DDR3L Speed 1333MHz and 1600 MHz Configurations supported 2 GB, 4 GB, 6 GB, and 8 GB Dimensions and System Ports and Memory Commu...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port USB • Two USB 2.0 ports • One USB 3.0 port Audio/video • One HDMI port • One headset (headphone and microphone combo) port Int...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11ac • Wi‑Fi 802.11b/g/n • Bluetooth 4.0 Dimensions and System Ports and Me...
Page 12
Specifications Views Video Controller Integrated in processor Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2.0 W Peak 2.5 W Microphone Single digital microphone in the camera assembly Volume con...
Page 14
Specifications Views Storage Interface SATA 1.5 Gbps Hard drive One 2.5‑inch drive Optical drive One 9.5‑mm DVD +/‑ RW drive Dimensions and System Ports and Memory Communications Video Audio Storage w...
Page 15
Specifications Views Media-card reader Type One SD card slot Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboar...
Page 16
Specifications Views Display Type • 15.6‑inch with Truelife touch screen • 15.6‑inch with Truelife non‑touch screen Resolution (maximum) 1366 x 768 Dimensions: Height 223.06 mm (8.86 in) Width 366.63 ...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Pause/Break Increase volume Sleep Play previous track/chapter Toggle scroll lock Play/Pause Toggle Fn‑key lock Toggle between pow...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 20
Specifications Views Touch pad Resolution: Horizontal Vertical Dimensions: Width 105 mm (4.13 in) Height 65 mm (2.56 in) Dimensions and System Ports and Memory Communications Video Audio Storage weigh...
Page 21
Specifications Views Battery Type • 4‑cell 40 WHr smart lithium • 4‑cell 47 WHr smart lithium Dimensions: Width 20 mm (0.79 in) Depth 270 mm (10.63 in) Height 37.50 mm (1.48 in) Weight (maximum) 0.25 ...
Page 22
Specifications Views Power adapter Type • 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.30 A/1.60 A/1.70 A Output current 2.31 A/3.34 A Rated output voltage 19.50 VDC ...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
