Page 1

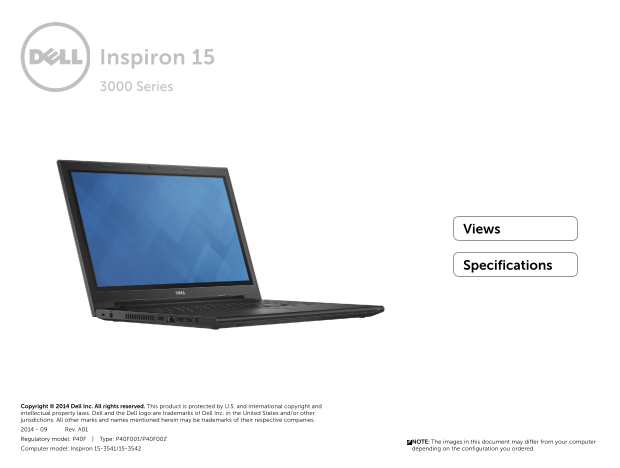

Inspiron 15 3000 Series Views Specifications Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power and battery‑status light Indicates the power and battery status of the computer. White Battery is getting charged. Amber Battery is low or critical. Off Computer is plugged ...
Page 3
Views Specifications Security‑cable slot USB 2.0 port Connect a security cable to prevent unauthorized Connect peripherals such as storage devices, printers, movement of your computer. and so on. Prov...
Page 4
Views Specifications Media‑card reader Optical drive Reads from and writes to media cards. Reads from and writes to CDs and DVDs. USB 2.0 port Connect peripherals such as storage devices, printers, an...
Page 5
Views Specifications Left‑click area Power button Tap to left‑click. Press to turn on the computer if it is turned off or in sleep state. Touchpad Press to put the computer in sleep state if it is tur...
Page 6
Views Specifications Display Microphone Camera‑status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Camera Allows you...
Page 7
Specifications Views Dimensions and Weight Height: Touchscreen 26.6 mm (1.05 in) Non‑touchscreen 25.6 mm (1.01 in) Width 381.4 mm (15.02 in) Depth 267.6 mm (10.54 in) Weight (maximum): Touchscreen 2.5...
Page 8
Specifications Views System Information Computer model Inspiron 15‑3541/15‑3542 Processor Inspiron 15‑3541 Inspiron 15‑3542 AMD E1‑6010 4th Generation Intel Core i7 AMD E2‑6110 4th Generation Intel Co...
Page 9
Specifications Views Memory Slot One SODIMM slot Type DDR3L Speed Up to 1600 MHz Configurations supported 2 GB, 4 GB, and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB Two USB 2.0 ports One USB 3.0 port HDMI One HDMI‑out port Audio One headset port Internal: Mini Card One half Mini Card sl...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11 b/g/n Bluetooth 4.0 Wireless Display (optional) Dimensions and System Port...
Page 12
Specifications Views Video Inspiron 15‑3541 Inspiron 15‑3542 Controller: Integrated AMD Radeon R4 Graphics for Intel HD Graphics 4400 for AMD A6 Quad Core Intel Core i7, Intel Core i5, and Intel Core ...
Page 13
Specifications Views Audio Controller: Intel Realtek ALC3234 with Waves Maxx Voice AMD Realtek ALC3223 with Waves Maxx Voice Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Digital micr...
Page 14
Specifications Views Storage Interface SATA 6 Gbps for hard drive SATA 3 Gbps for optical drive Hard drive One 2.5‑in drive (supports Intel Smart Response Technology) Optical drive One 9.5 mm DVD+/‑RW...
Page 15
Specifications Views Media‑Card Reader Type One slot Cards supported SD card Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer...
Page 16
Specifications Views Display Type 15.6‑in HD touchscreen 15.6‑in HD non‑touchscreen Resolution (maximum) 1366 x 768 Dimensions: Height 225.06 mm (8.86 in) Width 366.63 mm (14.43 in) Diagonal 396.24 mm...
Page 17
Specifications Views Keyboard Type Standard keyboard Backlit keyboard (optional) Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters ...
Page 18
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 19
Specifications Views Touchpad Resolution: Horizontal 1207 dpi Vertical 1702 dpi Dimensions: Width 102.4 mm (4.03 in) Height 57.4 mm (2.26 in) Dimensions and System Ports and Memory Communications Vide...
Page 20
Specifications Views Battery Type 4‑cell “smart” lithium ion (40 WHr) Dimensions: Height 20 mm (0.79 in) Width 272.4 mm (10.72 in) Depth 46.3 mm (1.82 in) Weight (maximum) 0.26 kg (0.57 lb) Voltage 14...
Page 21
Specifications Views Power Adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.50 A/1.60 A/1.70 A/2.50 A Output current (continuous) 3.34 A Rated outp...
Page 22
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 40°C (32°F to 104°F) –40°C to 65°C (–40°F to 149°F) Rel...
