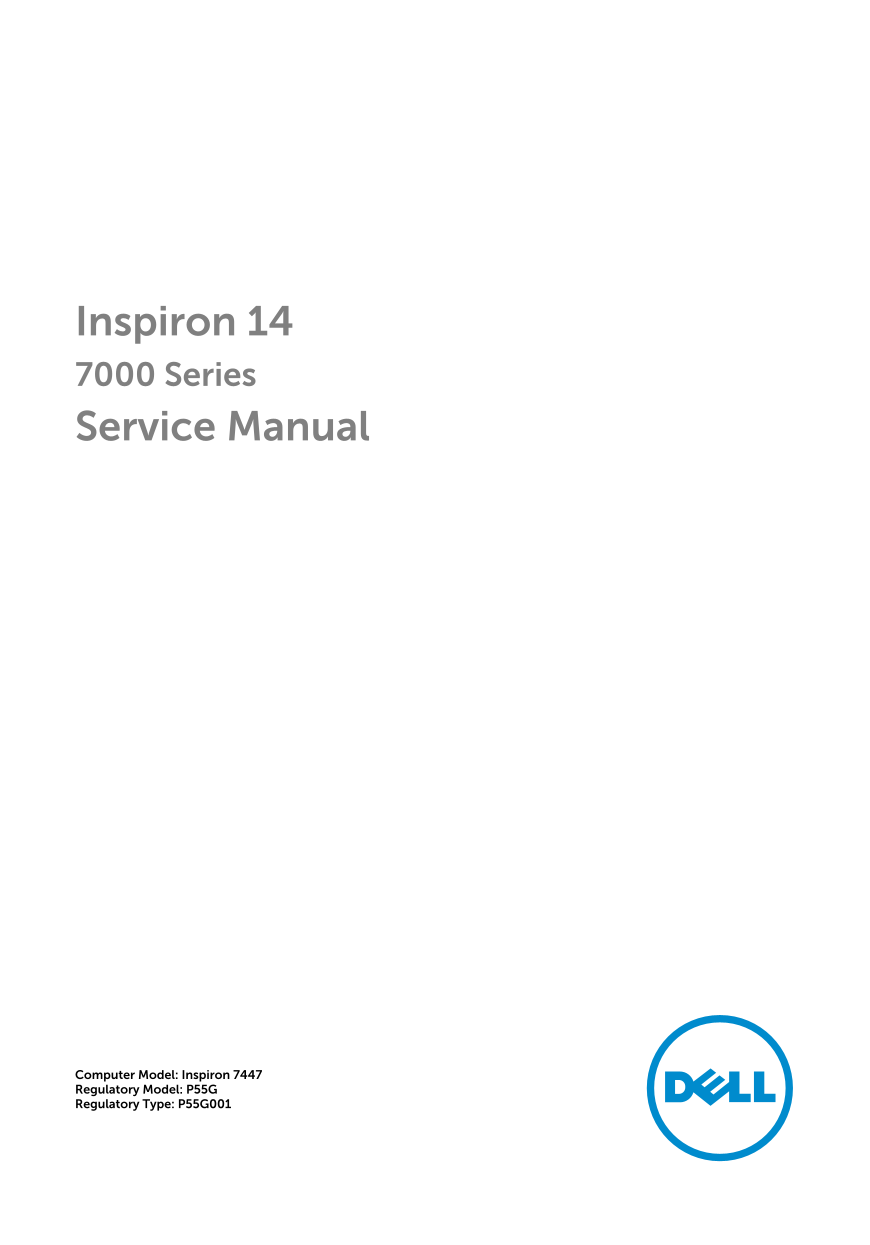

Inspiron 14 7000 Series Service Manual
Computer Model: Inspiron 7447 Regulatory Model: P55G Regulatory Type: P55G001
Page Summary Contents For Dell Inspiron 14 7447 Service Manual
Page 1
Inspiron 14 7000 Series Service Manual Computer Model: Inspiron 7447 Regulatory Model: P55G Regulatory Type: P55G001
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before Working Inside Your Computer...................................9 Before You Begin .............................................................................................. Safety ...
Page 4
Removing the Memory Module(s).......................................... Prerequisites.....................................................................................................22 Procedure.....
Page 5
Removing the Palm Rest..........................................................40 Prerequisites.................................................................................................... Pro...
Page 6
Removing the System Board................................................... Prerequisites.....................................................................................................55 Proced...
Page 7
Removing the Display Bezel.................................................... Prerequisites..................................................................................................... Proced...
Page 8
Removing the Speakers............................................................85 Prerequisites.....................................................................................................85...
Page 9
Before Working Inside Your Computer CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts. NOTE: The images in this document may differ f...
Page 10
WARNING: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the power s...
Page 11
Recommended Tools The procedures in this document may require the following tools: Philips screwdriver Plastic scribe
Page 12
After Working Inside Your Computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and make sure that no stray screws remain inside ...
Page 13
Removing the Battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After workin...
Page 14
Replacing the Battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After worki...
Page 15
2 Press the battery down until it snaps into place. battery computer base 3 Turn the computer over and open the display as far as possible.
Page 16
Removing the Base Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wor...
Page 17
Replacing the Base Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wo...
Page 18
Removing the Optical Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After ...
Page 19
2 Using your fingertips, slide the optical-drive assembly out of the optical- drive bay. optical-drive assembly screw 3 Carefully pull the optical-drive bezel and remove it from the optical drive.
Page 20
4 Remove the screw that secures the optical-drive bracket to the optical- drive assembly and remove the optical-drive bracket. optical-drive bezel optical drive optical-drive bracket screw
Page 21
Replacing the Optical Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After...
Page 22
Removing the Memory Module(s) WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. Aft...
Page 23
2 Slide and remove the memory module from the memory-module slot. securing clips (2) memory-module slot memory module
Page 24
Replacing the Memory Module(s) WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. Af...
Page 25
2 Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it. m...
Page 26
Removing the Hard Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wor...
Page 27
3 Gently lift the hard-drive assembly out of the computer base. pull-tab hard-drive assembly screws (4) 4 Disconnect the interposer from the hard drive. 5 Remove the screws that secure the hard-drive ...
Page 28
6 Lift the hard drive out of the hard-drive bracket. screws (4) interposer hard-drive bracket hard drive
Page 29
Replacing the Hard Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After wo...
Page 30
Removing the Keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After worki...
Page 31
3 Turn the keyboard over and place it on the palm rest. plastic scribe keyboard tabs (5)
Page 32
4 Lift the latches and disconnect the keyboard cable and the keyboard- backlight cable from the system board. keyboard cable latches (2) keyboard-backlight cable keyboard 5 Lift the keyboard off the p...
Page 33
Replacing the Keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After work...
Page 34
NOTE: Keyboard-backlight cable is present only on a backlit-keyboard. 1 Place the keyboard on a flat and clean surface. keyboard cable keyboard keyboard-backlight cable
Page 35
2 Gently fold the keyboard-backlight cable till the edge of the keyboard cable as shown in the image. keyboard cable keyboard-backlight cable
Page 36
3 Gently fold the keyboard cable with the end aligned at the fold line as shown in the image. keyboard cable keyboard-backlight cable fold line keyboard cable keyboard keyboard-backlight cable
Page 37
Removing the Wireless Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After ...
Page 38
3 Slide and remove the wireless card out of the wireless-card slot. wireless-card slot antenna cables (2) wireless card screw
Page 39
Replacing the Wireless Card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After...
Page 40
Removing the Palm Rest WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After work...
