Dell EMC PowerVault ME4 Series and Microsoft Hyper-V User's Guide and Manual
Summary
This best practices guide covers optimal configuration of Microsoft Hyper-V with Dell EMC PowerVault ME4 Series storage arrays. It details storage provisioning, host settings, and multipathing recommendations for Hyper-V deployments. Intended for storage administrators and virtualization engineers deploying ME4 Series arrays, the document includes firmware, driver, and Windows Server settings for balanced performance and reliability.
Page 1 Text Content

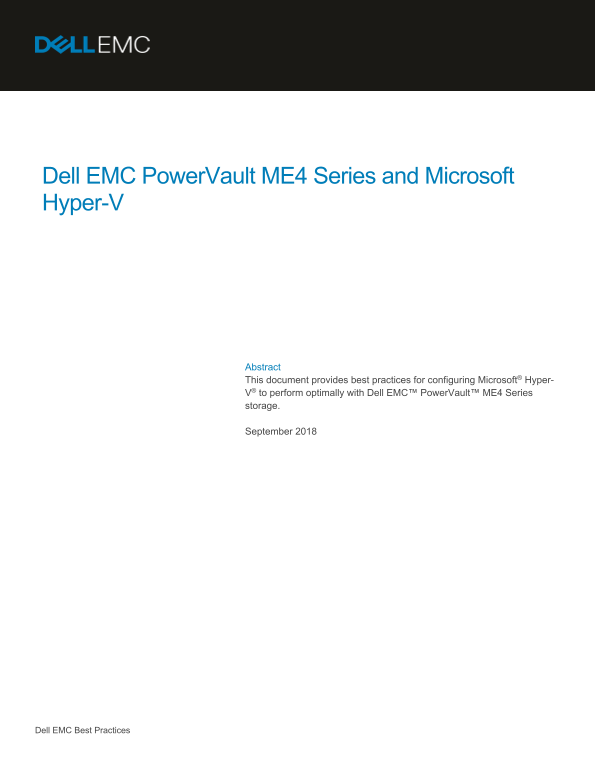

Dell EMC Power Vault ME4 Series and Microsoft Hyper-V
Abstract This document provides best practices for configuring Microsoft® Hyper- V® to perform optimally with Dell EMC™ Power Vault™ ME4 Series storage.
September 2018
Dell EMC Best Practices
Page Summary Contents For Dell EMC PowerVault ME4 Series and Microsoft Hyper-V User's Guide and Manual
Page 1
Dell EMC Power Vault ME4 Series and Microsoft Hyper-V Abstract This document provides best practices for configuring Microsoft® Hyper- V® to perform optimally with Dell EMC™ Power Vault™ ME4 Series st...
Page 2
Revisions Revisions Date Description September 2018 Initial release Acknowledgements Author: Marty Glaser The information in this publication is provided “as is.” Dell Inc. makes no representations or...
Page 3
Table of contents Table of contents Revisions..............................................................................................................................................................
Page 4
Executive summary Executive summary This document provides best practices for deploying Microsoft® Windows Server® Hyper-V® based solutions with Dell EMC™ Power Vault™ ME4 Series storage systems. It b...
Page 5
Introduction 1 Introduction Microsoft Hyper-V and Dell EMC Power Vault ME4 Series storage are feature-rich solutions that together present a diverse range of configuration options to solve key busines...
Page 6
Introduction • Support for mixed transport environments (FC and i SCSI) • Up to nine back-end (BE) expansion enclosures can be added to each ME4 Series array with 12Gb SAS to expand drive capacity • S...
Page 7
Introduction the default queue-depth setting works well for most hosts in a SAN environment. However, increasing the queue depth for a large sequential workload running on a small number of hosts migh...
Page 8
Design best practices 2 Design best practices This section provides guidance on sizing and configuration options for ME4 Series storage and Hyper-V. 2.1 Right-size the storage array Before deploying a...
Page 9
Design best practices From the perspective of Hyper-V, any of the available configurations is supported. Choosing the best type of disk group and RAID option is a function of the workload running on H...
Page 10
Design best practices Hyper-V hosts, nodes, and clusters support all the above configuration options. Consider the following recommendations: • If a Hyper-V environment is likely to scale beyond four ...
Page 11
Administration best practices 3 Administration best practices 3.1 Guest integration services Guest integration services are a package of virtualization-aware drivers that are installed on a guest VM t...
Page 12
Administration best practices For versions of Hyper-V prior to 2016, use Hyper-V Manager to connect to a VM. Under the Action menu, mount the Integration Services Setup Disk (an ISO file), and follow ...
Page 13
Administration best practices Verification can also be performed using Power Shell, as shown in the following example: PS C:\Windows\system32> get-VM | Select-Object name, integrationservicesversio...
Page 14
Administration best practices 3.2.1 Convert VMs to a newer generation Note the warning message in Figure 7 that the VM generation cannot be changed once a VM has been created. However, it is now possi...
Page 15
Administration best practices 3.3.2 Virtual hard disk type In addition to the format, a virtual hard disk can be designated as fixed, dynamically expanding, or differencing. Virtual hard disk type opt...
Page 16
Administration best practices There are some performance and management best practices to keep in mind when choosing the right kind of virtual hard disk type for your environment. • Fixed-size virtual...
Page 17
Administration best practices 3.3.3 Virtual hard disks and thin provisioning with ME4 Series arrays It does not matter which type of virtual hard disk is used to in order maximize the space utilizatio...
Page 18
Administration best practices To mitigate risks, consider the following recommendations: • Create a Hyper-V physical host volume that is large enough so that current and future expanding dynamic virtu...
Page 19
Administration best practices 3.4.2 Mixed transports There is limited Microsoft support for using mixed transports to present an ME4 Series LUN to a Windows Server Hyper-V host or cluster node, and th...
Page 20
Administration best practices Note the following: • The active/optimized paths are associated with the ME4 Series storage controller head that owns the volume. The active/unoptimized paths are associa...
Page 21
Administration best practices There are also disadvantages to using direct-attached storage for guest VMs: • The ability to perform native Hyper-V snapshots is lost. However, the ability to leverage M...
Page 22
Administration best practices Some advantages for a many-to-one strategy include the following: • Fewer ME4 Series array volumes to create and administer (avoids volume sprawl) • Quicker VM deployment...
Page 23
Administration best practices 3.7 Placement of Active Directory domain controllers It is a best practice to avoid configuring a Microsoft Active Directory® (AD) domain controller as a Hyper-V guest VM...
Page 24
Administration best practices hosts all competing for a few target ports, increasing the queue depth on a few hosts might overdrive the target ports and negatively impact the performance of all connec...
Page 25
ME4 Series snapshots with Hyper-V 4 ME4 Series snapshots with Hyper-V ME4 Series snapshots can be used to protect Hyper-V workloads. They are space-efficient snapshots, meaning they consume no additio...
Page 26
ME4 Series snapshots with Hyper-V Option 2: Map a snapshot containing the VM configuration and virtual hard disks to the host as a new volume, in a side-by-side fashion using a new drive letter or mou...
Page 27
ME4 Series snapshots with Hyper-V Option 2: Map the recovery volume to another Windows host outside of the cluster and use Diskpart.exe or Power Shell to change the disk ID. Once the ID has been chang...
Page 28
ME4 Series snapshots with Hyper-V The new disk (Disk 3 in this example) should now be listed. Usually, the bottom disk will be the one most recently added. 10. Type select disk # (# represents the num...
Page 29
ME4 Series snapshots with Hyper-V 4.3 Create test environment with ME4 Series snapshots In addition to VM recovery, ME4 Series snapshots can be used to quickly create test or development environments ...
Page 30
