Dell DELLB001A Product Overview and Specifications
Summary
Product overview for Dell Basic Rack PDU model DELLB001A. Features six C13 and twelve C19 outlets with 60A IEC 60309 input at 200-240VAC. Details electrical specs, current ratings, 83.1A total capacity, dimensions, weight, and environmental ranges. Available in four languages. For data center facility managers deploying rack equipment requiring reliable power distribution.
Page 1 Text Content

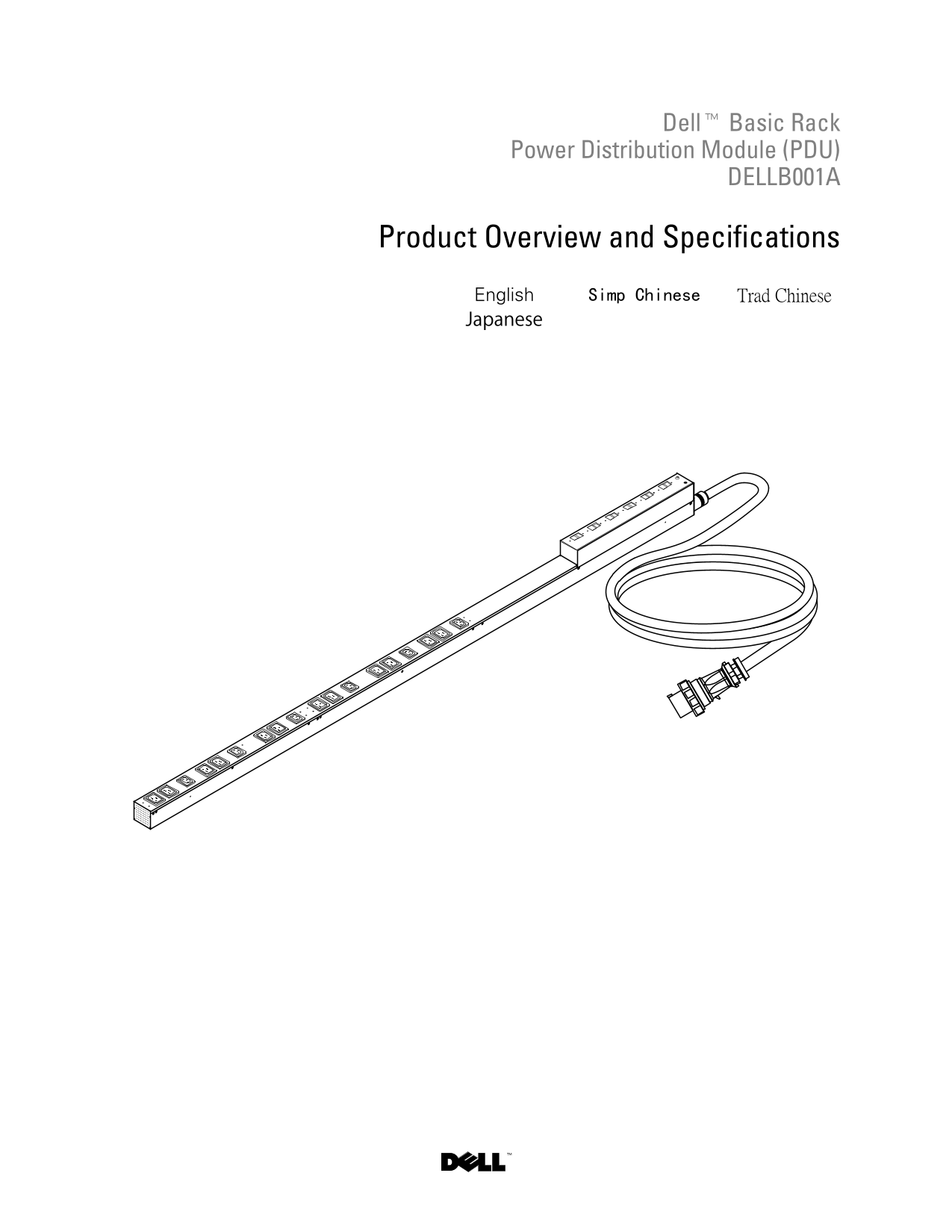

Dell Basic Rack
Power Distribution Module (PDU)
DELLB001A
Product Overview and Specifications English Simp Chinese Trad Chinese
Japanese
Page Summary Contents For Dell DELLB001A Product Overview and Specifications
Manual Details
| Brand | Dell |
|---|---|
| Pages | 9 |
| File Size | 305.37 KB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the available outlet types and maximum limits?
It provides 6 IEC 320-C13 outlets (15 A max) and 12 IEC 320-C19 outlets (20 A max).
What is the maximum total output current rating of the PDU?
The maximum total output current for all outlets combined is 83.1 A.
What input voltage range and current does this unit support?
It accepts an input voltage of 200–240 VAC ± 10% and has a maximum phase current of 60 A (or 48 A UL(C-UL) derated).
Can the Dell PDU operate in high temperature or humidity environments?
It operates best at temperatures from 0 to 50°C (32 to 122°F) and relative humidity of 5 to 95% non-condensing.
